Go Power Solar Extreme 485 Watt Solar and Inverter Charging Systems
Couldn't load pickup availability
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
MODEL: SOLAR EXTREME
The Solar Extreme is Go Power!'s largerst solar and inverter system on the market. This system will produce enough power to run up to 3000 watts of appliances or electronics at a time and depending on your exposure to the sun, top up your battery bank at a rate of 27 A-Hr. As a bonus, our team has included a smart converter charger and transfer switch package to work seamlessly with our solar modules and power inverter. This package provides you charging flexibility between the sun and shore power, as well as the ability to connect power to your 120 volt outlets. A SOLAR EXTREME system will provide you will all of the comforts of home and allow you to be truly 'off the grid'.

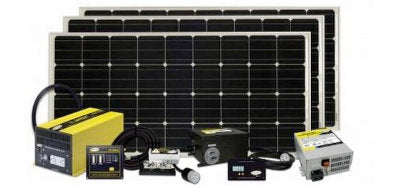

Included in System:
-
160 watt solar charging kit + 2 x 160 watt expansion kits (GP-RV-160 + GP-RV-160E)
-
3000 watt pure sine wave inverter for AC power (GP-SW3000-12)
-
30 amp pulse width modulated digital solar controller (GP-PWM-30)
-
75 amp smart battery charger (GPC-75-MAX)
-
30 amp pre-wired automatic shore power/inverter AC switching kit (GP-TS)
-
DC inverter install kit (GP-DC-KIT5)
-
Inverter Remote on/off (GP-SWR-B)
Please note: Due to the way this item ships it is impossible to calculate shipping online. When ordering this item the shipping added to your total is an estimate only. If you order this item through our web site we will contact you to arrange for the adjustment (if any) to your shipping cost.
Features and Benefits:
-
Three high-effeciency solar modules with simple install MC4 connectors and tempered glass to withstand hail and light debris
-
Includes everything for a simple installation: all mounting hardware, cables, large gauge fuse kit and AC power remote
-
Largest pure sine wave inverter provides household AC power to run many loads as well as sensitive electronics (use calculator to determine max load)
-
Digital pulse width modulated (PWM) solar controller regulates the battery charging system by maintaing (or topping up) the charge as well as preventing over-charging and damage to the battery
-
Smart battery converter charger allows a user to charge the battery through shore power using multiple stage charging options and various battery types
-
30 amp transfer switch allows for 2 sources of AC power to be hardwired into the breaker panel (shore and inverter/battery power)
Specifications
Solar Modules and Controller
| Solar cell type | Monocrystalline |
|
Output power
|
485 W |
|
Rated current
|
27.4A |
|
Rated DC voltage
|
17.5 V
|
| Module efficiency | 17.8% |
| Connectivity | MC4 connectors |
| Solar controller | 30A PWM, multi battery option, 4 stage charging, digital display and flush mount |
| Frame type | Silver anodized aluminum frame |
| Certifications | CE |
| Dimensions (each) | 58.3 x 26.5 x 1.38 in / 1482 x 674 x 35 mm |
|
Weight (each)
|
24.5 lb / 11 kg
|
|
Warranty
|
25 years (module) / 5 years (controller)
|
Inverter, Fuse Kit and Remote
|
Output waveform
|
Pure sine wave
|
| Continuous output power | 3000 W |
| Surge rating | 6000 W |
| Inverter voltage (DC) | 12 V |
| Output voltage (AC) | 110 VAC RMS |
| Input voltage (DC) | 10.5 - 16 VDC |
| Remote | On/off switch, LED monitoring and flush mount |
| Fuse Kit | 4/0 cable and 400A inverter fuse |
| Certifications (inverter) | CE, FCC |
| Dimensions | 17.8 x 8.2 x 6.5 in / 452 x 208 x 166 mm |
| Weight | 22 lbs / 9.8 kg |
| Warranty | 2 years |
Smart Converter Charger
|
Current
|
75A
|
| Output voltage (DC) | 13.6 V |
| Max power output (continuous) | 1065 W |
| Dimensions | 7.5 x 10.5 x 3.5 in / 191 x 267 x 89 mm |
| Weight | 5 lbs / 2.3 kg |
Transfer Switch
|
Current
|
30A
|
| Electrical rating | 120 VAC 60Hz |
| Dimensions | 9.65 x 7.28 x 4.75 in / 245 x 185 x 121 mm |
| Weight | 3 lbs / 1.4 kg |
| Warranty | 2 years |

$3,680.00
