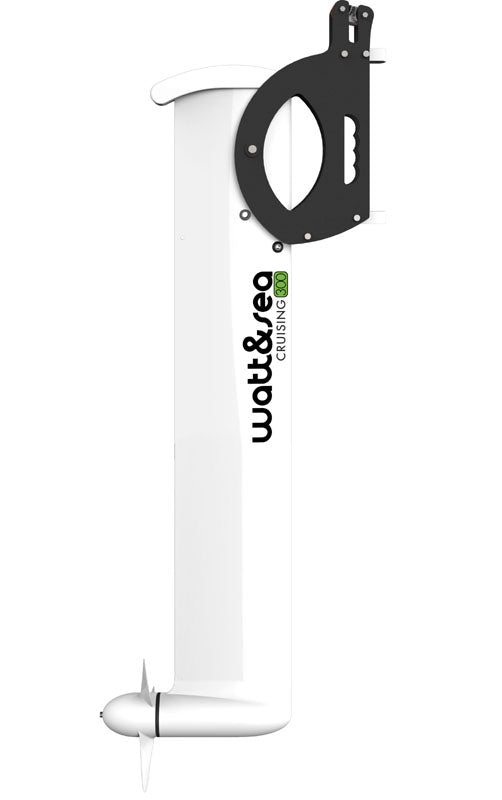

Hydrogenerator 300W 12V Cruising 38″ by Watt and Sea

$5,279.00
$5,279.00 $0.00
Shipping calculated at checkout.
SKU: WGW10005

Even lighter, more manageable, more hydrodynamic and corrosion resistant.  Result of experience, the new generation of Cruising hydrogenerators and its new features meet the requirements of users, boatbuilders and installers:

  • Available in 2 outputs, 300 or 600 Watts, and 2 lengths, 610mm (24") or 970mm (38")
  • "Brushless" technology and same material on any model
  • Converter 12-24 Vcc auto-detected with an advanced electronic architecture
  • New bracket with its cam positioned closer to the hydrogenerator to hold it firmly immersed or lifted.  The locking and unlocking is possible with just one hand.
  • 2 kg lighter, lifting and removal are even easier
  • Redesigned with optimized hydrodynamic, the generator is in composite with enhanced corrosion resistance.



Specifications:

 Nominal Output  300 Watts - 24 Amperes in 12 Vcc
 Alternator Technology   Brushless permanent magnet alternator from Leroy Somer : no wear, better output, and light
 Load Voltage  12 Vcc
 Navigation Program  Cruising
 Speed Range of Use  2-10 knots
 Maximum Speed of Use   20 knots
 Leg Length  970mm or 38 inch
 Overall Height with Bracket   1280mm or 50 inch
 Weight
   - Hydrogenerator
   - Controller Converter
 7.1 kg or 15.7 lbs
 1.5 kg or 3.3 lbs
 Materials
   - Leg
   - Generator
   - Propeller/Blade
 Aluminium
 Composite
 Composite
 Propeller / Blade Supplied  240mm three blade propeller
 Optional Propeller  200mm and 280mm propeller
 Cable Length  2 meters
 Warranty  Hydrogenerators and converters are warranted 2 years








Features:

  • 120W production (10A in 12Vcc) from 5 knots
  • Large range adapted to many sailboats and speeds
  • Ultra lights thanks to the brushless alternator developed with Leroy Somer: mounting and dismounting are simplified
  • Propeller is behind the leg, protected from UFO
  • Hydrodynamic design: unperceivable drag, not affecting boat speed
  • Very silent for everybody's comfort
  • Fast and easy to use thanks to a system like on rudder equipped with a cam-cleat

Please call us to request a quote for this product.
