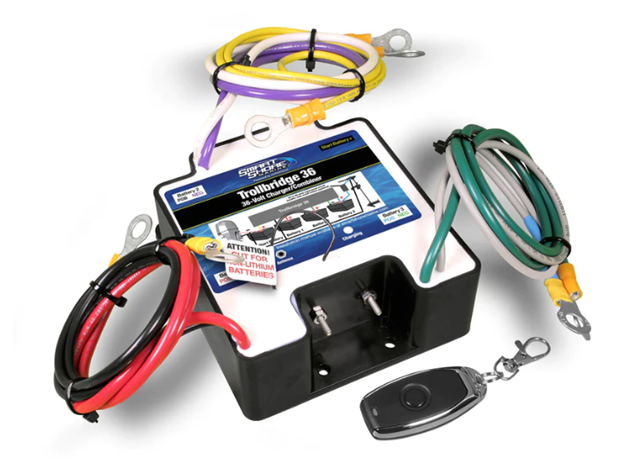

Hypertech Trollbridge 36
Regular price
$257.53
Sale price
$257.53
Regular price
$257.53
Unit price
per
CBY12032
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
This item is currently out of stock. We can often special-order it or suggest an equivalent.
Sorry, it's out of stock.
But we can let you know when it's back in.
The Trollbridge 36 allows you to charge your 36-Volt trolling motor batteries from the 12-Volt alternator on your main engine, from your trailer hookup, or from any single output 12-Volt battery charger. It works automatically by connecting the three (3) 12-Volt trolling motor batteries in series for trolling motor mode and connecting them in parallel for charging mode. It suits boats with a 36-Volt trolling motor and a 12-Volt outboard alternator.
The Trollbridge 36 contains a built-in Combiner that isolates the starting battery from discharge. Additionally, the Trollbridge 36 can be configured to work with Lithium batteries or standard AGM/Lead-Acid batteries.
Features
- Rated for 12-Volt charging sources up to 100 Amps
- Compatible with most 36-Volt trolling motors, up to 85 Amps
- Remote control to override Charge Mode to Trolling Mode
- Green LED shows when charging
- Compact, waterproof design with included cables
- No heat sink or cooling fan required
- Withstands ambient temperature to over 175°F (80°C)
- Draws no power while the trolling motor is active
| Hypertech Trollbridge 36 Information: | |
 |
Hypertech Trollbridge 36 Manual |
|
Hypertech Trollbridge 36 Warranty |
Questions & Answers
Can I use the trolling motor while the outboard is charging?
Not in Charge Mode, because the batteries are configured for 12 Volts in parallel. A remote control can override Charge Mode to Trolling Mode while the outboard is running.
What fuses and breakers do I need?
The manual calls for a 60-Amp circuit breaker with on/off switch to the trolling motor and three 100-Amp slow blow fuses, one to each trolling motor battery positive post. These are not listed as included.
Can I shorten the supplied cables?
No. Shortening any supplied cable voids the warranty. Use 6 to 10 gauge wire and terminals for extensions.
What is the warranty?
A limited one year warranty to the original purchaser against defects in material and workmanship.
