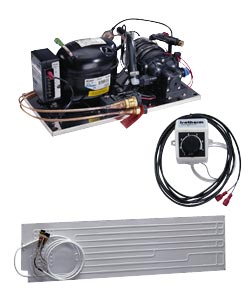

The Isotherm Compact Magnum 2513 is a water-cooled refrigeration unit with a large flat evaporator for building a custom fridge or freezer box. It uses a Danfoss BD50F compressor with dual temperature range, for box volumes up to 9.2 cu ft as a fridge or 3.0 cu ft as a freezer. It suits boats in hot climates, because the self-priming sea water pump gives extra high efficiency for tropical applications.
Specifications
| Specifications Isotherm Compact Magnum 2513 | |
| Type | 2513 |
| Max Box Volume cu.ft. | 9.2 (Fridge) / 3.0 (Freezer) |
| Evaporator | Flat |
| Dimensions evaporator inches | 39.38 x 10.69 |
| Dimensions compressor L x W x H inches | 17 x 9 x 7 |
| Power Consumption (Amp) Average A/hour / Max A by 12 V | 1.15 / 6.1 |
| Weight (lbs.) | 33 |
| Danfoss Compressor Model | BD50F |
| Temp Range | Dual |
Features
- Fridge or freezer use, set with a special thermostat
- 12/24 V Danfoss / Secop compressor
- Self-priming sea water pump
- Variable speed water pump, according to the temperature of the water circulating inside the condenser
- Universal AC/DC kit optional
Questions & Answers
Can it run as both a fridge and a freezer?
Yes. Dual range means it can operate as a fridge or a freezer (-12°C), set with a special thermostat. It runs one temperature at a time.
What box size should I plan for in the tropics?
Indel says to reduce the recommended box volume by 10 to 20% for tropical conditions.
Does it run on AC?
It is a 12/24 V DC unit. A universal AC/DC kit is optional, for 230/115 V and 50/60 Hz.
Does it include a mounting bracket?
The click-on mounting bracket included with other Compact models is not included with Magnum models.
