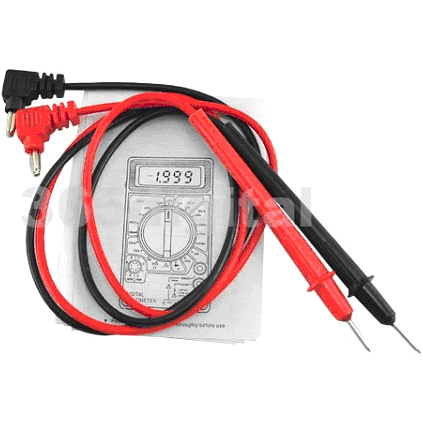

LCD Digital VOM Multimeter
Regular price
$12.00
Sale price
$12.00
Regular price
$0.00
Unit price
per
MTS70500
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
- 3 ½ digits LCD display with max. reading 1999
- Dimension:126x70x24mm
- Weight: 170g
- Power: 20mW
- low power indicator ( 9V Battery included )
- Overload Protection
- The Digital Multimeter integrates Voltmeter, Ammeter and ohmmeter which is an ideal instrument for use in fields such as laboratory, workshop, DIYers and home applications.
Specifications:
- DC Voltage:
|
Range |
Resolution |
Accuracy |
|
200mV |
100uV |
± 0.5% ±2D |
|
2000mV |
1mV |
|
|
20V |
10mV |
|
|
200V |
100mV |
|
|
1000V |
1V |
± 0.8% ±2D |
- AC Voltage:
|
Range |
Resolution |
Accuracy |
|
200V |
100mV |
± 1.2% ±10D |
|
750V |
1V |
- DC Current:
|
Range |
Resolution |
Accuracy |
|
200uA |
100uA |
± 1.0% ±2D |
|
2000uA |
1A |
|
|
20mA |
10A |
|
|
200mA |
100A |
± 1.2% ±2D |
|
10A |
10mA |
± 2.0% ±2D |
- Resistance (ohm):
|
Range |
Resolution |
Accuracy |
|
200Ω |
0.1Ω |
± 0.8% ±2D |
|
2000Ω |
1Ω |
|
|
20KΩ |
10Ω |
|
|
200KΩ |
100Ω |
|
|
2000KΩ |
1KΩ |
± 1.0% ±2D |
