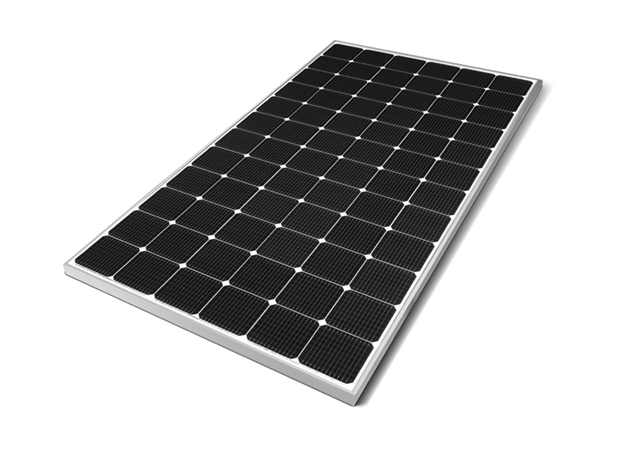

LG NeON 2 Bifacial 405 Watt 72 Cell PV Module Silver Frame
Regular price
$0.00
Sale price
$0.00
Regular price
$0.00
Unit price
per
Shipping calculated at checkout.
SKU: SOL60405
Couldn't load pickup availability
This Solar Panel is no longer available
The LG NeON® 2 BiFacial is designed to absorb sunlight both from the front and the rear sides of its NeON® cell by using a transparent backsheet. The dual faces of the cell result in higher energy generation.
The LG NeON® 2 BiFacial is designed to absorb sunlight both from the front and the rear sides of its NeON® cell by using a transparent backsheet. The dual faces of the cell result in higher energy generation.
|
Dimensions, Connectors, and Etc. |
|
| Technology: | Monocrystalline (Mono) |
| Dimensions: |
79.69 x 40.32 x 1.57 inches |
| Weight: | 44.75 lbs |
| Cells: | 6 x 12 |
| Cell Type: | Monocrystalline / N-Type |
| Number of Busbars: | 12 EA |
| Backsheet Color: | Transparent |
| Frame: | Anodized Aluminum |
| Cables: | 1200 mm x 2 EA |
| Connector: |
MC4 / MC |
| Junction Box: | IP 68 with 3 Bypass Diodes |
| Electrical Data |
|
| Nominal Maximum Power (Pmax): | 405 Watts (Bifacial Gain - 430w / 455w) |
| MPP Voltage (Vmpp): | 41.9 Volts |
| MPP Current (Impp): | 9.68 Amps (Bifacial Gain - 10.26V / 10.86V) |
| Open Circuit Voltage (Voc): | 49.8 Volts |
| Short Circuit Voltage (Isc): | 10.26 Amps (Bifacial Gain - 10.88A / 11.51A) |
| Module Efficiency: | 19.5% (Bifacial Gain - 20.7% / 22% |
