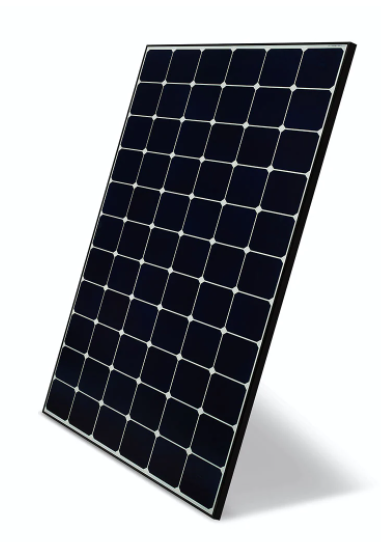

LG440 QAC-A6 Hi-Eff Hi-Q Cells

This Solar Panel is no longer unavailable

•

  High Output and Efficiency

  The LG NeON® R series has been designed for high-power output making it efficient even in limited space.

•

  25-Year Warranty

  The NeON® R series offers a 25-year limited warranty for performance, product and labor. At 25 years, the modules are guaranteed to produce at least 92.5% of their labeled power output.

•

  Roof Aesthetics

  The LG NeON® R series has been designed with aesthetics in mind; with no electrodes on the front, the modules have a sleek, modern appearance.

•

  Excellent Performance on Hot Day

  The LG NeON® R series performs well on hot
  days due to a low temperature coefficient.

GENERAL DATA

• Cell Properties (Material/Type): Monocrystalline/N-type

• Cell Configuration: 66 Cells (6 x 11)

• Module Dimensions (L x W x H): 75.2"x41"x1.58"

• Weight: 46 lbs

ELECTRICAL PROPERTIES (STC*)

Maximum Power (Pmax) [W]: 440

MPP Voltage (Vmpp) [V]: 41.4

MPP Current (Impp) [A]:10.64

Open Circuit Voltage (Voc, 5%) [V]: 48.2

Short Circuit Current (Isc, 5%) [A]: 11.20

Module Efficiency [%]: 22.1

Power Tolerance [%]: 0 ~ +3

LG440 SPEC SHEET
