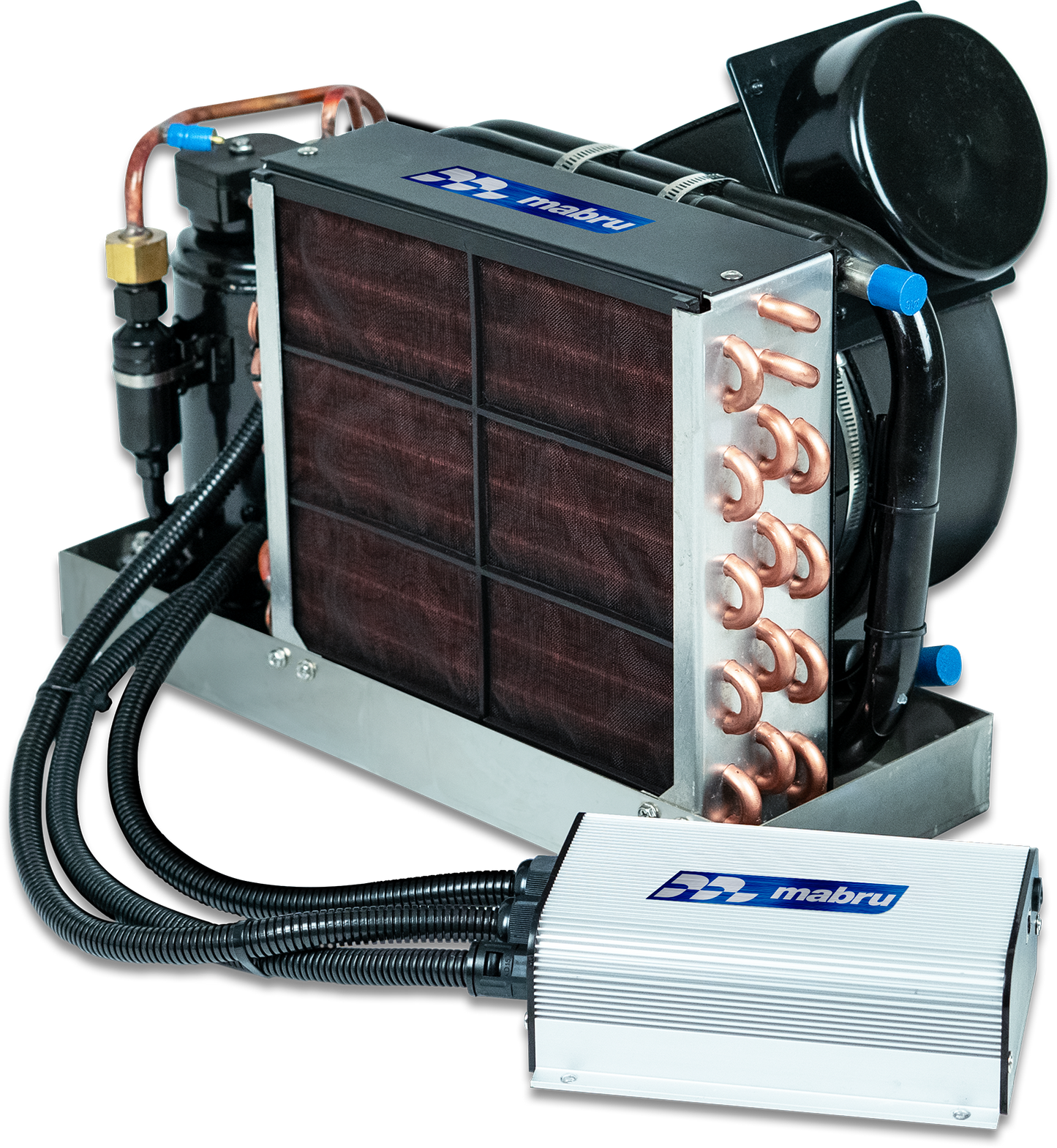

Mabru Air Conditioning 12KBTU, 12VDC, Cooling & Heating, 12VDC Pump Included

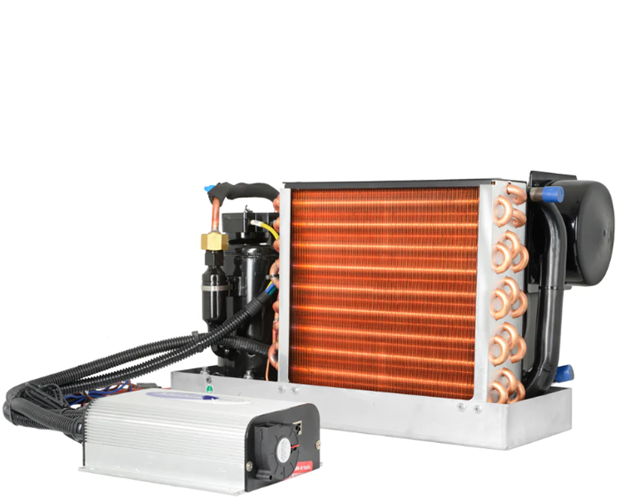

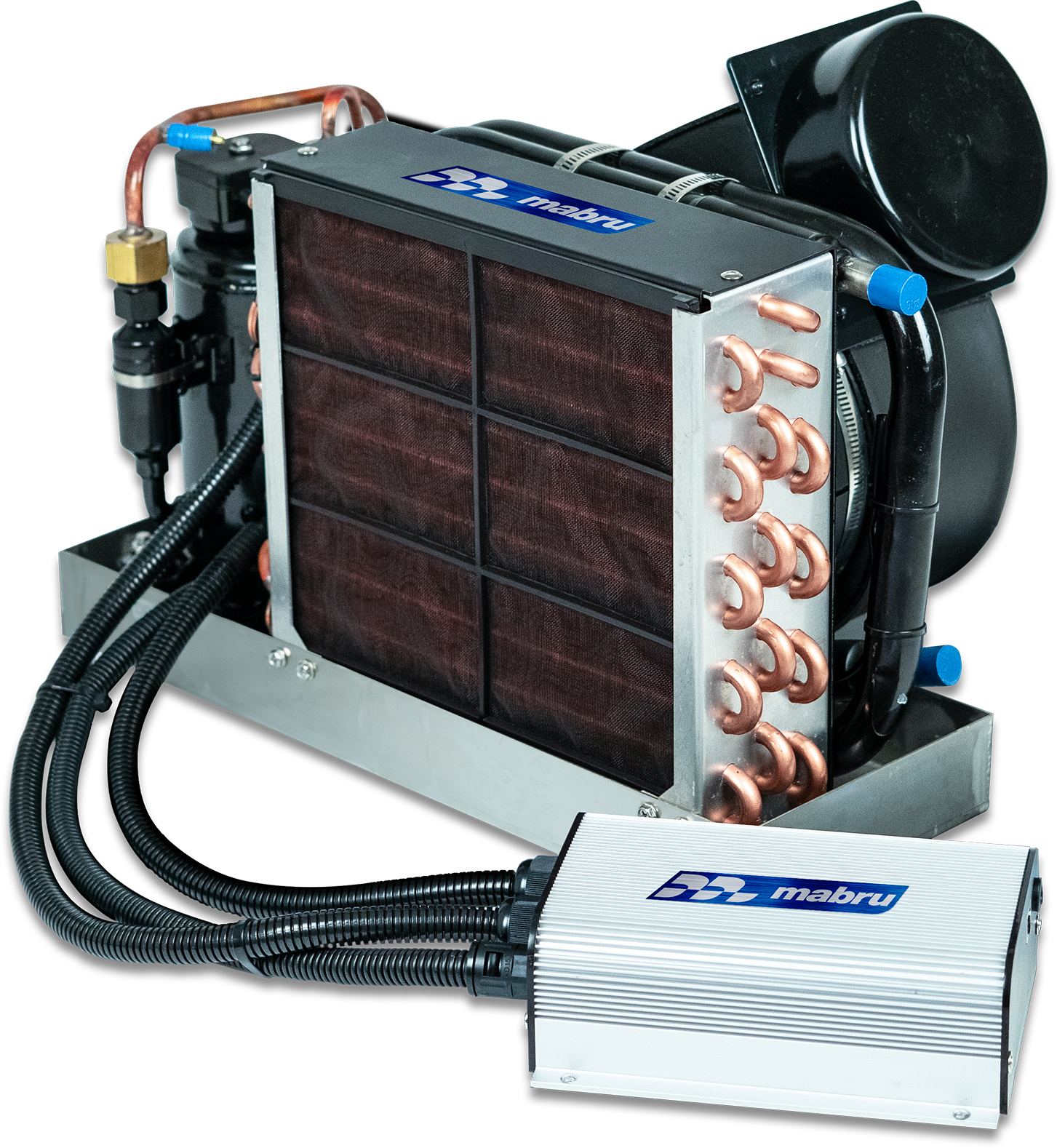

The Mabru SC12DC is a 12,000 BTU self-contained marine air conditioner that runs on 12V DC and provides both cooling and heating. A 12V raw water pump is included. It is for boat owners who want air conditioning from a DC battery system instead of shore power or a generator.

Warranties

• 2 Year Warranty on the unit.
• 1 Year Warranty on installation.
• Lifetime Warranty on the compressor.

Lets Recap and See Why This Is Your Best Option

• Life time warranty on our compressors. 2 years on parts (1 year parts and labor)
• Lower cost to buy and maintain, (much more reliable!)
• Super high efficiency by design
• Quiet.. our units will not disturb your sleep
• Stainless chassis, welded drains
• High static pressure ball bearings blowers with auto mode
• Digital control Vimar bezel compatible
• 20 years rated 70/30 CuNi water cool condenser
• Very simple installation.

Installation Specifications

• Model: SC12DC, 12,000 BTU, 12V DC
• Duct size: 5 in
• Return grille: 80 sq in
• Minimum supply air grille: 24 sq in
• Raw water pump: Mabru 350 GPH 12V DC, included
• Included: color touch screen display with black bezel, 15 ft display cable, 7 ft remote temperature sensor (preinstalled on DC units)
• Blower can be rotated to help with ductwork routing

Questions & Answers

Is the raw water pump included?

Yes. The SC12DC comes with a Mabru 350 GPH 12V DC raw water pump.

What duct and grille sizes does the SC12DC need?

Mabru specifies a 5-inch duct, a return grille of 80 square inches and a supply air grille of at least 24 square inches.

Which display comes with the unit?

A color touch screen display with a black bezel, plus a 15 ft display cable. Standard CAT 5 ethernet cable can be used for a longer run, up to 50 ft. The digital control is also Vimar bezel compatible.
