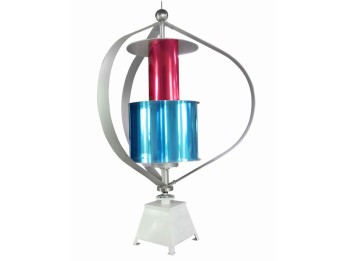

Maglev 400W Vertical Axis Wind Turbine System CXF-400
Couldn't load pickup availability
The CXF–400 is a hybrid vertical axis wind turbine (VAWT) system which combines drag and lift-based design together. It incorporates an S-type Savonius rotor and three airfoil blades of eggf type Darrieus rotor to maximize the output performance. The entire structure floats on a magnetic field minimizing drag resistance while increased performance plus isolating mechanical rotation vibration into the boat hull. This unique aesthetically pleasing wind generator provides excellent performance on a boat because of its ability to operate on winds coming in any direction. Its low rpm makes it very quiet.
Specification
| Rated Power | 400W |
| Wind wheel diameter | 1.24M (4.07ft) |
| Weight | 66.14 lb/30KG |
| Blade Material | Aluminum Alloy |
| The number of blade | 3 |
| Minimum wind speed start | 1m/s (2.24mph) |
| Minimum power wind speed | 2.7m/s (6.04mph) |
| Rated wind speed: |
12m/s (26.84mph) |
| Maximum cut off wind speed | 15m/s (33.55mph) |
| Resistant to wind speed limit | 65m/s (145.40mph) |
| The type of Generator |
Three-phase AC maglev wind turbine |
| Controllor output voltage | 12V or 24V |
| Controllor output current | <20Amp |
| Controllor brake system |
Over speed automatic Three-phase
Short-circuit braking
|
| Normal operating temperature |
-40～50 ℃ |
Please note: due to the way this item ships it is impossible to calculate shipping online.
When ordering this item the shipping added to your total is an estimate only. If you order this item through our web site we will contact you to arrange for the adjustment (if any) to your shipping cost.
