SKU: IVM70010
MPN: ME-AGS-N

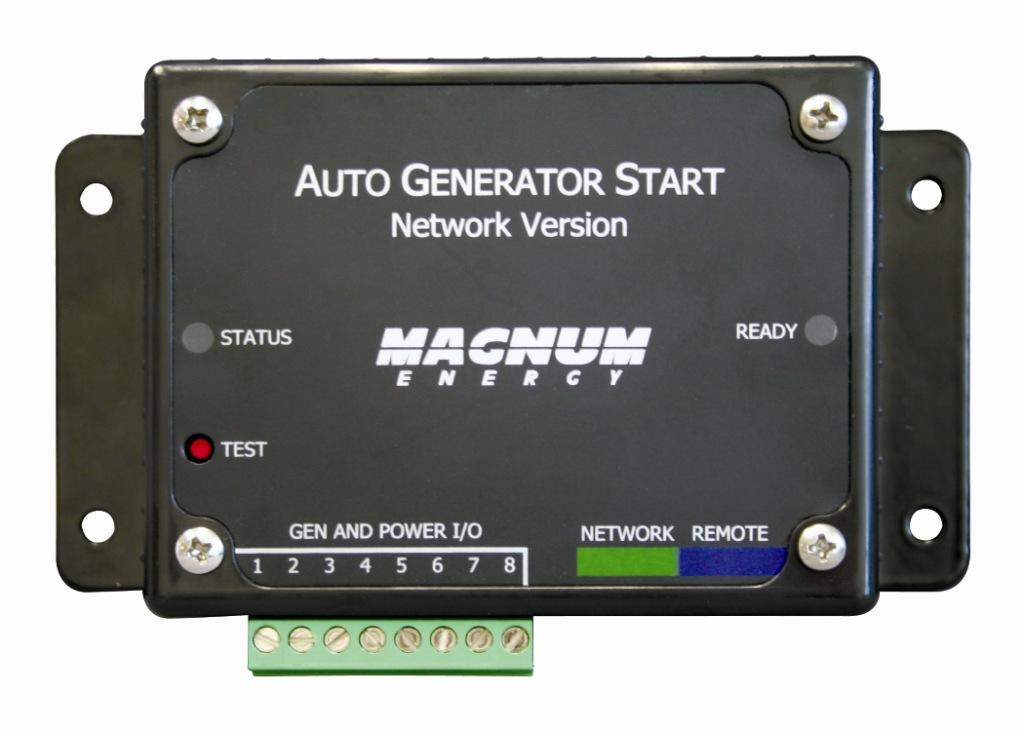

The Magnum ME-AGS-N is the network version of Magnum Energy's Automatic Generator Start (AGS) controllers. It is set up and operated through a Magnum inverter and an ME-RC or ME-ARC remote panel, or the ME-RTR router. It suits boats, RVs and off-grid systems with a Magnum inverter/charger and a generator that has automatic starting capability.

When using the ME-RC Remote, the ME-AGS-N has basic adjustments starting on battery voltage or temperature. When using the ME-ARC remote, it has advanced start and stop settings based on time of day, battery State of Charge, battery voltage, high temperature, or inverter load amps. It also includes the ability to manually turn the generator on and off, generator exercise, warmup and cooldown.

Features

  • Accommodates 12, 24 and 48 volt settings
  • Works with ME, MM, MMS, MS, MS-PAE and RD Series inverters
  • Compatible with most AC or DC generators with 2-wire or 3-wire start controls
  • Auto start is locked out when utility power is present
  • Portable generator mode and Quiet Time setting
  • Kit includes AGS module, 10 ft network cable and 60 ft remote temperature sensor cable
More detailed information:
PDF Magnum ME-AGS Owner's Manual
PDF Magnum ME-AGS Data Sheet

Questions & Answers

Do I need a Magnum inverter to use it?

Yes. The network version works through a Magnum inverter and remote. Magnum says to use the ME-AGS-S standalone version if you are not using a Magnum inverter/charger.

Will it work with my generator?

It is compatible with most generators that have 2-wire or 3-wire start controls, including Onan, Generac, Kohler and Westerbeke. The generator must have electric start and its own safety shutdowns. Check with your dealer for your specific model.

What do I need to start on battery State of Charge?

The ME-ARC remote or ME-RTR, plus a ME-BMK or ME-BMK-NS battery monitor kit.

Which firmware does it need?

The data sheet says AGS-N features require remote revision 1.6 and AGS revision 4.0 or higher.
