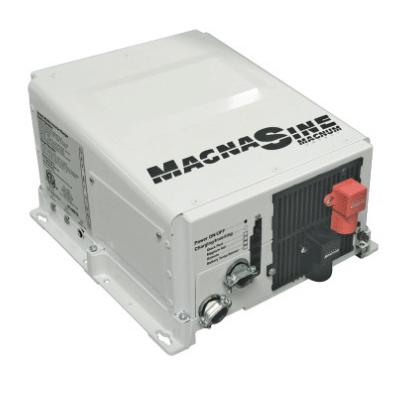

Magnum MS2012 2000W 12V Pure Sine Wave Inverter Charger 100A
Regular price
$2,112.00
Sale price
$2,112.00
Regular price
Unit price
per
IVM20126
Questions about compatibility? Call us for help.
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
Magnum MS2012 2000W 12V Pure Sine Wave Inverter Charger 100A is especially designed for rugged mobile applications, home backup power, and standalone applications. The dual leg AC power input allows for easy support of priority panels.
The Magnum MS2012 2000W is powerful, easy-to-use, and best of all, cost effective.
Features include:
- Pure sine wave output, 120VAC, 60Hz
- Automatic power factor corrected 5 stage battery charger
- Inverter mounted on/off switch with LED indicator
- 30 amp per leg AC pass-through capability, 2 legs
- Built in over-current, over temperature and high/low battery voltage protection
- Large set of manufacturers options for on grid/off grid application making installation simple.
Install the Magnum MS2012 in four easy steps:
- Connect the inverter's output to your distribution circuits
- Connect your AC power cable to the inverter's terminal block
- Connect the batteries
- Switch on the power
Manufacturer Part # MS2012
| Output Power | 2,000W |
|---|---|
| Peak Watts | 3,300W |
| Warranty | Three years parts and labor |
| Output Voltage | 120 VAC |
| Output Current | 16.7 amps |
| Output Waveform | Pure Sine |
| Output Frequency | 60 Hz |
| Input Voltage | 12 |
| Operating Temp | -20° C to +60° C (-4° F to 140° F) |
| Efficiency | 90.6% |
| Weight | 42 lb (19.1 kg) |
| Dimensions | 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm) |
| UL Certified | Yes |
| Phase | Single |
| Topology | Low Frequency |
| Input Battery Voltage Range | 9-16.8 |
| Magnum MS2012 information: | |
 |
Magnum MS2012 Manual |
