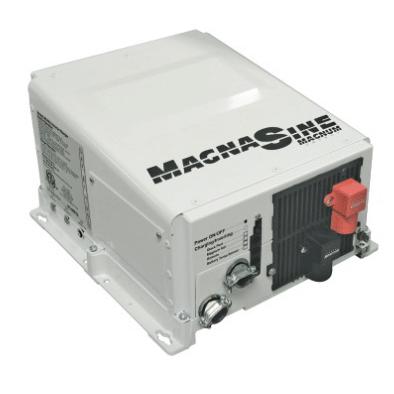

Magnum MS4024 4000W 24V Pure Sine Wave Inverter Charger 105A
Discontinued
IVM24024
This product has been discontinued. We do not expect it to become available again.
Contact us to find a replacement.
Magnum MS4024 4000W 24V Pure Sine Wave Inverter Charger 105A manufactured specifically for the all demanding mobile & off grid applications.
The Magnum 4000 watt inverter is powerful, easy to use, and to install: Just connect the inverter's output to your distribution circuits or electrical panel, connect your AC power cable to the inverter's terminal, connect the batteries, and switch the power on.
Magnum Inverter Charger part # MS4024
Specifications
| Output Power | 4,000W |
| Peak Watts | 5,800W |
| Warranty | Three years parts and labor |
| Output Voltage | 120 VAC |
| Output Current | 33.3 amps |
| Output Waveform | Pure Sine |
| Output Frequency | 60 Hz |
| Input Voltage | 24 |
| Operating Temp | -20° C to +60° C (-4° F to 140° F) |
| Efficiency | 93.7% |
| Weight | 55 lb (24.9 kg) |
| Dimensions | 13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm) |
| UL Certified | Yes |
| Phase | Single |
| Topology | Low Frequency |
| Input Battery Voltage Range | 18-33.6 |
