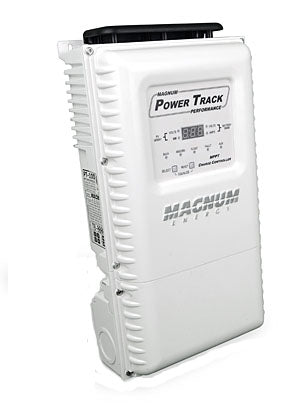

Magnum PT-100 MPPT Charge Controller
Discontinued
CCM40100
This product has been discontinued. We do not expect it to become available again.
Contact us to find a replacement.
The PT-100 is a Maximum Power Point Tracker (MPPT) charge controller designed to harvest the maximum available energy from the PV array and deliver it to the batteries. The PT-100’s MPPT algorithm finds the maximum power point of the array and operates at this point while regulating the output current and battery voltage to fully charge the battery.
Works With
* MS Series
* MS-PAE Series
* MMP Panel System
* MP Panel System
SPECIFICATIONS
| Maximum PV Input Voltage | 200 VDC + battery voltage or 240 VDC whichever is lower |
| Maximum PV Operating Voltage | 187 VDC |
| Nominal Battery Voltage Range | 12, 24, or 48 VDC |
| Battery Charger Output Voltage | 10 to 66 VDC |
| Maximum Output Power | 6600 Watts |
| Peak (and full power) Efficiency | >99% (98% typical) |
| Charger Regulation Method | Automatic three-stage (Bulk, Absorption, Float) Charge with Manual Equalization |
| Overcurrent Protection | With Two Overlapping Circuits |
| Operating Temperature | -28°C to +60°C (-4°F to 140°F) |
| Operating Humidity | 0 - 95% RH Non-Condensing |
| Enclosure Type | Indoor, Ventilated, with Removable Powder-Coated Conduit Box |
| Warranty | Five Years Parts and Labor |
| Weight | 12.5 lb (5.7 kg) |
| Dimensions | 8.5" x 15.5" x 4.0" (21.6 cm x 39.4 cm x 10.2 cm) |
| More detailed information: | |
|
Magnum PT-100 MPPT Charge Controller Data Sheet |
