MG Energy Monitor

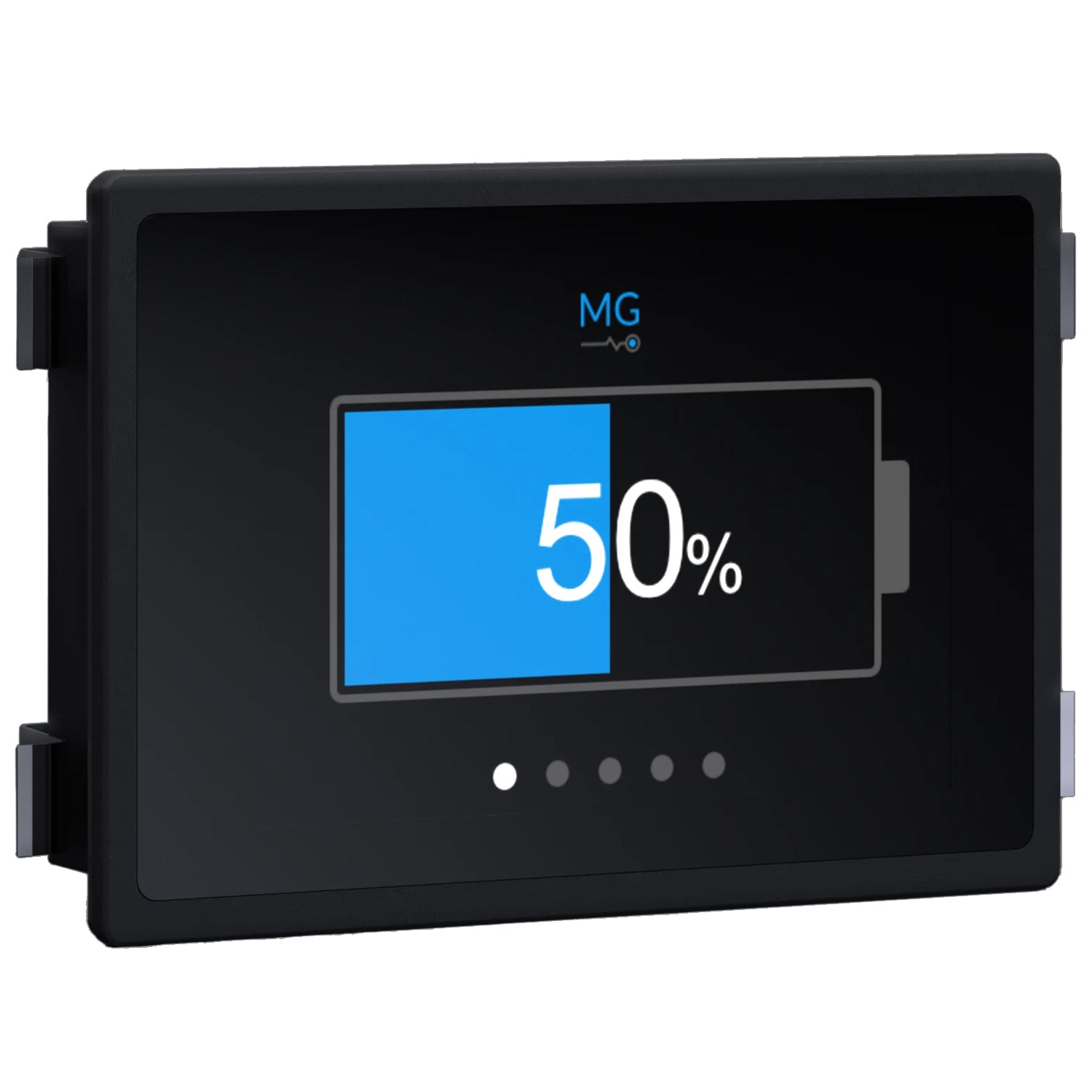

The MG Energy Monitor is a high resolution touchscreen display. It shows all important battery parameters at a glance. This results in easy control and monitoring of your MG battery system. It provides an overview of the battery system status and gives insight into the energy flows. The compact dimensions and high IP-rating make it suitable for a wide range of applications. It is connected to the BMS CAN-Bus interface of the MG Master LV or HV. The integrated wifi module enables the display to connect to the cloud. This allows you to remotely monitor your system with the MG Energy Portal. Lastly, the Energy Monitor is the ultimate way for adjusting battery and BMS related settings.

System Notifications

The Events page provides an overview of all relevant notifications. It is possible to scroll through the list by either using the buttons to the side or swiping up or down. Clicking on a notification will show more info about this particular event. For instance, the daily summary which provides a more detailed overview for each day.

Wi-Fi Connection

The Energy Monitor has a built-in Wi-Fi module. This can act as a gateway for communication with the Energy Portal. Set up communication with the MG Energy Portal in just three simple steps. With the online Energy Portal, remotely monitor your MG battery system. In short, the portal provides access to the data from the gateway, anywhere around the world. Moreover, combine data from multiple Energy Monitors on a single dashboard for an easy overview of more complex systems.

IP67 Certified

The Energy Monitor has an IP67 rating. Therefore it has a high level of protection against both water and dust. Thanks to this high rating, you can install it almost anywhere. In other words, read out all battery data from your MG battery system from where you desire.

Touch Screen

The Energy Monitor features a responsive touch interface. This ensures fast and easy navigating through the various pages. The display shows important system parameters at a glance. Customize the pages to fit your needs. The interface is user friendly and includes a qwerty keyboard. Easily navigate by swiping and pressing. This allows you to quickly find the detailed information about your MG battery system.

Energy Monitor & Energy Portal

Set up the connection between the energy monitor and energy portal in three easy to follow steps:
Firstly, link the Energy Monitor to the internet with the integrated Wi-Fi module.
Secondly, connect your MG battery system to the Energy Monitor gateway.
Lastly, navigate to the web-based Energy Portal and create your account.

The Energy Portal runs in any web browser and is programmed with a responsive design. This makes the battery monitoring always accessible. Regardless of your location. Regardless of which platform you are working on. No matter what device you use.

Technical Specifications

MGEMD010001

Protection class	IP67
Size	3,5" diagonal
Resolution	480 x 320
Connectivity	Wi-Fi

All Specifications

Technical specifications	MG Energy Monitor – MGEMD010001
Supply voltage	12 … 58 VDC
Supply current	150mA @ 12V 90mA @ 24V External power connection available
Enclosure
Material	ABS, glass
Dimensions	103 x 70 x 39 mm
Weight	150 g
LCD screen
Type	TFT
Size	3,5″ diagonal
Resolution	480 x 320
Colours	262K
Brightness	500 cd/m2
Dimming	Yes
Wi-Fi connectivity
Protocol	802,11 b/g/n
RF certification	SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC)
Security	WPA/WPA2
Encryption	WEP/TKIP/AES
Environmental
Operating temperature range	-20 °C to 50°C
Protection class	IP67
Connections
Ext. Power connection	M8, 3 pins
CAN-Bus connection	M12, 5 pins
Standards
EMC: Emission	NEN-EN-IEC 61000-6-3:2007/A1:2011
EMC: Immunity	NEN-EN-IEC 61000-6-2:2019
Low voltage directive	NEN-EN-IEC 60335-1:2012/A13:2017
RoHs	EN 50581:2012
