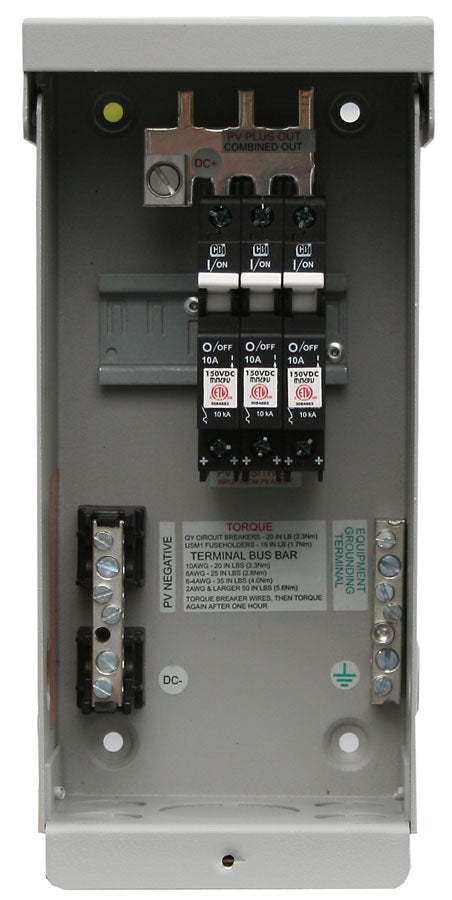

Midnite Solar PV Combiner - 3 Circuits

MNPV3 Combiner

(Enclosure only.Breakers/fuse holders sold separately)

• This model will accept three 150VDC (MNEPV) breakers or two 600/1000VDC fuse holders.
• With modifications to the deadfront 3 dinrail fuse holders can be used.
• Includes a 60 amp plus bus bar, 6 position PV negative bus bar, and a 6 position ground bus bar.
• Punch out tabs on plastic deadfront make for a clean installation using circuit breakers.
• An included vsnap in adapter makes for a professional looking installation when installing fuse holders.
• A single 300VDC breaker from 7 to 50 amps may be installed as a disconnect (no combining busbar).
• The enclosure may be mounted to a pole or wall indoors or out.
• Dimensions: 10.5"(L) x 4.5"(W) x 3.5"(D)
• Weight: 2 Lbs
