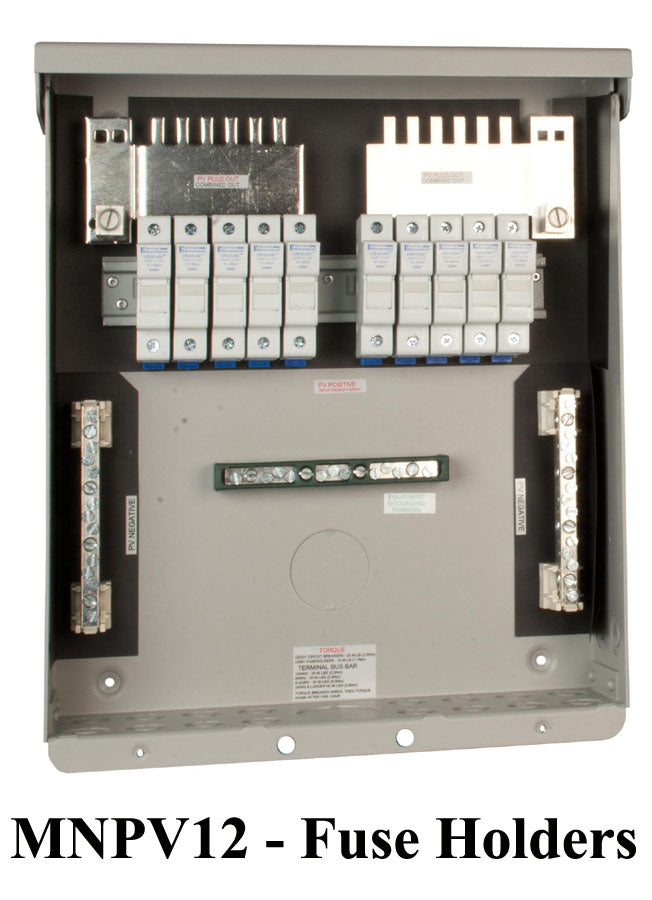

Midnite Solar PV Combiner - 12 Circuits

MNPV12 Combiner

(Enclosure only. Breakers/fuse holders sold separately)

• This Combiner can be configured in 3 ways:
  • A single 10 string combiner for a transformer based inverter 10 positive fuses
  • 2 separate 5 string combiners for 2 transformer based inverters 5 positive and 5 positive fuses
  • A single 5 string transformer less combiner 5 positive and 5 negative fuses
• This model will accept 12  150VDC (MNEPV) breakers or ten 600/1000VDC fuse holders.
• Includes 15 position PV negative bus bar, 15 position ground bus bar, and two 200 amp Plus bus bar for breakers or fuses
• The plus bus bar can be combined or separated to support two grid tie inverters or two charge controllers.  Charge Controllers and Gridtie inverters can typically have common PV minus (exception XW and BlueSky).
• Snap in adapters are included for use with fuse holders for a professional fit and finish.
• Dimensions: 14.5"(L) x 12"(W) x  3.5"(D)
• Weight: 8 Lbs
