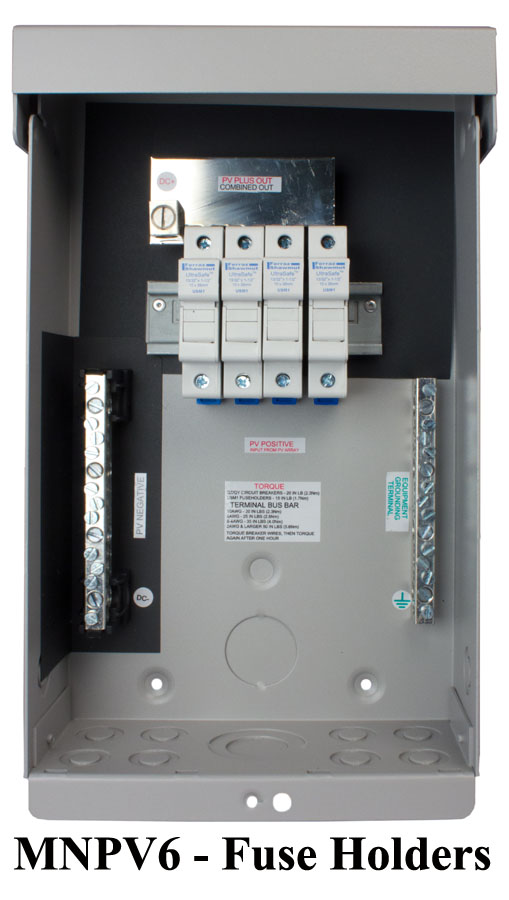

Midnite Solar PV Combiner - 6 Circuits

MNPV6 Combiner

(Enclosure only. Breakers/fuse holders sold separately)

• This model will accept six 150VDC (MNEPV) breakers or four 600/1000VDC fuse holders.
• Includes 15 position PV negative bus bar, 14 position ground bus bar, 120 amp Plus bus bar for breakers and 80 amp bus bar for fuses.
• Punch out tabs on plastic deadfront make for a clean installation using circuit breakers.
• An included vsnap in adapter makes for a professional looking installation when installing fuse holders.
• Up to three 300VDC breaker from 7 to 50 amps may be installed as a disconnect (no combining busbar).
• The enclosure may be mounted to a pole or wall indoors or out.
• The plus bus bar may be split to support two grid tie inverters or two charge controllers.  Gridtie inverters typically can have PV  minuses common.  Most charge controllers can have PV minuses common (exception XW and BlueSky).
• Dimensions: 13.5"(L) x 8"(W) x  3.5"(D)
• Weight: 4 Lbs

More detailed information:
	Dimensions diagram for MNPV6
	Specifications Sheet for MidNite Solar PV Combiner
	Instruction Manuel for MNPV3 & MNPV6
	Diagram of MNPV6 Configured As a DC Load Center
	MidNite Solar PV Combiners Explained with Diagrams
