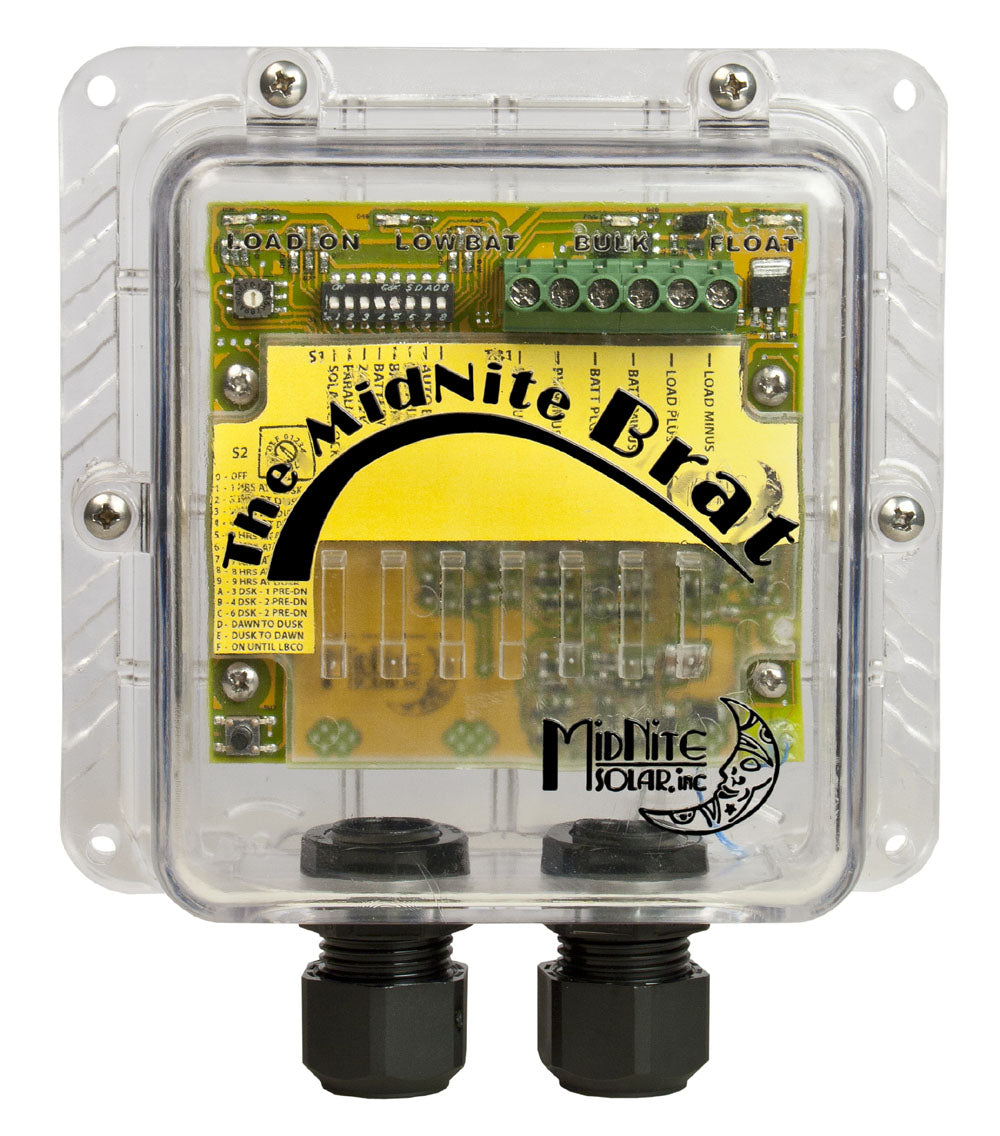

MidNite Solar BRAT Charge Controller

The MidNite BRAT is simply the most versatile Solar Controller in its class.

The BRAT is a finely-tuned solar PWM charge capable of providing up to 30 Amps of charging current, with class-leading lighting and load control features including one-of-a-kind Solar Clock.

Rain-proof out of the box, and supporting dead-battery charging and low-voltage load disconnect.  The BRAT is perfect for outdoor, marine, RV, and unattended remote applications.

Manufacturer Part # MNBRAT

PRODUCT FEATURES

• Selectable charging modes
  20A charger with 10A load control
  30A charger without load control
• Bulk, Absorb, Float, and Equalize (user adjustable)
• 0 to 100% PWM, no relays, no fans, no external heat-sink
• Clear UV stabilized polycarbonate housing; rain and bug proof
• 12V/24V Flooded, GEL, AGM battery supported
• Reverse polarity protected
• Short Circuit Protection
• Auto resetting over temperature protection
• 8 position switch for main charger settings
• 16 position rotary switch for lighting controller
• Four LEDs for Bulk, Float, Load On and Low Battery
• Patterned blinking LEDs provide feedback about fault conditions
• Highly customizable lighting controller
  (dusk-dawn, hourly, day, night, etc.)
• Load/Test Button
  - 10 second test of the load circuit
  - Requests a manual EQ
  - Resets LED fault notification
• Field repairable printed circuit board (by a qualified technician)

SPECIFICATIONS

More detailed information:
	MidNite Solar BRAT Charge Controller Spec Sheet
	MidNite Solar BRAT Charge Controller Instruction Manual
	MidNite Solar BRAT Charge Controller Quick Start Guide
	MidNite Solar BRAT Charge Controller Dimension Drawing
