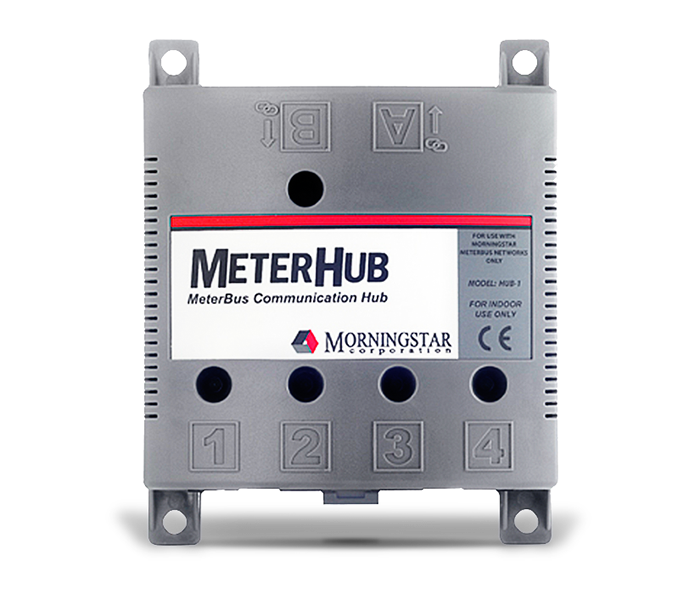

MorningStar MeterHub (HUB-1)

$99.00
$99.00 $0.00
SKU: CCM34577

Questions about compatibility? Call us for help.

Get an additional off

Add the item to cart to apply the discount

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

Morningstar’s MeterHub (HUB-1) allows multiple Mornings tar products to communicate over a Meterbus network to provide improved data m onitoring, additional capabilities and lower system cost.

 • Enables multiple controllers to share a single TriStar meter and display both single controller data (TriStar #1, TriStar #2...) as well as aggregated data fo r the entire system.

 • Enables multiple controllers to share a single Relay Driver and fully utilize all 4 channels of the Relay Driver for different functions (alarms, load disconnects, generator starts) from multiple products.

The MeterHub allows up to 15 Morningstar products on a single MeterBus ne twork. The product electrically isolates devices t hat supply power to the network, pr eventing damage to the network in the event of grounding problem s. Five status LED’s indicate the proper network connection to each port. The MeterHub is suitable for either wall or DIN rail mounting.


Compatible With:

  • SunSaver -MPPT™
  • TriStar™
  • TriStar-MPPT™
  • TriStar Meter-2™
  • TriStar Remote Meter-2™
  • Relay Driver™

Manufacture Part #  HUB-1

Specifications

Minimum Isolation (Ports 1-4) 500 Volts
Self-consumption (per port) 8 mA
Ambient Temperature -40°C to +60°C
Humidity 100% non-condensing
Dimensions 5.3" x 4.3" x 1.5"
(13.5 x 10.8 x 3.7 cm)
Weight 0.41 lbs
(0.19 kg)
Port Connections RJ-11, gold plated
Enclosure Type 1 (indoor and vented)


More detailed information:
PDF MorningStar MeterHub Datasheet
PDF MorningStar MeterHub Operator's Manual
