OutBack Integrated Battery Rack System 2-Shelf
Questions about compatibility? Call us for help.
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
The OutBack Integrated Battery Rack system is a comprehensive battery enclosure solution with cell interconnects, cabling, and series string overcurrent protection and disconnects included, making it easyto order and install. All electrical connections are made at the factory and ship fully assembled with the exception of the Outback batteries, which can be quickly added and connected on the job site.

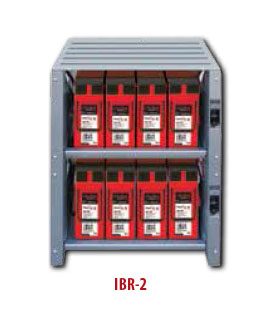

Unlike typical steel racks, the OutBack design is crafted of powder coated aluminum, resulting in a rack that maintains a clean, durable appearance even in challenging environments while weighing less than 90 pounds. The 2-shelf IBR-2 is sized to fit under an OutBack Radian inverter/charger to reduce system component "clutter" and make the best use of installation space. Clear covers allow for visual inspection while providing additional protection for the batteries and electrical connections. The IBR-2-48-175 can accomodate up to eight (8) Outback EnergyCell batteries and supports 48 volt systems.
OutBack Battery Rack system features
- Ideal for Use with OutBack Radian, FLEXpower and FLEXcoupled Systems
- Fast Installation
- Supports Multiple 48V Strings of OutBack EnergyCell RE, GH, and Nano-Carbon Outback Batteries
- Overcurrent Protection on Each Battery String Provides Added Safety and Flexibility
- Well-Ventilated for Increased Battery Safety and Longevity
- Protective Terminal Covers
- Space-Saving Design with Smaller Footprint
- Designed to Meet UL1741
Specifications
| Models | IBR-2-48-175 |
|
Dimensions (H x W x D) |
33" x 27" x 24.5" |
|
Weight (without Batteries) |
60 lbs |
| Physical Characteristics | 0.125" thick aluminum enclosure with FLEXware silver finish; plated copper bus bars and clear protective covers. Ships fully assembled (except for batteries) |
| String Overcurrent Protection | 175 ADC |
| Gauge of Conductors | 1/0 AWG |
| Capacity | Up to 8 EnergyCell batteries |
| Terminal | Threaded copper alloy insert terminal to accept ¼-20 UNC bolt |
| Nominal System Voltage | 48 VDC |
|
Supported Batteries |
EnergyCell 200RE, EnergyCell 170RE, EnergyCell 200GH, EnergyCell 220GH, EnergyCell 200NC and EnergyCell 170NC |
| OutBack Integrated Battery Rack system: | |
|
DATASHEET for OutBack Integrated Battery Rack system |
|
|
INSTALLATION MANUAL for OutBack Integrated Battery Rack Systems |
|
|
OutBack Power Energy Storage Matrix |
