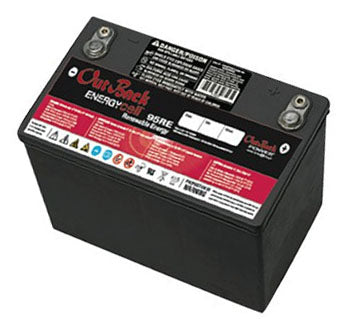

OutBack Power EnergyCell 95RE Top Terminal 12V
Regular price
$208.00
Sale price
$208.00
Regular price
$0.00
Unit price
per
BDO20027
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Special Order
After the order is placed, we will contact you to confirm shipping time and cost. Your card will not be charged until the order ships.
Couldn't load pickup availability
The OutBack Power EnergyCell 95RE Top Terminal Valve Regulated Lead Acid (VRLA) battery is designed for high power density in renewable energy cycling applications. It features Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%, and freedom from electrolyte maintenance. EnergyCell RE batteries also feature low profile terminals with threaded copper alloy inserts providing increased safety and reduced maintenance. The top terminal models are ideal for moderate power applications and are designed to fit in standard Case 31 enclosures to fit a wide variety of installation scenarios.
EnergyCell 95RE Features
- Designed for Renewable Energy Applications
- High-Density Pasted Plates for High Cycle Life
- High Recharge Efficiency
- Compact Footprint for Higher Energy Density Requirements
- Thermally Welded Case-to-Cover Bond to Eliminate Leakage
- Computer Generated Grid Design Optimized for High Power Density
- Low-Calcium Grid Alloy for Reduced Gas Emissions, Ease of Recycling, and Longer Cycling Life
- Frame-Arresting, One-Way Pressure-Relief Vent for Safety and Longer Life
- UL-Recognized Component
- Up to 2-Year Full Replacement Warranty
EnergyCell 95RE Specifications
| Models | EnergyCell 95RE |
|
Cells Per Unit |
6 |
| Voltage | 12 VDC |
| Float Charging Voltage | 13.5 to 13.8 VDC |
| Absorbed Voltage | 14.40 VDC |
| Maximum Charge Current | 26.40 A |
| Self Discharge | Battery can be stored up to 6 months at 77°F (25°C) before a freshening charge is required. Batteries stored at temperatures greater than 77°F (25°C) will require recharge sooner than batteries stored at lower temperatures |
| Terminal | Copper alloy insert terminal to accept ¼-20 UNC bolt |
| Weight | 64 lbs |
|
Dimensions (H x D x W) |
8.06" x 12.51" x 6.83" |
