OutBack

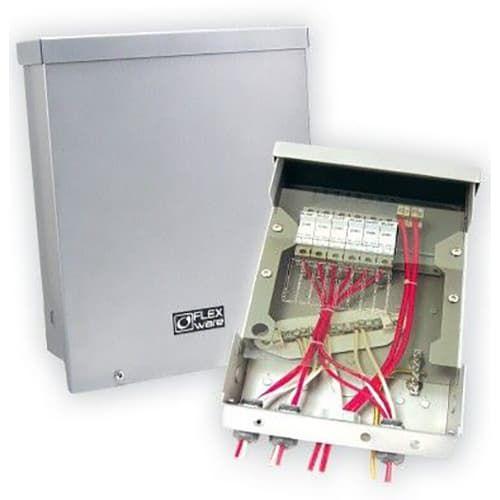

OutBack PV Combiner Box 8 Circuits FWPV8

$220.00
$220.00 $240.00
SKU: CCO55325

Questions about compatibility? Call us for help.

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

OutBack PV Combiner Box FWPV-8

  • Combine Multiple Strings from a Single Array
  • Outdoor Rain-Resistant Aluminum Enclosures
  • Optimized Wire Routing for Easy Installation
  • Tinted Flame-Retardant Polycarbonate Deadfront Panel
  • Wall, Roof or Pole Mountable
  • Accommodates Dual 2/0 AWG Output Wiring
  • Accommodates 150VDC Breakers or 600VDC Fuses

Specifications

Enclosure Material Powder coated aluminum with stainless steel hardware
Mounting Options Vertical wall mount, pole mount or sloped roof mount to 14 degrees incline (3 in 12 roof pitch)
Enclosure Rating Outdoor Rainproof, NEMA 3R
Enclosure Security Padlock hole in chassis and cover for up to 3/8 inch padlock
Output Terminals #14 - 2/0 AWG (2.08-67.4 mm 2)
Two box lug terminals included
Number of Separate Circuits One Circuit
Number of 150VDC Breakers Up to 8
Number of 600VDC Fuse Holders Up to 6
Input Terminal 150VDC Breakers / #14-6 AWG (2.08 - 13.3 mm 2)
Certifications ETL Listed to UL1741, UL67, CSA22.2 #29
Weight 4.4 lbs (2.0 kg)
Dimensions H x W x L 15.2" x 9.2" x 3.9" (38.7 x 23.3 x 9.9 cm)


More detailed information:
PDF Outback PV Combiner Box Datasheet
PDF Outback PV Combiner Box User's Guide
