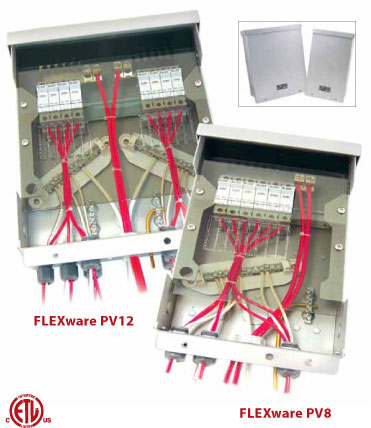

OutBack PV Combiner Box 12 Circuits FWPV-12
Regular price
$270.00
Sale price
$270.00
Regular price
$285.00
Unit price
per
Shipping calculated at checkout.
SKU: CCO55327
Couldn't load pickup availability
OutBack PV Combiner Box FWPV-12
- Combine Multiple Strings from a Single Array
- Outdoor Rain-Resistant Aluminum Enclosures
- Optimized Wire Routing for Easy Installation
- Tinted Flame-Retardant Polycarbonate Deadfront Panel
- Wall, Roof or Pole Mountable
- Accommodates Dual 2/0 AWG Output Wiring
- Accommodates 150VDC Breakers or 600VDC Fuses
Specifications
| Enclosure Material | Powder coated aluminum with stainless steel hardware |
| Mounting Options | Vertical wall mount, pole mount or sloped roof mount to 14 degrees incline (3 in 12 roof pitch) |
| Enclosure Rating | Outdoor Rainproof, NEMA 3R |
| Enclosure Security | Padlock hole in chassis and cover for up to 3/8 inch padlock |
| Output Terminals |
#14 - 2/0 AWG (2.08-67.4 mm
2) Two box lug terminals included |
| Number of Separate Circuits | One or Two Circuits |
| Number of 150VDC Breakers | Up to 12 (two groups of six) |
| Number of 600VDC Fuse Holders | Up to 8 (two groups of four) |
| Input Terminal | 150VDC Breakers / #14-6 AWG (2.08 - 13.3 mm 2) |
| Certifications | ETL Listed to UL1741, UL67, CSA22.2 #29 |
| Weight | 5.9 lbs (2.7 kg) |
| Dimensions H x W x L | 15.2" x 12.7" x 3.9" (38.7 x 32.2 x 9.9 cm) |
| More detailed information: | |
|
Outback PV Combiner Box Datasheet |
|
|
Outback PV Combiner Box User's Guide |
