QuietTorque 20.0 Electric Drive 20kW 48Vdc

Electric Yacht Offers a complete package designed to make an electric repower as easy and straight forward as possible:

• uses state of the art permanent magnet ac (PMAC) motors and vector motor controllers, maximizing efficiency across the entire operating envelope.
• offers adjustable regeneration that can be optimized to your boat, propeller and sailing conditions.

The QuietTorque™ 20.0 is recommended for boats up to 42’ (LOA) and 22,000lbs displacement. Typically, replacing diesel engines in the 30-45 hp range. Typical battery size is 400Ah or more, at 48Vdc.

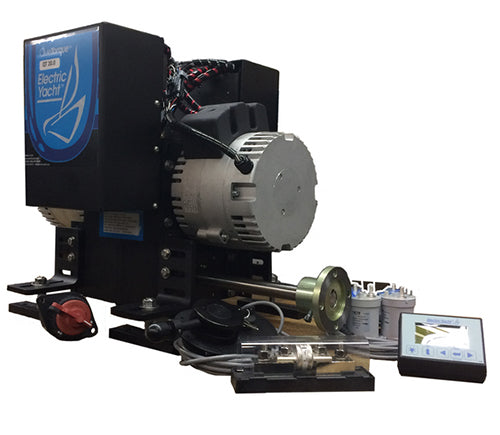

The kit is very complete and includes everything you will need except batteries, battery cables and charger. Contact us to help you design a complete system to meet your particular needs

The QuietTorque™ 20.0SD is recommended for monohulls up to 45’ (LOA) and 24,000lbs displacement; catamarans from 40′ to 46′.

Part Numbers:

• QT-20 E-Drive: QT-20.0
• QT-20 Sail Drive: QT-20.0 SD

Note 1: In selecting the correct size electric motor, in areas with strong tides and currents, choose the next larger size motor. If your boat is heavy for its length, size up too. When in doubt, give us a call.

Please note: Due to the way this item ships it is impossible to calculate shipping online.
When ordering this item the shipping added to your total is an estimate only. If you order this item through our web site we will contact you to arrange for the adjustment (if any) to your shipping cost.

Electric Yacht QT-20:
	QT-20 Datasheet
	QT-20 Sail Drive Datasheet
	QT-20 Drawing
