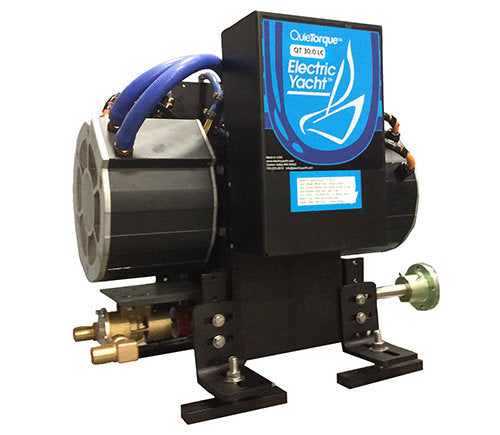

QuietTorque 30.0 Electric Drive 30kW 72Vdc

Electric Yacht Offers a complete package designed to make an electric repower as easy and straight forward as possible:

• uses state of the art permanent magnet ac (PMAC) motors and vector motor controllers, maximizing efficiency across the entire operating envelope.
• offers adjustable regeneration that can be optimized to your boat, propeller and sailing conditions.

The QuietTorque™ 30.0 is recommended for boats up to 45’ (LOA) and 28,000lbs displacement. Air cooling provides for high sustained output, ideal for hybrid applications. Typical battery size is 300 - 500Ah at 72Vdc.

The kit is very complete and includes everything you will need except batteries, battery cables and charger. Contact us to help you design a complete system to meet your particular needs.

The QuietTorque 30.0 LC provides up to 30kW electric propulsion. 48Vdc plug-n-play system for boats to 45ft. 28,000lbs. Replaces diesel engines up to 60hp.

The QuietTorqueTM 30.0 LC Sail Drive is recommended for boats up to 45’ (LOA) and 28,000lbs displacement. Liquid cooling provides for high sustained output, ideal for hybrid applications. Replace diesel engines up to 60hp. Typical battery size is 400 – 600Ah.

Part Numbers:

• QT-30 E-Drive: QT-30.0
• QT-30 SD: QT-30.0 SD
• QT-30 LC: QT-30.0LC
• QT-30 LC SD: QT-30.0LC

Note 1: In selecting the correct size electric motor, in areas with strong tides and currents, choose the next larger size motor. If your boat is heavy for its length, size up too. When in doubt, give us a call.

Please note: Due to the way this item ships it is impossible to calculate shipping online.
When ordering this item the shipping added to your total is an estimate only. If you order this item through our web site we will contact you to arrange for the adjustment (if any) to your shipping cost.

Electric Yacht QT-30:
	QT-30 LC Datasheet
	QT-30 Drawing
