Electric Yacht

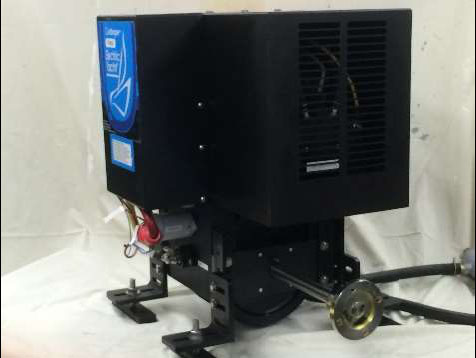

QuietTorque 40.0 Electric Drive 28.8kW to 48kW 96Vdc

  • QuiteTorque 40.0
Model-Voltage
$12,495.00
$12,495.00
SKU: EDE 20330

Questions about compatibility? Call us for help.

Get an additional off

Add the item to cart to apply the discount

Special Order

After the order is placed, we will contact you to confirm shipping time and cost. Your card will not be charged until the order ships.

Electric Yacht Offers a complete package designed to make an electric repower as easy and straight forward as possible:

  • uses state of the art permanent magnet ac (PMAC) motors and vector motor controllers, maximizing efficiency across the entire operating envelope.
  • offers adjustable regeneration that can be optimized to your boat, propeller and sailing conditions.

The QuietTorque™ 40.0 is recommended for boats up to 60’ (LOA) and 40,000lbs displacement. Typically, replacing diesel engines of 70-80 hp range. Typical battery size is 28.8kW to 48kW at 96Vdc.

The kit is very complete and includes everything you will need except batteries, battery cables and charger. Contact us to help you design a complete system to meet your particular needs.

Part Numbers:

  • QT-40 E-Drive: QT-40.0
  • QT-40 SD E-Drive: QT-40.0 SD

Standard Features

Motor Mounts
 Adjustable Mounts to current engine stringers
Throttle Anodized AI waterproof throttle with key & neutral lock
System Monitor
 High capacity programmable monitor
  • State of charge
  • Voltage, Current draw, RPM, battery type
  • Instant and accurate
  • Distance to discharge
  • Programmable regeneration
  • Throttle direction and throw
Shaft coupler
 4" flange
Power Switch
 Blue Sea two position switch
Relay 500amp vacuum Tyco relay
Fuse Class-t fuse & holder

Note 1: In selecting the correct size electric motor, in areas with strong tides and currents, choose the next larger size motor. If your boat is heavy for its length, size up too. When in doubt, give us a call.

Please note: Due to the way this item ships it is impossible to calculate shipping online.
When ordering this item the shipping added to your total is an estimate only. If you order this item through our web site we will contact you to arrange for the adjustment (if any) to your shipping cost.

Electric Yacht QT-40:
QT-40 Datasheet
QuietTorque 40.0 Electric Drive 28.8kW to 48kW 96Vdc

$12,495.00
