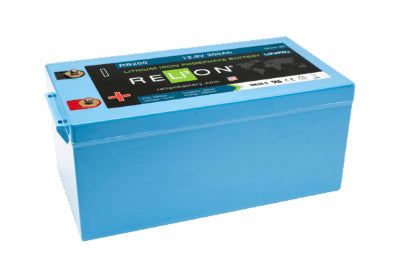

RELiON RB200 12V 200Ah LiFePO4 Battery
The RELiON RB200 12V 200Ah lithium ion phosphate battery is ready to replace your heavy lead-acid battery. The RELiON RB200 is a safer, more lightweight alternative to lead-acid in your marine, solar, RV or other applications. The RELiON Battery maintains a consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RELiON RB200 battery meets UL, UN, CE and IEC certifications.
All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Electrical Specifications |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 200 Ah |
| Capacity @ 25A | 480 min |
| Energy | 2560 Wh |
| Resistance | 30 mΩ |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 6 |
Mechanical Specifications |
|
|---|---|
| Dimensions (L x W x H) | 20.5 x 10.5 x 9.0” 520 x 267 x 228 mm |
| Weight | 61 lbs (27.7 kg) |
| Terminal Type | M8 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP56 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
| RELiON Battery information: | |
 |
RELiON RB200 Specsheet |
