RELiON RB300 12V 300Ah LiFePO4 Battery
Regular price
$2,499.00
Sale price
$2,499.00
Regular price
$0.00
Unit price
per
BDR20300
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Special Order
After the order is placed, we will contact you to confirm shipping time and cost. Your card will not be charged until the order ships.
Couldn't load pickup availability

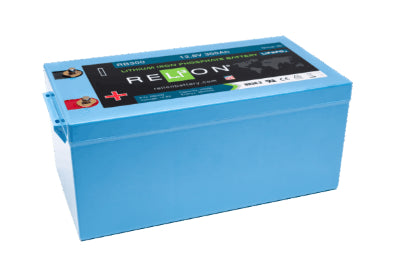

RELiON RB300 12V 300Ah LiFePO4 Battery
The RELiON RB300 12V 300Ah lithium ion phosphate battery is ready to replace your heavy lead-acid battery. The RELiON RB300 is a safer, more lightweight alternative to lead-acid in your marine, solar, RV or other applications. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RELiON RB300 battery meets UL, UN, CE and IEC certifications.
All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Electrical Specifications |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 300 Ah |
| Capacity @ 25A | 720 min |
| Energy | 3840 Wh |
| Resistance | 30 mΩ |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 6 |
Mechanical Specifications |
|
|---|---|
| Dimensions (L x W x H) | 20.5 x 10.5 x 9.0” 520 x 267 x 228 mm |
| Weight | 83 lbs (37.5 kg) |
| Terminal Type | M8 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP56 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
| RELiON Battery information: | |
 |
RELiON RB300 Datasheet |
