RELiON RB100-HP 12V 100Ah LiFePO4 High Load Battery
Regular price
$1,159.95
Sale price
$1,159.95
Regular price
$0.00
Unit price
per
BDR22100
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Special Order
After the order is placed, we will contact you to confirm shipping time and cost. Your card will not be charged until the order ships.
Couldn't load pickup availability

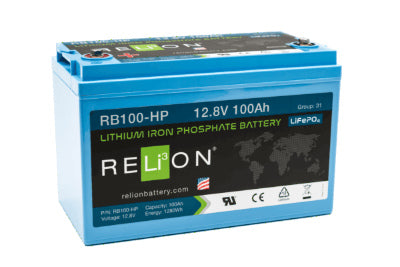

RELiON RB100-HP 12V 100Ah LiFePO4 Battery
Highly Recommended for Marine House Battery Banks with High Loads
The versatile RELiON RB100 12V 100Ah lithium ion phosphate battery is part of the RELiON HP Series (High Peak Performance) of batteries. The RELiON RB100-HP is a safer, more lightweight alternative to lead-acid in various marine applications. It maintains consistent power and is equipped with an M8 terminal type and built-in overcharge protection. The RB100-HP battery meets UL, CE and IEC certifications.
All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Electrical Specifications |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 100 Ah |
| Capacity @ 25A | 240 min |
| Energy | 1280 Wh |
| Resistance | 30 mΩ |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 1 |
Mechanical Specifications |
|
|---|---|
| Dimensions (L x W x H) | 3.0 x 6.8 x 8.8” 329 x 172 x 223 mm |
| Weight | 30 lbs (13.5 kg) |
| Terminal Type | M8 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP56 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
| RELiON Battery information: | |
 |
RELiON RB100-HP Datasheet |
