RELiON RB24V100 24V 100Ah LiFePO4 Battery
Regular price
$2,099.95
Sale price
$2,099.95
Regular price
$0.00
Unit price
per
BDR25100
Questions about compatibility? Call us for help.
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability

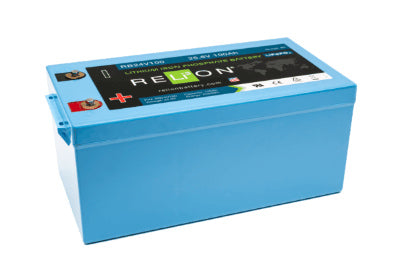

RELiON RB24V100 24V 100Ah LiFePO4 Battery
The RELiON RB24V100 24V 100Ah lithium ion phosphate battery is perfect in many applications, including marine and electric vehicles. It maintains consistent power and is equipped with an M8 terminal type and built-in overcharge protection. The RELiON RB24V100 battery meets UL, CE and IEC certifications.
All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Electrical Specifications |
|
|---|---|
| Nominal Voltage | 25.6 V |
| Nominal Capacity | 100 Ah |
| Capacity @ 25A | 240 min |
| Energy | 2560 Wh |
| Resistance | 30 mΩ |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 1 |
Mechanical Specifications |
|
|---|---|
| Dimensions (L x W x H) | 20.5 x 10.5 x 9.0” 520 x 267 x 228 mm |
| Weight | 61 lbs (27.7 kg) |
| Terminal Type | M8 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP56 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
| RELiON Battery information: | |
 |
RELiON RB24V100 Datasheet |
