RELiON RB300-HP 12V 300Ah LiFePO4 High Load Battery
Regular price
$2,699.95
Sale price
$2,699.95
Regular price
$0.00
Unit price
per
BDR22300
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability

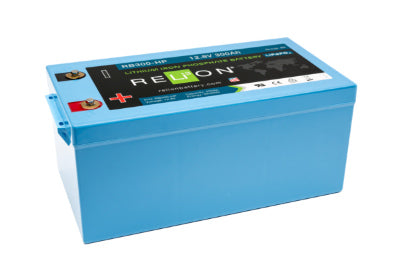

RELiON RB300-HP 12V 300Ah LiFePO4 Battery
Highly Recommended for Marine House Battery Banks with High Loads
This high performance RELiON RB300-HP 12V 300Ah lithium ion phosphate battery is ready to replace your heavy lead-acid battery. The RELiON RB300-HP is part of the RELiON HP Series (High Peak Performance) of batteries and is a safer, more lightweight alternative to lead-acid in your different marine applications. It maintains consistent power and is equipped with an M8 terminal type and a built-in battery management system (BMS). The RELiON RB300-HP battery meets UL, CE and IEC certifications.
All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Electrical Specifications |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 300 Ah |
| Capacity @ 25A | 720 min |
| Energy | 3840 Wh |
| Resistance | 30 mΩ |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 1 |
Mechanical Specifications |
|
|---|---|
| Dimensions (L x W x H) | 20.5 x 10.5 x 9.0” 520 x 267 x 228 mm |
| Weight | 83 lbs (37.5 kg) |
| Terminal Type | M8 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP56 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
| RELiON Battery information: | |
 |
RELiON RB300-HP Datasheet |
