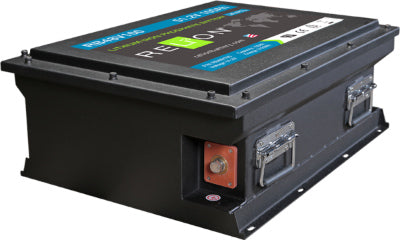

RELiON RB48V100 48V 100Ah LiFePO4 Battery
The RELiON RB48V100 48V 100Ah lithium ion phosphate battery is perfect in many applications, including marine and electric vehicles. The RELiON RB48V100 maintains consistent power and is equipped with an LINYI Connector terminal type and a built-in battery management system (BMS). The RELiON RB48V100 battery meets UL, CE and IEC certifications.
All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Electrical Specifications |
|
|---|---|
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 100 Ah |
| Capacity @ 25A | 240 min |
| Energy | 5120 Wh |
| Resistance | 45 mΩ |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 1 |
Mechanical Specifications |
|
|---|---|
| Dimensions (L x W x H) | 22.8 x 16.1 x 7.8” 578 x 410 x 198 mm |
| Weight | 165 lbs (75 kg) |
| Terminal Type | LINYI Connector |
| Case Material | Steel Case |
| Enclosure Protection | IP56 |
| Cell Type | Cylindrical |
| Battery Chemistry | LiFePO4 |
| RELiON Battery information: | |
|
RELiON RB48V100 Datasheet |
