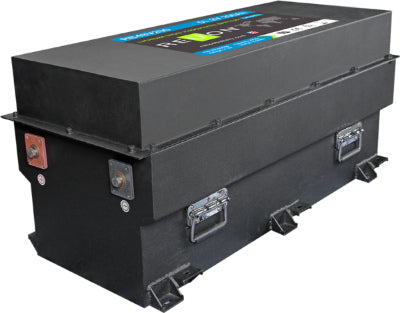

RELiON RB48V200 48V 200Ah LiFePO4 Battery
The RELiON RB48V200 48V 200Ah lithium ion phosphate battery is perfect in many different marine applications. The RELiON RB48V200 Battery maintains a consistent power and is equipped with an M10 terminal type and built-in overcharge protection. The RELiON RB48V200 battery meets UL, CE and IEC certifications.
All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Chemical Specifications |
|
|---|---|
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 200 Ah |
| Capacity @ 25A | 480 min |
| Energy | 10.24 kWh |
| Resistance | 50 mΩ |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 1 |
Mechanical Specifications |
|
|---|---|
| Dimensions (L x W x H) | 34.1 x 14.1 x 15.5” 867 x 358 x 393 mm |
| Weight | 302 lbs (137 kg) |
| Terminal Type | M10 |
| Terminal Torque | 110 - 125 in-lbs (12.2 - 14 N-m) |
| Case Material | Steel Case |
| Enclosure Protection | IP56 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
| RELiON Battery information: | |
|
RELiON RB48V200 Datasheet |
