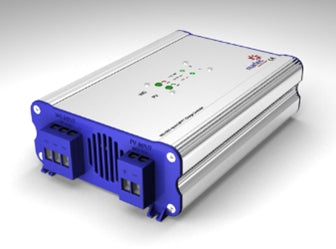

The Rutland 1200 Controller is the Marlec hybrid MPPT charge controller for the Rutland 1200 wind turbine, part number CA-07-01. It sets itself to 12V or 24V and can take solar input as well. It is for owners charging one or two battery banks from wind and solar.
Rutland 1200 Controller
Manufacturer Part # CA-07-01
Specifications
- Type: hybrid MPPT charge controller on both wind and solar inputs
- Battery voltage: 12V or 24V, set automatically from the battery connected at BAT1
- Outputs: two battery banks, BAT1 and BAT2
- Solar input: up to 20A, nominally 250W at 12V or 500W at 24V
- Maximum PV open circuit voltage: 50V
- Charging: multi-stage bulk, absorption and float
- Protection: electronic stall for high wind and over temperature
- Optional accessories: Remote Display CA-07/02, Reprogrammer CA-07/04
Questions & Answers
Can I connect solar panels to this controller?
Yes. It accepts up to 20A of solar panels alongside the turbine. Do not exceed a 50V open circuit voltage on the PV array.
What battery capacity do I need?
Marlec's battery specification table lists 175Ah at 12V or 85Ah at 24V with the turbine only, rising to 275Ah or 135Ah with 20A of solar.
Can I put a switch in the battery line?
No. Marlec says not to install switches, relays, VSRs or fuses that can even momentarily disconnect the battery. BAT1 must stay connected, because an interruption while charging will damage the controller.
