SCAD Internal Tank Sensor

Skip to product information

Regular price $93.00
Sale price $93.00 Regular price $0.00
SKU: ELS10021

Questions about compatibility? Call us for help.

Get an additional off

Add the item to cart to apply the discount

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

This item is currently out of stock. We can often special-order it or suggest an equivalent.

Request a quote or availability or call 954-581-2505.

In stock alternatives:

Sorry, it's out of stock.

But we can let you know when it's back in.

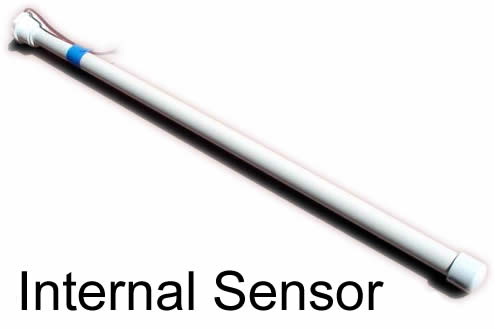

The SCAD Internal Tank Sensor is a solid-state rod sensor that reads tank level from inside the tank, with no moving parts to foul. It is for metal tanks, wood-cored fiberglass tanks and plastic tanks where an external foil sensor will not work, and it must be used with a SCAD monitor.

SCAD Internal Tank Sensor / Internal Tank Sensor (adjustable by cut for 6-24") is designed for use in metal tanks, wood-cored fiberglass tanks, or any plastic tank whose walls are unsuitable or un-reachable for installation of our external foil-based level sensors.

The SCAD Internal Tank Sensor installs through a 1” NPT threaded hole in the top of the tank to monitor. When connected to our monitor a power "ON" light provides instant feedback telling you that its power is on and that the sensor is hooked up properly.

Should only be used with SCAD tank monitor system.

Specifications

  • Style: internal PVC rod, solid-state
  • Length: adjustable by cutting, 6 to 24 in
  • Mounting: 1 in NPT threaded hole in the top of the tank
  • Wiring: three wires (red, black, blue) for power, sensor return and ground, joined with 18 AWG butt connectors

Questions & Answers

How long should I cut the sensor?

SCAD says the sensor should be about an inch shorter than the tank height, allowing for the height of the mounting flange. Take care not to dislodge the copper sensor foils inside the tube, and seal the end with the provided PVC cap.

Can I reuse an old float sensor hole?

Often yes. If your tank has a 1-inch NPT hole it may be suitable. A standard SAE-5 lug pattern can use SCAD's SAE-5 to 1-inch NPT adapter plate.

Does it work with other tank monitors?

No. It should only be used with the SCAD tank monitor system.

SCAD Internal Tank Sensor:
SCAD Profile Manual SCAD Tank Sensor Manual
