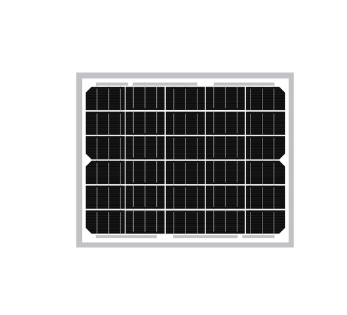

ST-10R-12

SKU:ST-10R-12 (010P3003A)

30 CELL

MONOCRYSTALLINE MODULE

10W

POWER OUTPUT

21.1%

MODULE EFFICIENCY

3%

POSITIVE TOLERANCE

Electrical Characteristics

• Module Type010P3003A
• Maximum power (Pmax)10W
• Voltage at Pmax (Vmp)17.2V
• Current at Pmax (Imp)0.59A
• Open-circuit voltage (Voc)20.3V
• Short-circuit current (Isc)0.62A
• Module Efficiency 20%
• *STC: Irradiance 1000W/m2 , AM1.5 spectrum, module temperature 25?C

Rating Characteristics

• Operating temperature-40?C to 85?C
• Maximum system voltage1000V DC
• Power tolerance? 5%
• Module Fire PerformaceType 1 (for US)
• Fire Resistance RatingClass C (For Canada)
• PV module application classClass A
• Temperature code ratingT3C
• *NOCT: Nominal operating cell temperature (the data is only for reference)

Specifications

• Cells Monocrystalline silicon solar cell
• No. of cell and connections 30(5X6)
• Module dimension9.84in. x 12.20in. x 1.18in. [250mm x 310mm x 30mm]
• Weight2.41lbs[1.09kg]

Temperature Characteristics

• Temperature coefficient of Voc- (80?10)mV/?C
• Temperature coefficient of Isc (0.065?0.015)%/?C
• Temperature coefficient of power (0.5?0.05)%/?C
• NOCT (Air 20?C; Sun 0.8kW/m2 wind 1m/s)47?2?C

SPEC SHEET
