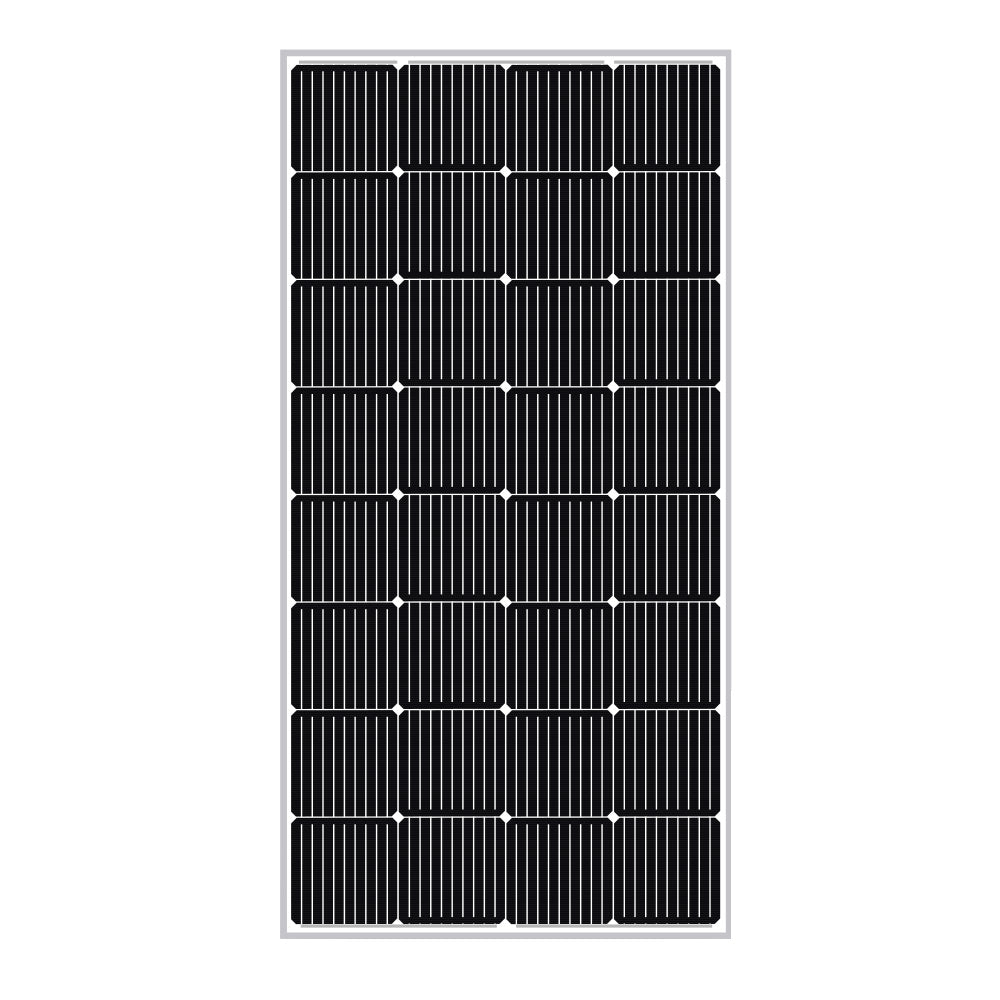

SLD Tech 180W 24V High Efficiency Solar Panel ST-180P-24
Questions about compatibility? Call us for help.
Pallet Freight
After the order is placed, we will contact you to confirm the shipping cost. Your card will not be charged until the order ships.
Couldn't load pickup availability
Solarland 180W 24V Solar Panel
The Solarland? family of SLP Series PV modules are built using only the highest quality components to ensure the best possible performance, & are designed for use in a wide variety of off-grid & grid-tie applications.
All modules have a power tolerance +10/-5% & are backed by our 10/25 year power warranty.
The high performance cells are encapsulated in EVA (ethylene-vinyl-acetate) & placed between high transparent low iron tempered glass & a durable TPT (tedlar-polyester-tedlar) back sheet. The panels are framed using heavy-duty anodized aluminum frames, providing exceptional panel rigidity.
All modules are produced in ISO9001:2000 certified factories & are subject to our stringent triple-level quality control & testing procedures before they leave the factory floor; ?ensuring a high quality & consistent end product. Each panel has a serial number for tracking purposes
Specifications
Ratings: 40.07 Voc, 34.4 Vmp, 5.47 Isc, 5.19 Imp, 5.23 Amps, 180W
Dimensions: Length 58.43", Width 39.06", Depth 1.77"
Weight: 22.75 lbs (10.32kg)
Manufacturer Part # ST-180P-24
Features
- Nominal 24V DC for standard output
- Outstanding low-light performance
- Heavy-duty anodized frame
- High transparent low-iron, tempered glass
- Rugged design to withstand high wind pressure, hail and snow load
- Aesthetic appearance
| More detailed information: | |
 |
SOL50180.pdf |
