SLD Tech (Formerly Solarland)

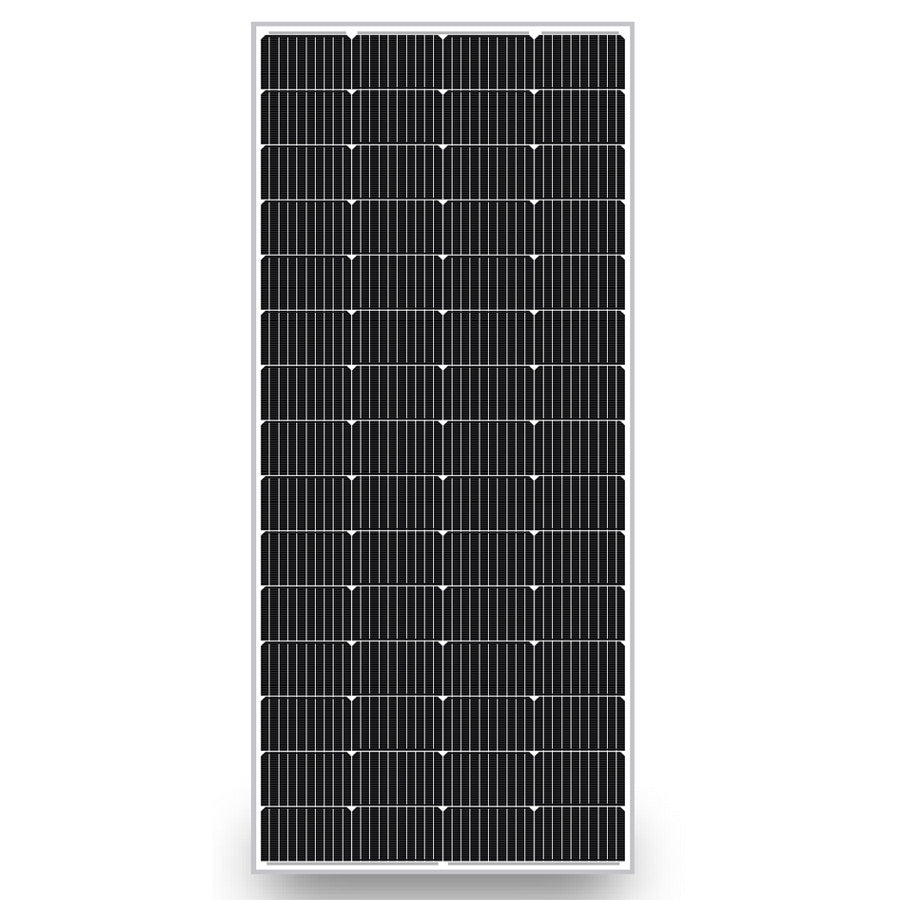

SLD Tech 200W 24V High Efficiency Solar Panel ST-200P-24

  • SLD Tech 200W 24V High Efficiency Solar Panel ST-200P-24
$344.78
$344.78 $370.00
SKU: SOL55201
MPN: ST-200P-24

Questions about compatibility? Call us for help.

Get an additional off

Add the item to cart to apply the discount

Pallet Freight

After the order is placed, we will contact you to confirm the shipping cost. Your card will not be charged until the order ships.

This item is currently out of stock. We can often special-order it or suggest an equivalent.

Request a quote or availability or call 954-581-2505.

Sorry, it's out of stock.

But we can let you know when it's back in.


Electrical Characteristics

  • Module Type  ST-200P-24
  • Maximum power (Pmax)  200W
  • Voltage at Pmax (Vmp)  33.73V
  • Current at Pmax (Imp)  5.93A
  • Open-circuit voltage (Voc)  39.21V
  • Short-circuit current (Isc)  6.25A
  • Module Efficiency  20%
  • *STC: Irradiance 1000W/m2 , AM1.5 spectrum, module temperature 25°C

Rating Characteristics

  • Operating temperature  -40°C to 85°C
  • Maximum system voltage  1000V DC
  • Power tolerance  ±5%
  • *NOCT: Nominal operating cell temperature (the data is only for reference)

Specifications

  • Cells  Monocrystalline silicon solar cell
  • No. of cell and connections  60(4X15)
  • Module dimension  61.81in. x 27.76in. x 1.38in. [1570mm x 705mm x 35mm]
  • Weight  26.84lbs[12.18kg]

    Temperature Characteristics

    • Temperature coefficient of Voc-  (80±10)mV/°C
    • Temperature coefficient of Isc  (0.065±0.015)%/°C
    • Temperature coefficient of power-  (0.5±0.05)%/°C
    • NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s)  47±2°C







    DATA SHEET
