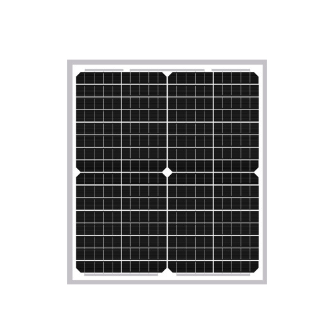

SLD Tech 20W 12V High Efficiency Solar Panel ST-20P-12-R

$74.81
$74.81 $90.00
SKU: SOL55022

Questions about compatibility? Call us for help.

Pallet Freight

After the order is placed, we will contact you to confirm the shipping cost. Your card will not be charged until the order ships.

ST-20P-12-R

SKU:ST-20P-12-R(020P3203A)

32 CELL

MONOCRYSTALLINE MODULE

20W

POWER OUTPUT

20.00%

MODULE EFFICIENCY

5%

POSITIVE TOLERANCE

Electrical Characteristics

  • Module Type020P3203A
  • Maximum power (Pmax)20W
  • Voltage at Pmax (Vmp)18.53V
  • Current at Pmax (Imp)1.08A
  • Open-circuit voltage (Voc)21.37V
  • Short-circuit current (Isc)1.14A
  • Module Efficiency20%
  • *STC: Irradiance 1000W/m2 , AM1.5 spectrum, module temperature 25?C

Rating Characteristics

  • Operating temperature-40?C to 85?C
  • Maximum system voltage1000V DC
  • Power tolerance? 5%
  • Module Fire PerformaceType 1 (for US)
  • Fire Resistance RatingClass C (For Canada)
  • PV module application classClass A
  • Temperature code ratingT3C
  • *NOCT: Nominal operating cell temperature (the data is only for reference)

Specifications

  • CellsMonocrystalline silicon solar cell
  • No. of cell and connections32(4X8)
  • Module dimension15.35in. x 14.17in. x 1.18in. [390mm x 360mm x 30mm]
  • Weight4.00lbs[1.81kg]

Temperature Characteristics

  • Temperature coefficient of Voc-(80?10)mV/?C
  • Temperature coefficient of Isc(0.065?0.015)%/?C
  • Temperature coefficient of power(0.5?0.05)%/?C
  • NOCT (Air 20?C; Sun 0.8kW/m2 wind 1m/s)47?2?C



SPEC SHEET
