Solar PV Protection Kit 15A-30A Single Breaker

Solar panels continue to produce high voltages even with a limited amount of sunlight. Solar circuits on board a boat should be protected with a disconnect to allow safe servicing of equipment.

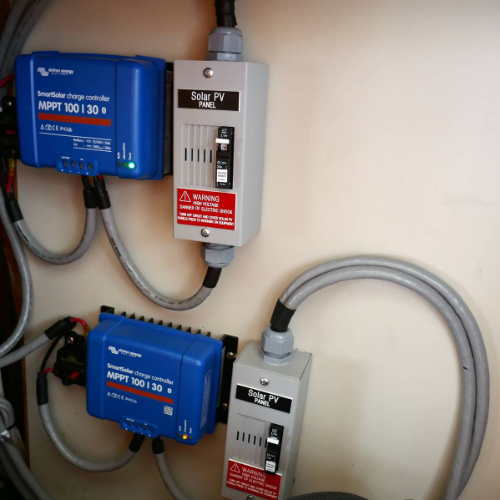

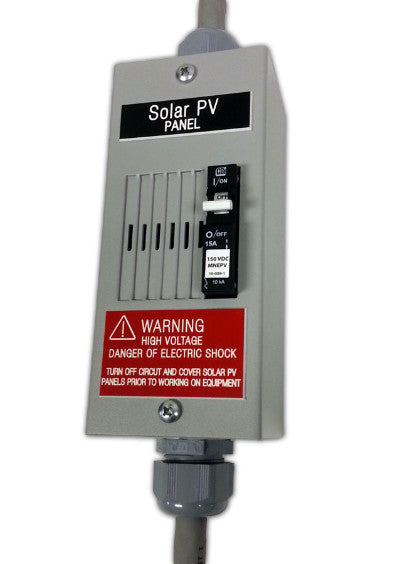

e Marine is pleased to be able to offer this installation kit that allows the solar circuit to be disconnected from the charge controller. The circuit breaker allows for quick disconnect of the solar panels when you are off the boat providing additional safety. This breaker box comes with a warning /circuit label and connects between the solar panels and the charge controller of the solar system.

Must be installed in a dry location only.

Two models for a single PV string are available:

• Rated 15A, 150 VDC
• Rated 30A, 150 VDC

Dimensions: 3" W x 7"H x 2.5" D
