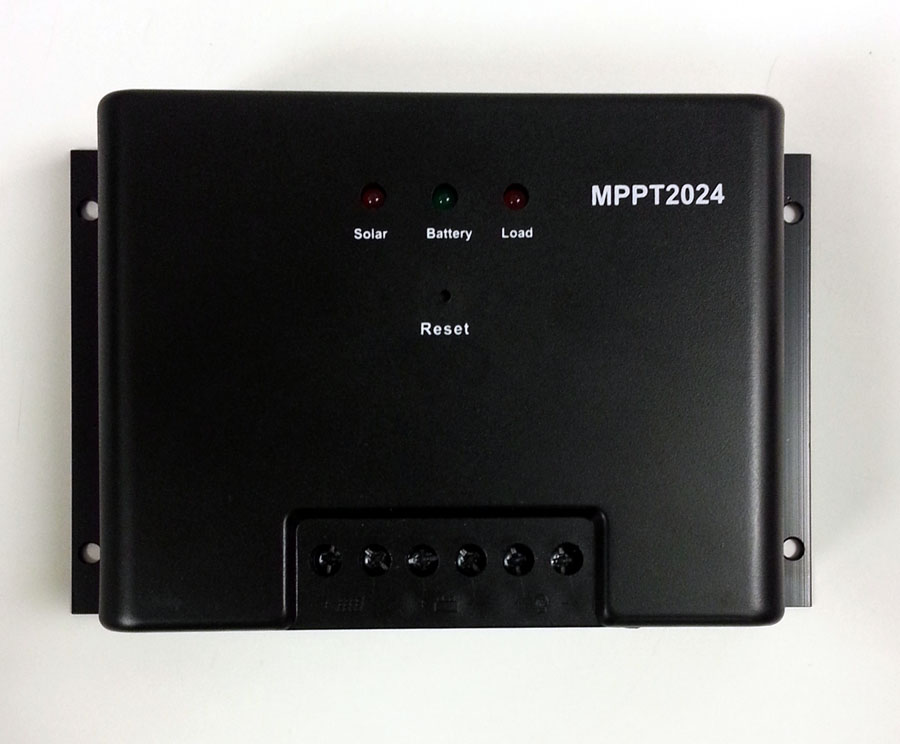

SOLARLAND 20A Solar Charge Controller SLC MPPT2024
Regular price
$129.81
Sale price
$129.81
Regular price
$0.00
Unit price
per
CCS90040
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
SOLARLAND 20A Solar Charge Controller SLC MPPT2024 with intelligent tracking input voltage from solar panel, ensures the solar panel is always working at Maximum Power Point of V-A curve.
The Solarland SLC-MPPT2024 MPPT controller can increase charging efficiency from solar panel by up to 30%.
SOLARLAND SLC MPPT2024 Features:
- Maximum Power Point Tracking
- Overcharge Protection
- Over Discharge Protection
- Battery Reverse Current Protection
- Overloading Protection
- Short Circuit Protection
- Reverse Polarity Connection Protection
- Overfall Protection
SOLARLAND SLC-MPPT2024 Specifications:
| Model No. | SLC-MPPT2024 |
| Rated Voltage |
12V/24V |
| Rated Charge Current |
20A |
| Rated Discharge Current | 20A |
| Over Voltage Protection |
16V/32V |
| Float Voltage | 13.8V/27.6V |
| Absorbing Charging Voltage | 14.4V/28.8V |
| Low Voltage Protection (LVD) | 10.7V/21.4V |
| Low Voltage Reconnection (LVR) |
12.6V/25.2V |
| The Highest Efficiency | 97% |
| Charging Mode |
3-stage (Bulk/Absorption/Float) |
| Size | 7.40" x 4.67" x 2.15" (188mm x 118.5mm x 54.5mm) |
| Weight | 1.76lbs (0.8kg) |
