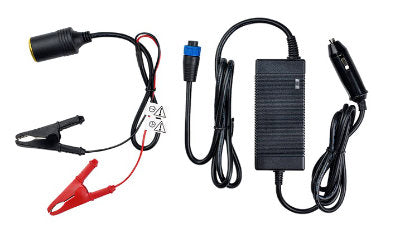

Spirit 1.0+ 12/24 VDC Charger

Spirit 1.0+ DC Charger allows you to charge the Spirit battery from a 12V or 24V power source. Charge time using this charger varies depending upon how deeply discharged the battery is.  For example, if you discharged the battery 80% it would take approx 19 Hrs to recharge (on either 12 or 24V).

Spirit 1.0+ DC Charger 12V/24V is compatible with e Propulsion Spirit battery.

Spirit 1.0+ DC Charger Specs:

• Input power: 60 W
• Input voltage (DC): 10 - 30 V

• Max input current: 6A
• Min charging voltage: 30 V
• Max charging voltage: 52.2 V
• Constant current output: 1 A
• Conversion rate: 88%

• Work environment: -20 - 50
• Storage temperature: -30 - 60
• Certificates: CE, FCC
• Size: 116 × 52 × 33.8 mm / 4.6 × 2 × 1.3 inch

Warranty: 2 years for non-commercial use

Part Number: SP-C002-00
