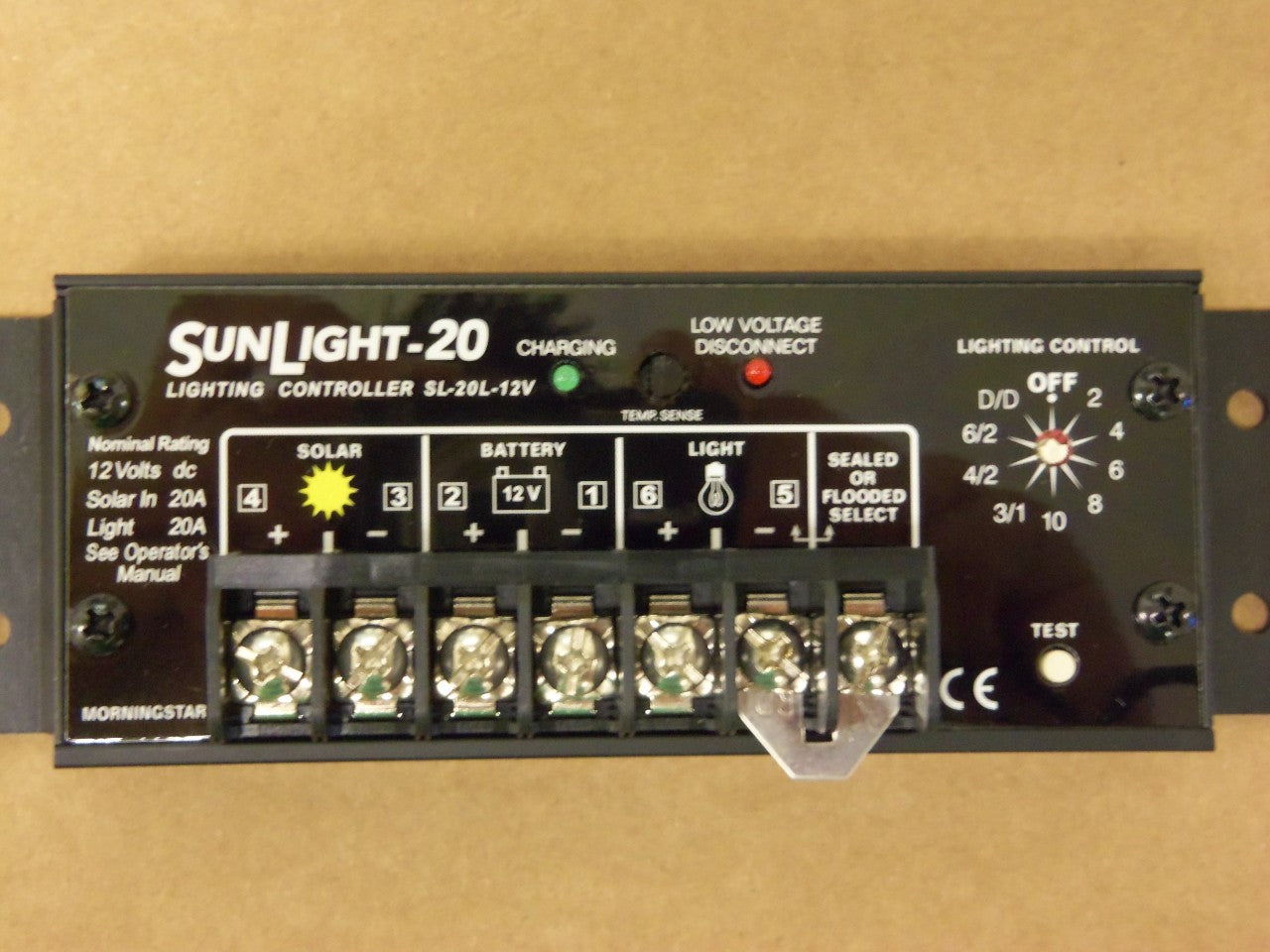

SunLight 20L Solar Lighting Controller

Morningstar’s advanced SunLight solar lighting controller combines the SunSaver design with a microcontroller for automatic lighting control functions.

This technology provides:

• Proven Reliability
• Precise Lighting Control
• PWM Battery Charging

Model Numbers

SL-20L-12V

Operation:

• Rotary digital switch to select among 10 lighting options (see back)
• Test button flashes red LED to confirm correct rotary switch selection
• Test button turns lights on for 5 minutes (in LVD limited to 3 times)
• LVD overrides lighting timer
• Sunrise overrides lighting timer
• Timer accuracy is within 2 seconds

Features:

• Microcontroller digital accuracy
• Fully automatic operation
• Ten field adjustable lighting control options
• Special on/off/on functions
• Manual test capability
• LVD override protection
• Detects day and night using the PV array
• Suitable for all 12/24 Vdc lamps
• Sealed/Flooded battery select
• Temperature compensation
• Parallel with a SunSaver for 40 amps solar
• Includes SunSaver battery charging circuit

More detailed information:
	Operator's Manual
	Datasheet
