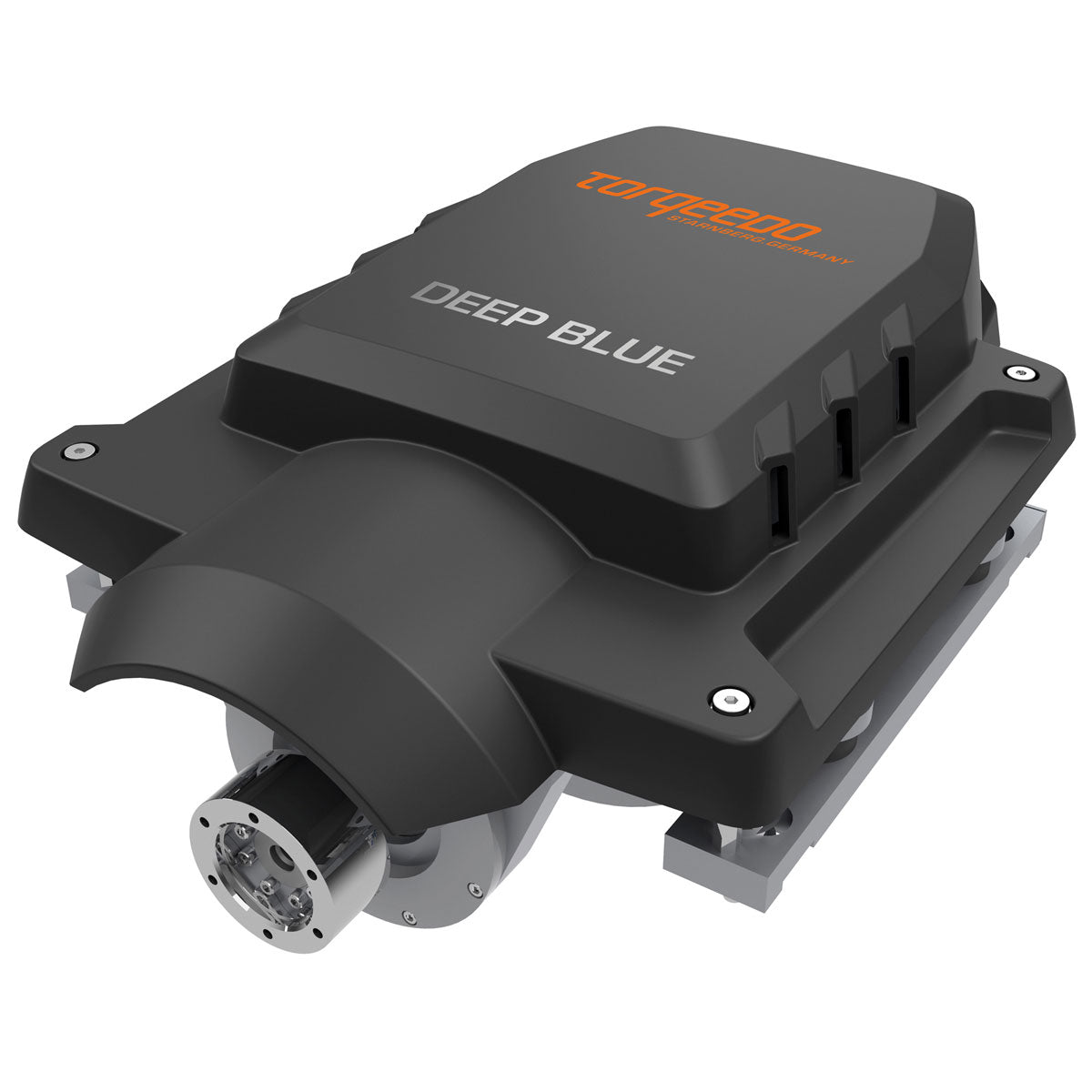

Torqeedo Deep Blue 80i 1400/1800 Electric Inboard (Call for Availability)
Discontinued
EDT01375
This product has been discontinued. We do not expect it to become available again.
Contact us to find a replacement.
It is not just power and performance that make Deep Blue the first of its kind. It is unparalleled performance combined with full system integration and groundbreaking safety levels that set Deep Blue apart from all other electric propulsion systems on the market.
All the components of the system are perfectly engineered to match each other and are completely waterproof. State-of-the art monitoring technology with pilot lines and insulation monitors safeguard the high-voltage system against the risk of short circuits. The same high-performance lithium batteries used to power cars also power Deep Blue – after we developed them further for use in boats. These and many more safety and performance features make Deep Blue a unique high-voltage propulsion system for electric boats.
Specifications
| Input power (peak) | 66 kW |
| Input power (continuous) | 50 kW |
| Propulsive power |
> 32.4 kW
|
| Comparable petrol outboards (shaft power) | 80 HP |
| Maximum overall efficiency | > 54% |
| Integrated battery: usable energy |
25.6 - 51.2 kWh
|
| Nominal voltage | 345 V |
| Final charging voltage | 389 V |
| Motor weight without battery, including electronics | 176 lbs |
| Maximum propeller speed | 1400 or 1800 rpm |
| More detailed information: | |
|
Deep Blue Operating Manual (English) |
|
|
Deep Blue Operating Manual (German) |
