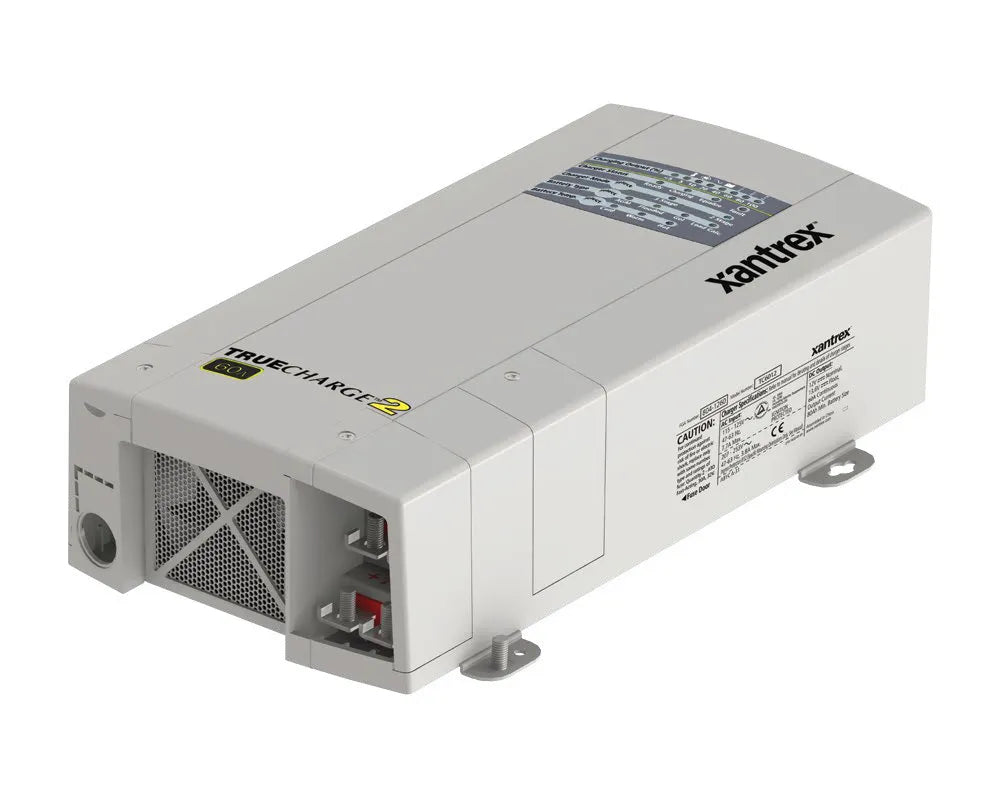

TRUECharge2 12V Battery Chargers - 20A, 40A, 60A

Xantrex TRUECharge2 20A 40A 60A 12V Battery Chargers are redesigned, offer high performance, and lead the industry with a small footprint and ultra-compact design.

The TRUECharge2 New Generation Battery Chargers offer the new Parallel Static Feature that allows two chargers to work together to combine the output current, achieving up to 120A for large battery banks.

Product Info

In addition to meeting global safety and regulatory standards, TRUECharge2 battery chargers feature low electrical interference and efficient, power factor corrected multistage charging. TRUECharge2 battery chargers can be mounted in a variety of positions, given their drip-proof design. TRUECharge2 battery chargers enable quick installation with easy-to-access AC and DC wiring compartments.

Auto-ranging AC input voltage capability (90-265 volts AC) makes traveling abroad and handling poor-quality power a breeze. The easy-to-read onboard display can be augmented with an optional remote panel.

Performance Features

• 12V models available in 20A, 40A and 60A
• Microprocessor-controlled, multistage charging algorithms
• Settings for two and three-stage charging
• Settings for flooded, gel, AGM or lead-calcium batteries
• Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources
• Temperature-compensated charging
• Power factor corrected for efficient charging
• Battery-equalization feature
• Ability to charge ‘dead’ batteries
• Battery temperature sensor available (Part #808-0232-01)
• Optional remote panel (#808-8040-00 for 60 A Charger, #808-8040-01 for 20 A & 40 A Chargers)

Protection Features

• Reverse battery polarity protection
• Drip-proof design
• Over and under-temperature protection
• DC over-voltage protection
• Battery overcharging protection

Note: Please ensure you order TRUECharge2 Remote Panel part #808-8040-01 for parallel stacking.

TRUECharge2 detailed information:
	DATASHEET for Xantrex TRUECharge2 20A, 40A, and 60A Battery Charger
	OWNER'S GUIDE for Xantrex TRUECharge2 20A,40A, and 60A Battery Charger
