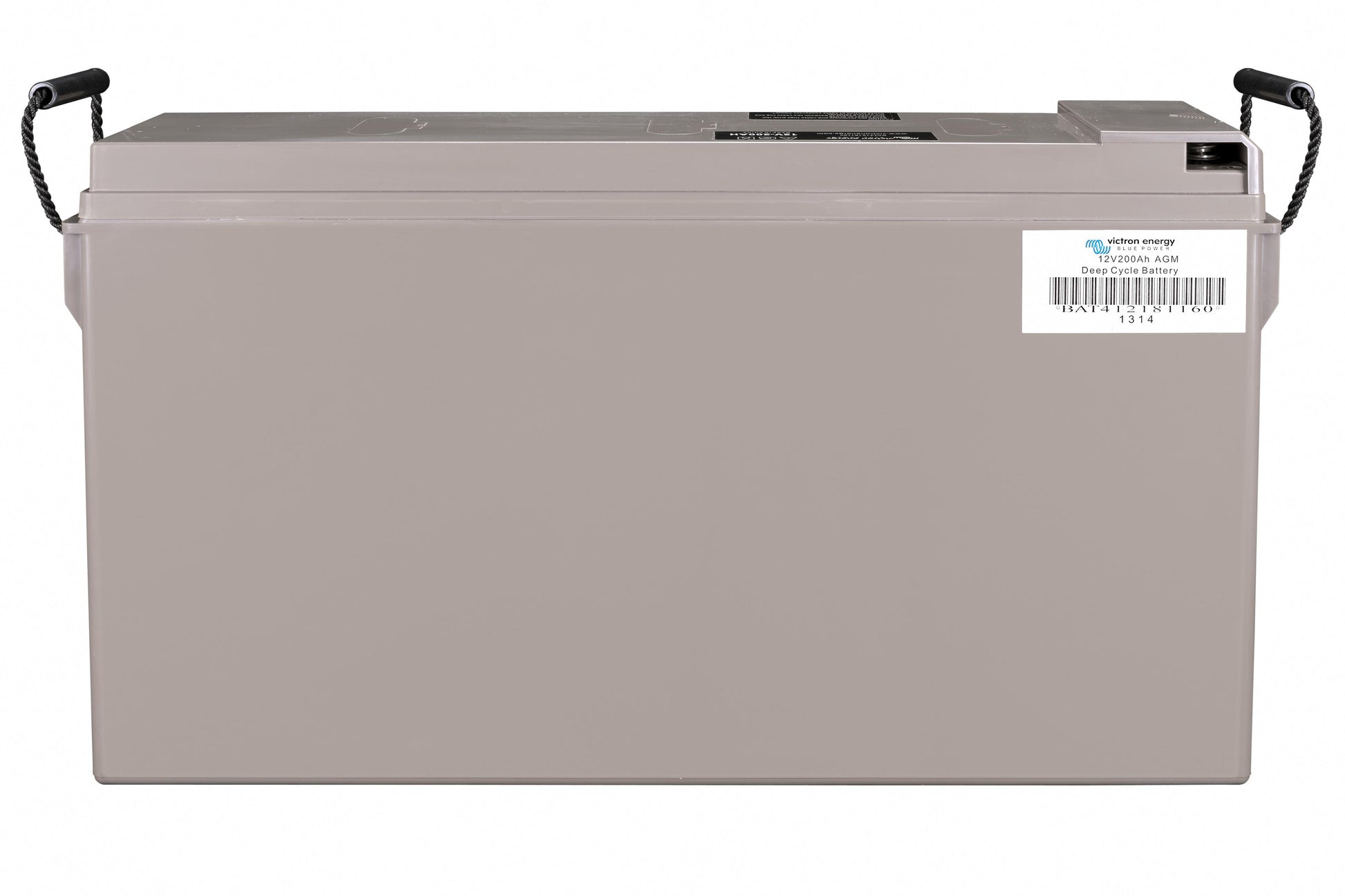

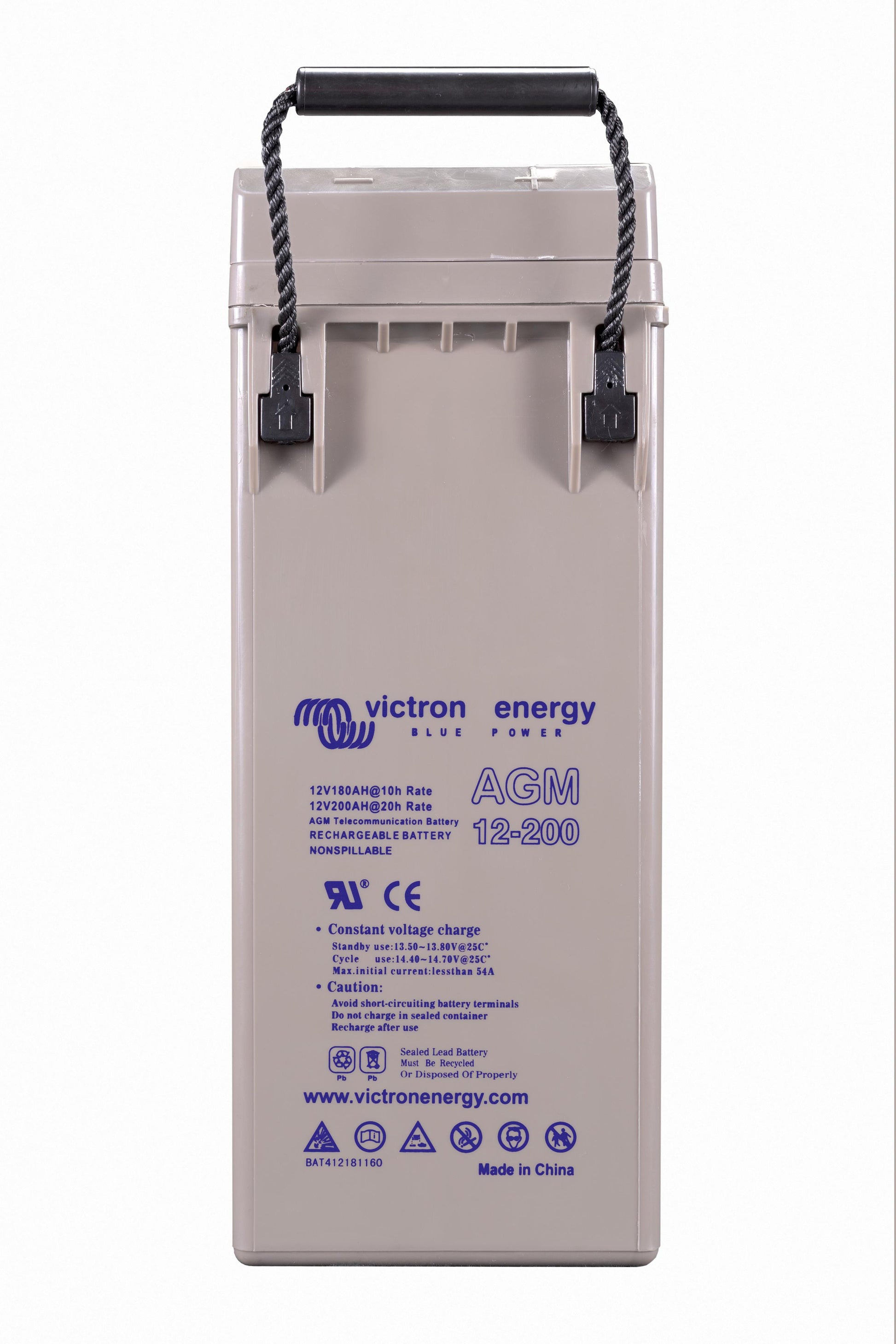

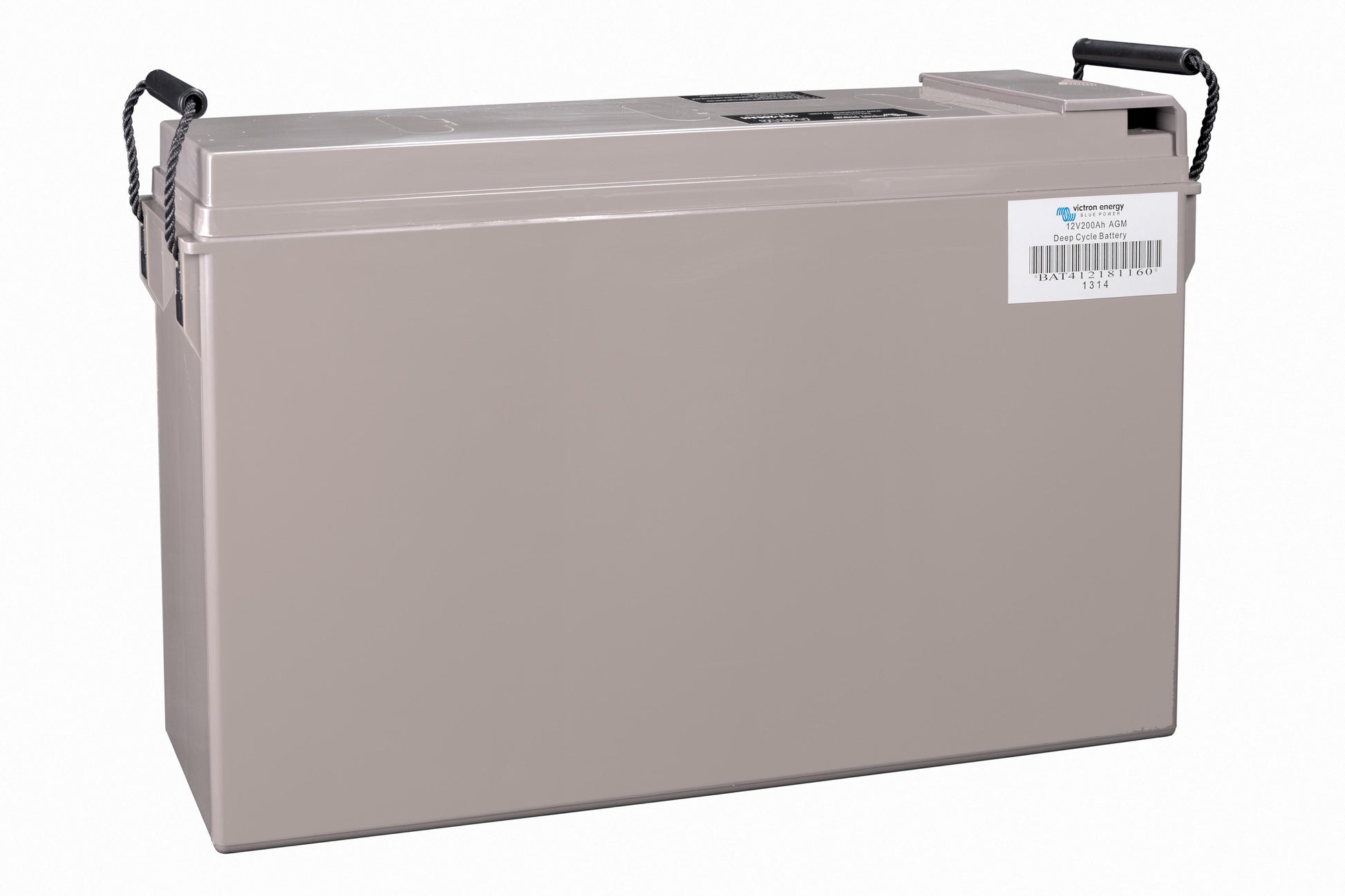

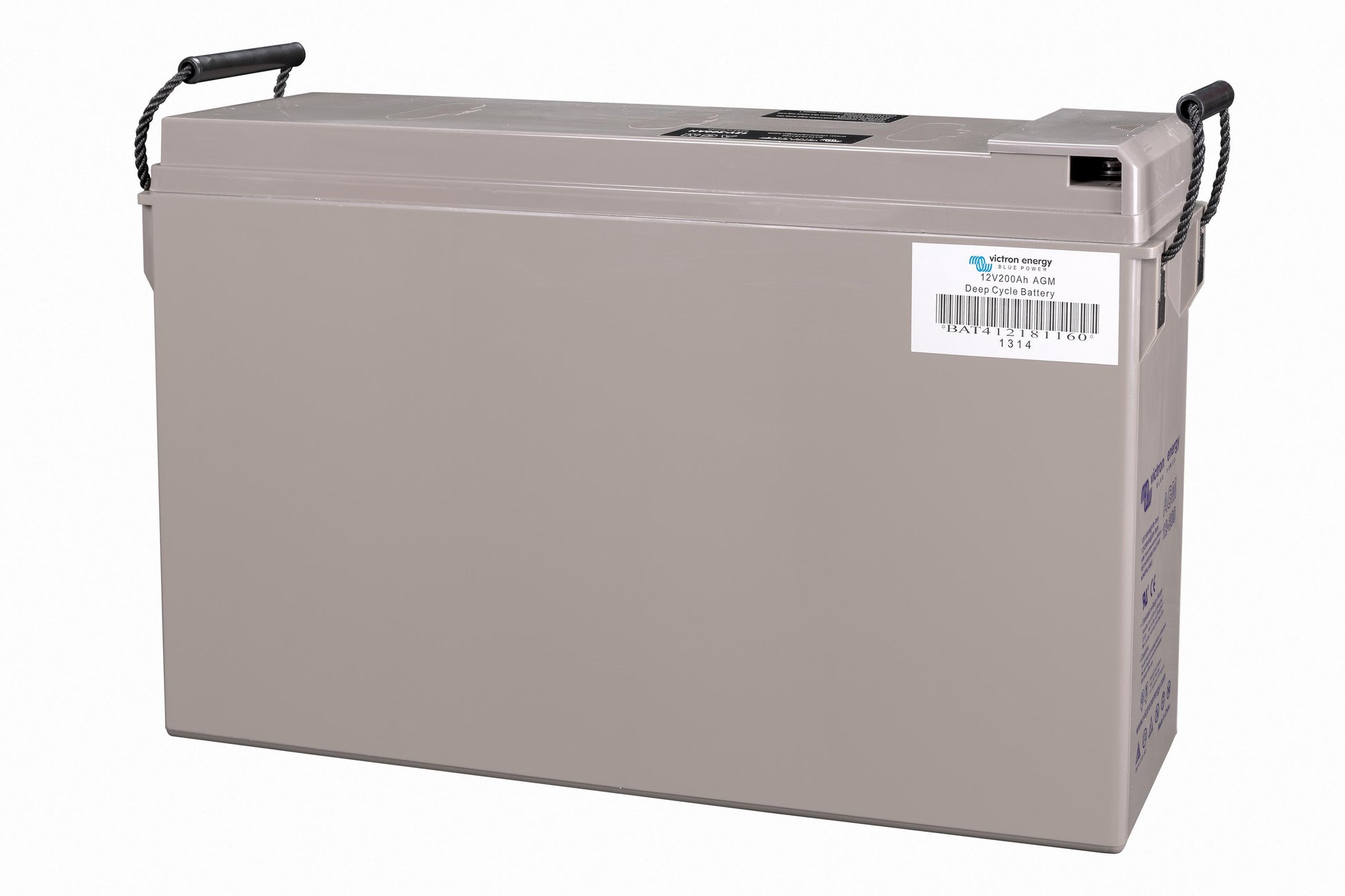

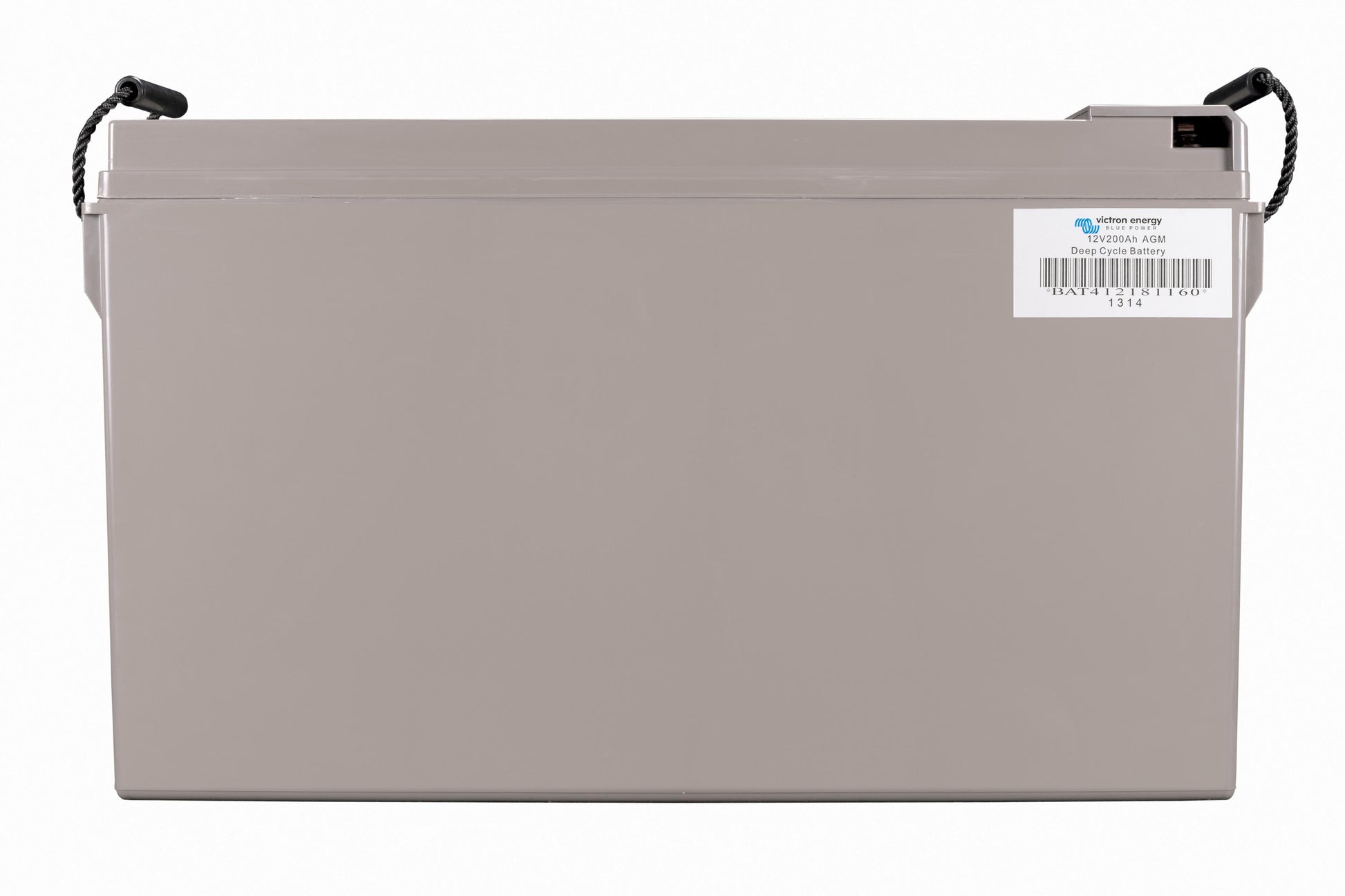

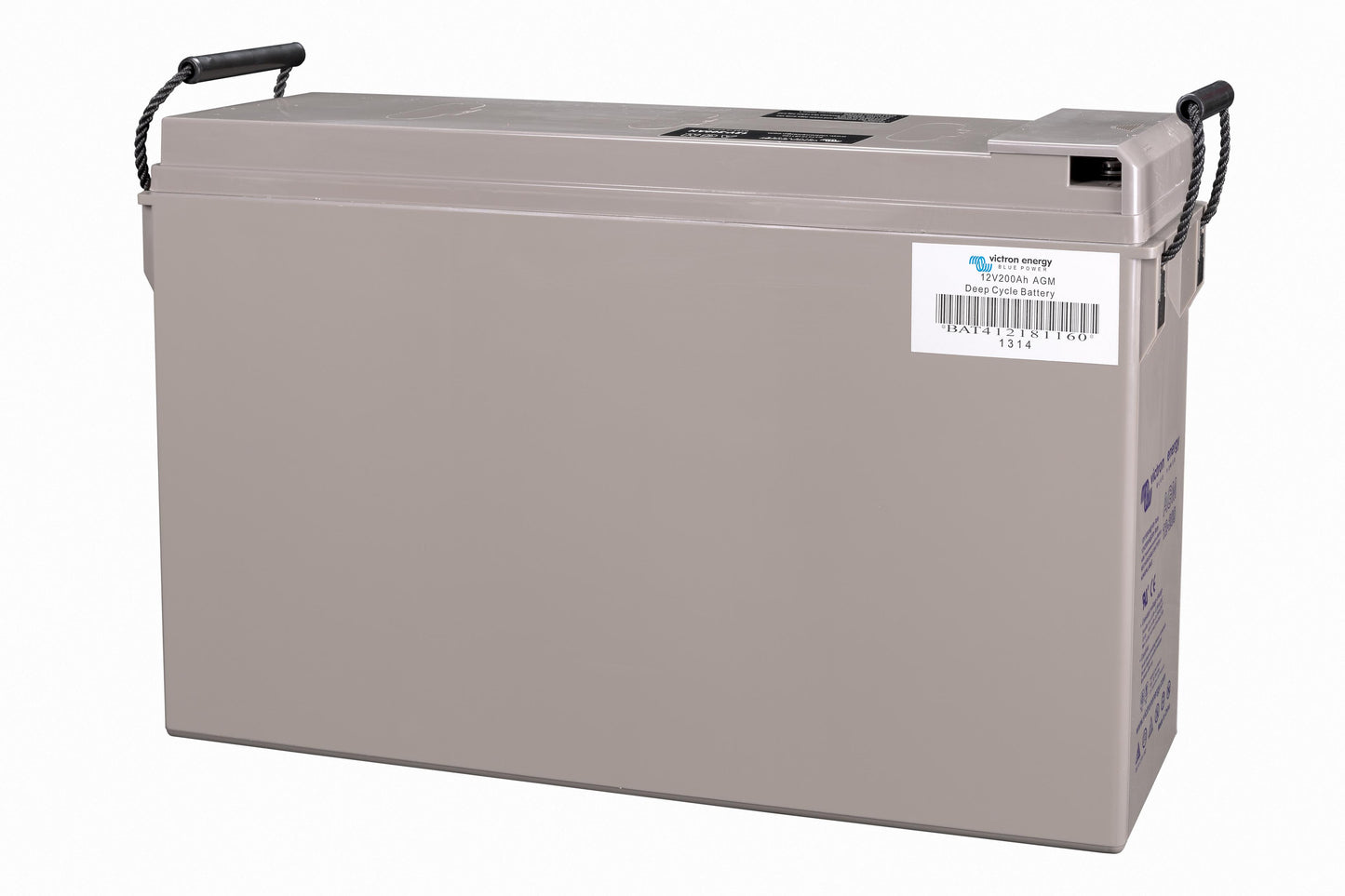

Victron 12V/200Ah AGM Telecom Battery (M8)

The Victron 12V/200Ah AGM Telecom Battery (M8) is a heavy-duty, deep cycle absorbent glass mat battery engineered for use in professional telecom and backup power systems. With a nominal capacity of 200Ah and a short-circuit current rating of 6000A, it is built to deliver reliable standby and cyclic power in rack-mounted installations, off-grid solar systems, marine applications, and vehicles where floor space is limited and front-access terminals are a practical necessity.

Originally designed for the demanding requirements of telecom infrastructure, the battery's narrow footprint and front-facing M8 terminal layout make it exceptionally well suited to rack systems where side or top access is restricted. The same form factor that makes it ideal for telecom cabinets also translates directly to space-saving advantages on board boats, RVs, and commercial vehicles — allowing large capacity to be installed in tight spaces that would not accommodate conventional battery formats.

AGM technology — Absorbent Glass Mat — holds the electrolyte absorbed within a glass-fibre mat between the plates, eliminating free liquid and making the battery completely sealed and valve-regulated. This construction enables the battery to accept very high charge and discharge currents, contributing to the low internal resistance that makes it particularly capable under heavy surge loads such as inverters, thrusters, and winches. The AGM design also allows installation in virtually any orientation without risk of spillage.

Constructed with lead-calcium grids and high-purity materials, the Victron AGM Telecom battery exhibits a self-discharge rate of less than 2% per month at 20°C — allowing extended shelf life of up to one year without recharge and reducing maintenance requirements in standby and backup applications. The flat copper M8 drilled terminals ensure the best possible connection contact and eliminate the need for battery terminal adaptors, simplifying installation and ensuring a secure, low-resistance connection.

With a float design life of 12 years at 20°C and a cycle design life of up to 1800 cycles at 30% depth of discharge, the Victron AGM Telecom battery delivers long-term value in both standby and cyclic applications. Compliant with CE and UL specifications, housed in an ABS fireproof container, and backed by Victron's worldwide warranty, it is engineered to perform reliably in professional energy systems for years of service.

Features

Front-Access Terminal Layout — Ideal for Rack and Space-Constrained Installations

The front-facing M8 flat copper terminal layout allows full access to battery connections from the front of the unit, making the battery ideal for rack-mounted telecom systems and any installation where side or top access is restricted. The same narrow footprint provides significant space savings in marine, RV, and vehicle applications.

AGM Technology — Sealed, Valve-Regulated, Spill-Proof

Absorbent Glass Mat construction holds the electrolyte within a glass-fibre mat between the plates, eliminating free liquid and producing a completely sealed, maintenance-free battery. This enables installation in virtually any orientation, with no risk of acid spillage and no requirement for regular electrolyte top-up.

Low Internal Resistance — High Charge and Discharge Acceptance

The AGM construction delivers very low internal resistance, allowing the battery to accept and deliver very high charge and discharge currents. With a short-circuit current rating of 6000A and a cold cranking capability of 1800A at -18°C, it is well suited to high-demand applications including inverters, bow thrusters, and electric winches.

Long Float Design Life — 12 Years at 20°C

Built with lead-calcium grids and high-purity materials, the Victron AGM Telecom battery is rated for a float design life of 12 years at 20°C, making it a cost-effective long-term solution for standby power, UPS, and backup applications where battery replacement frequency is a critical operational consideration.

High Cyclic Life Capability

The battery is rated for up to 500 cycles at 80% depth of discharge, 750 cycles at 50% DoD, and 1800 cycles at 30% DoD — providing genuine deep cycle durability for applications that involve regular charge and discharge cycling alongside standby use.

Very Low Self-Discharge

A self-discharge rate of less than 2% per month at 20°C — a direct result of the lead-calcium grid construction and high-purity materials — allows the battery to be stored for up to one year without recharge, significantly reducing maintenance requirements in seasonal, standby, and backup power installations.

M8 Flat Copper Terminals

The drilled flat copper M8 terminals provide the best possible electrical connection contact and eliminate the need for battery terminal adaptors or converters. This simplifies installation, reduces connection resistance, and ensures a secure and reliable long-term connection in professional system builds.

CE and UL Compliant — ABS Fireproof Container

The battery is housed in an ABS fireproof container and is fully compliant with both CE and UL specifications, meeting the safety and regulatory requirements for professional telecom, marine, and off-grid energy system installations across international markets.

Specifications

Datasheets and Manuals

Datasheet

Product Manual
