Victron Battery Indicator Panel

The Victron Battery Indicator Panel is a compact and easy-to-read battery status accessory designed for use with Victron Blue Smart IP65 and Blue Power IP65 chargers. Providing an instant visual indication of battery state of charge via a three-colour LED display, it allows users to assess battery health at a glance without needing to connect a charger or battery monitor.

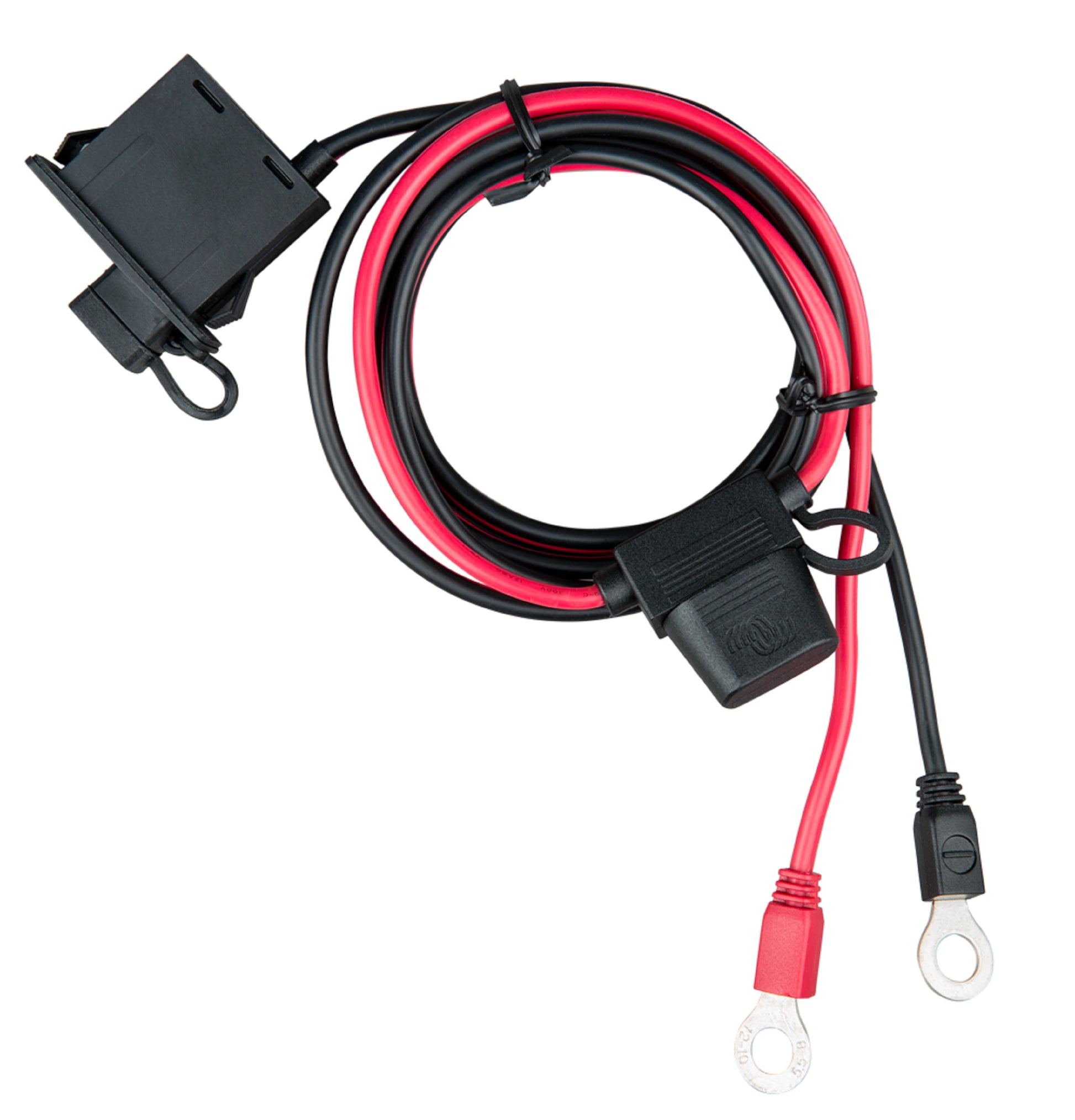

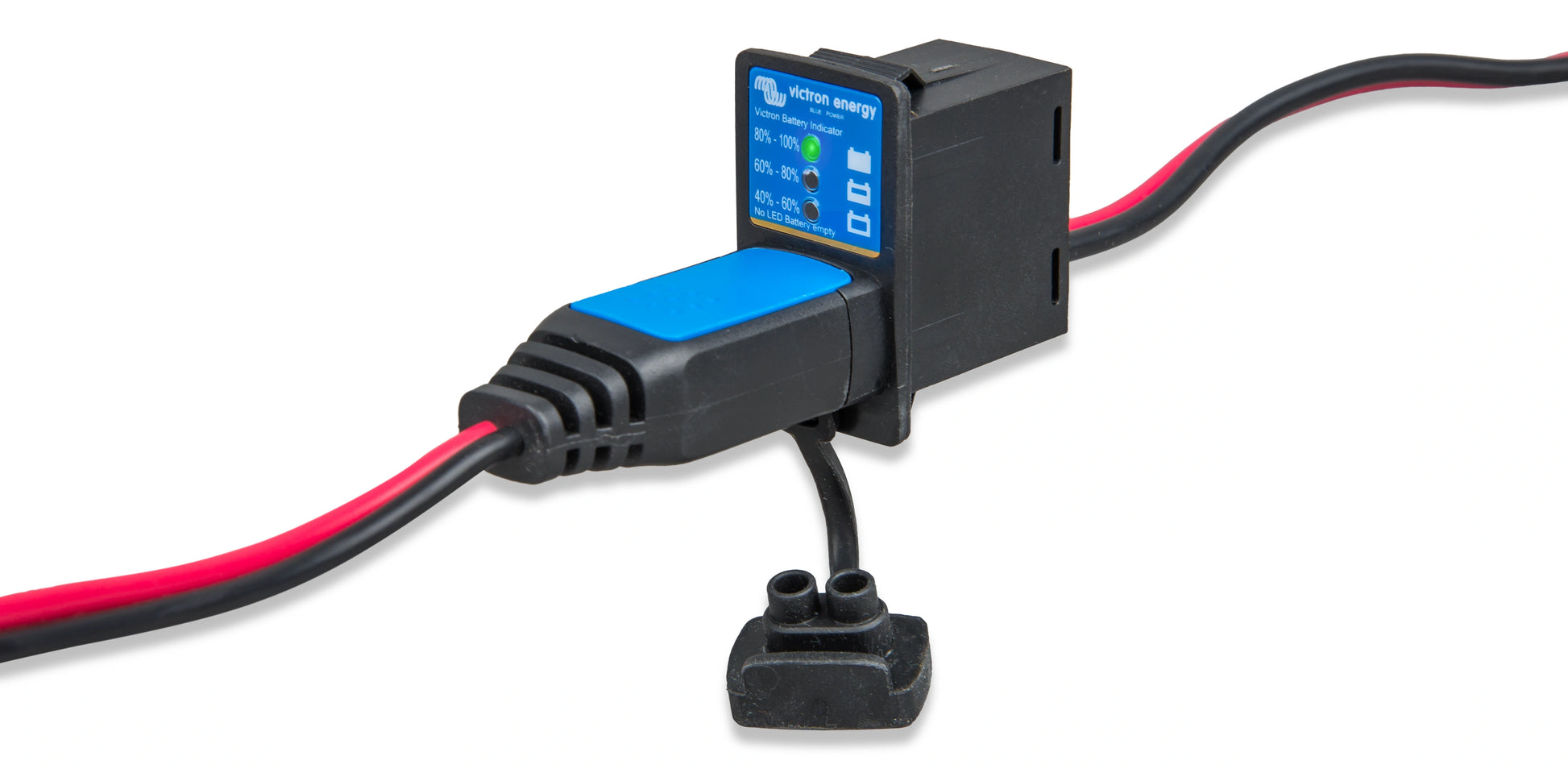

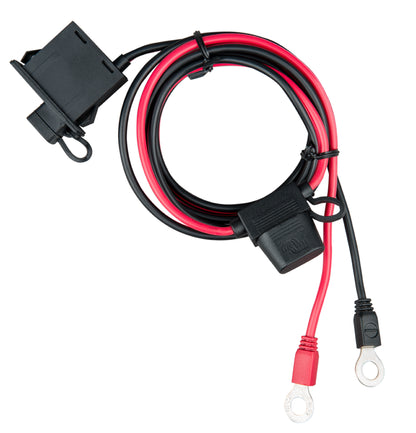

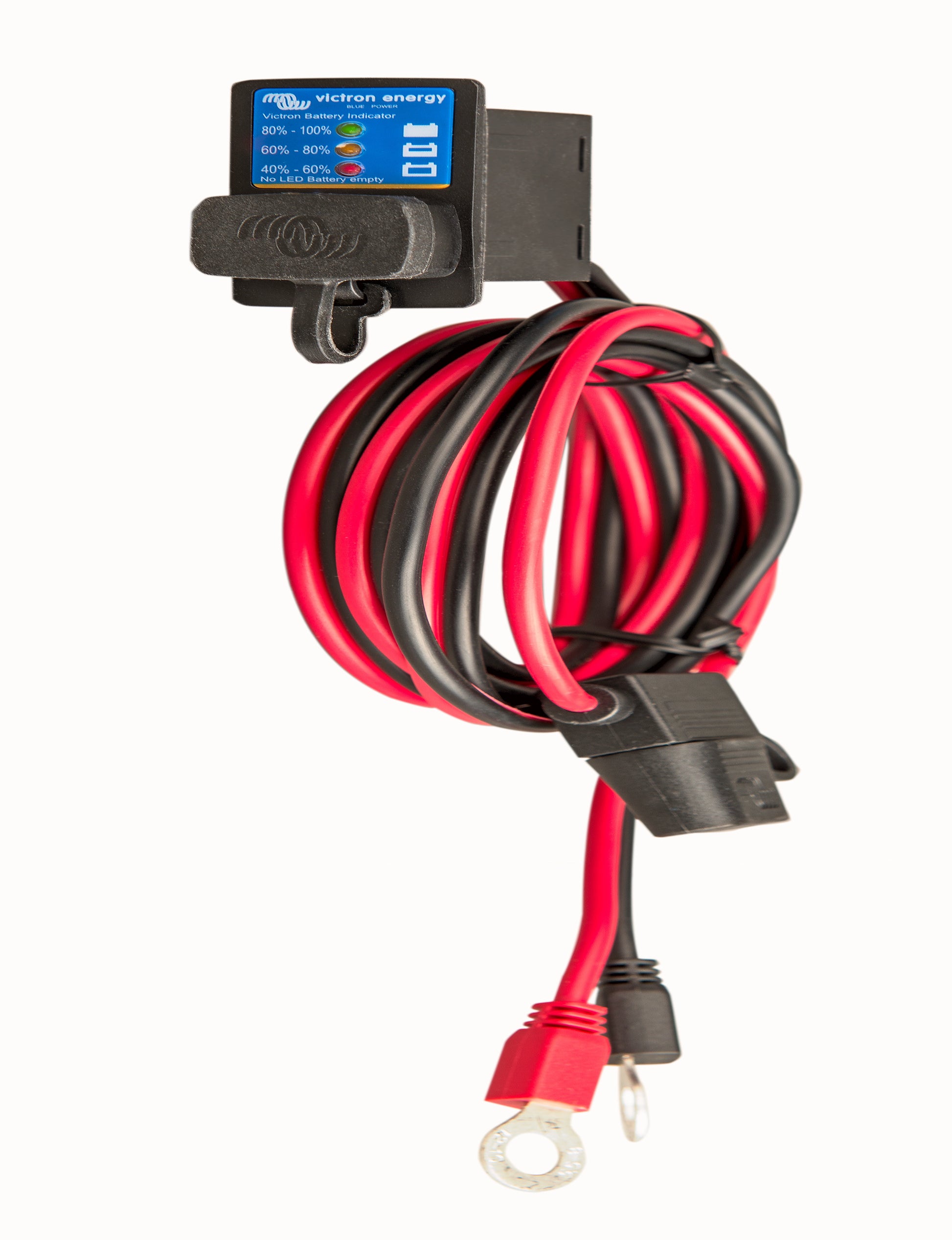

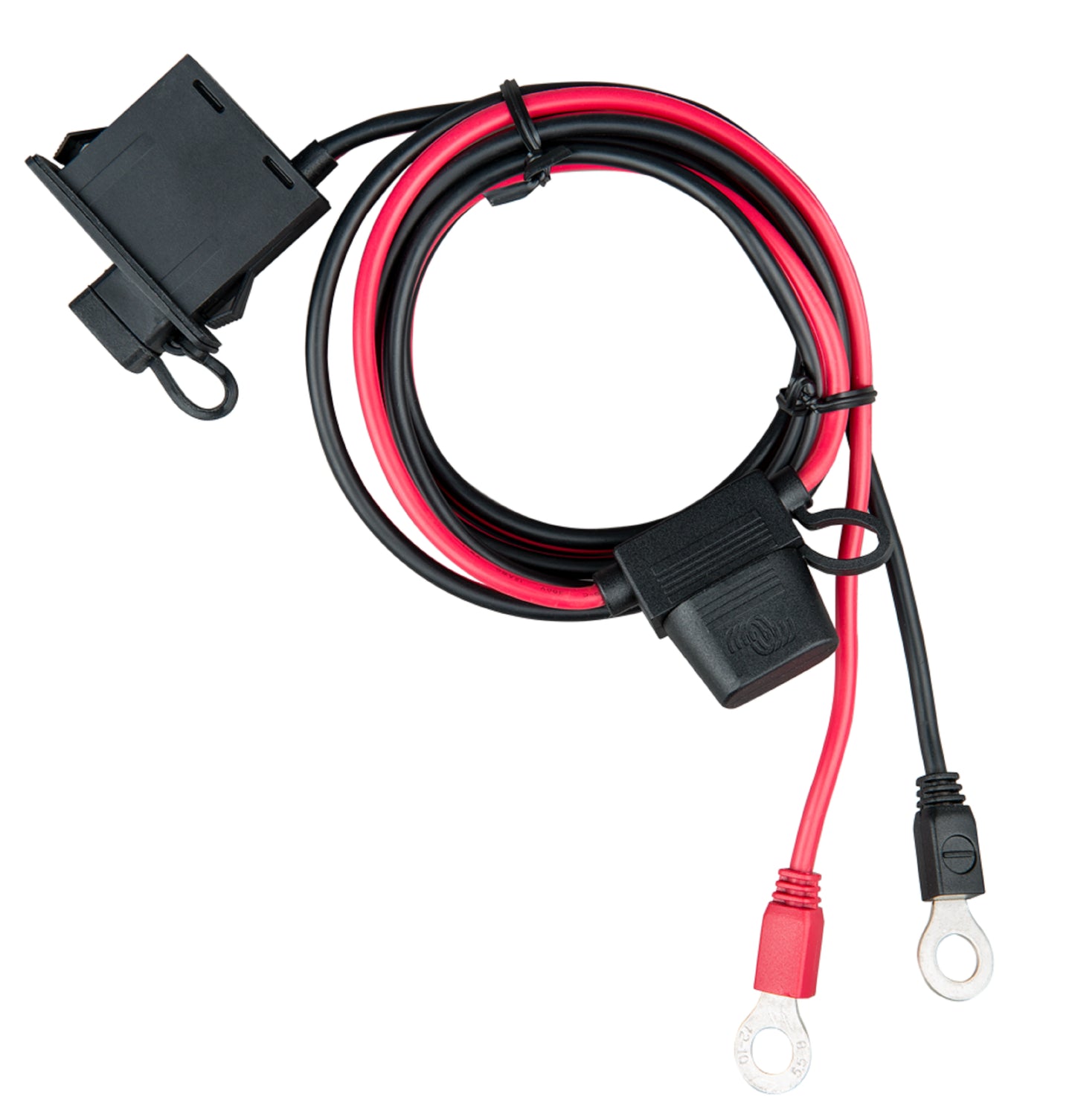

The panel connects directly to a 12V lead-acid battery — compatible with flooded, GEL, and AGM types — using M8 eyelet connectors on a 1.5-metre cable fitted with a 30A ATO fuse on the positive lead. A female accessory socket on the panel also accepts the output connector of any compatible Victron Blue Smart IP65 charger, allowing the charger to be connected and disconnected at the panel rather than directly at the battery terminals.

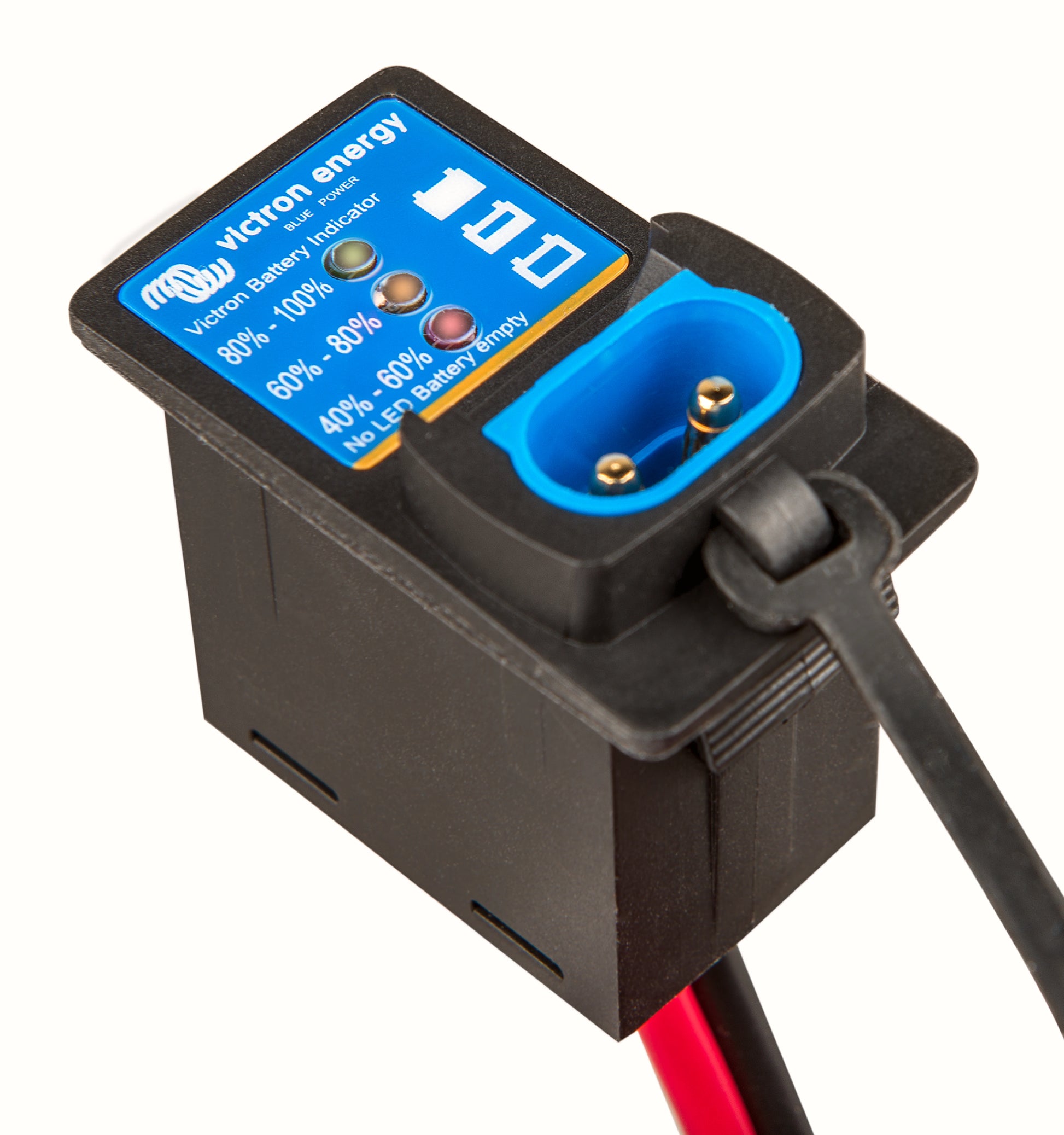

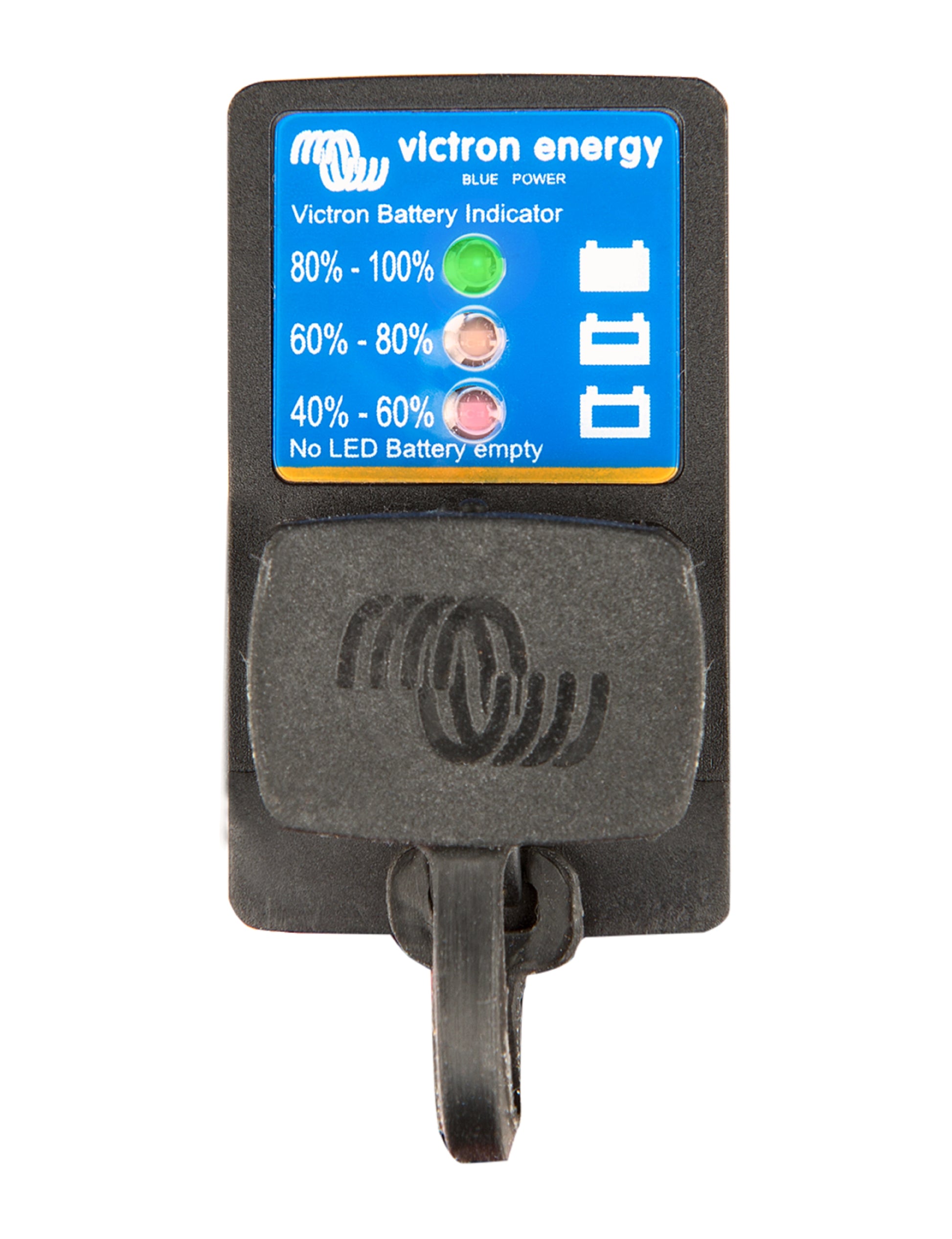

The LED indicator uses a simple colour-coded system: green indicates the battery is 80–100% charged and does not need charging; orange indicates 60–80% charge and that charging is recommended; red indicates 40–60% charge and that the battery needs charging; and no light warns that the battery is below 40% and should be charged immediately to prevent sulfation damage.

Rated to IP65 for dust and water resistance, the panel is suitable for installation in marine, RV, and outdoor environments. It is designed to clip into a standard 39 × 22 mm panel cut-out, providing a clean flush-mounted finish on dashboards and electrical enclosures.

Simple to install and requiring no configuration, the Victron Battery Indicator Panel is an affordable and practical addition to any 12V lead-acid battery installation using a compatible Victron IP65 charger.

Features

Three-Colour LED State of Charge Display

A green, orange, and red LED indicator provides an immediate visual readout of battery state of charge across four charge bands — from fully charged (80–100%) down to critically low (below 40%) — making battery status easy to assess at a glance.

Compatible with Blue Smart and Blue Power IP65 Chargers

Designed specifically as an accessory for Victron's Blue Smart IP65 and Blue Power IP65 charger ranges, the panel includes a female accessory socket that accepts the charger's output connector for convenient charge point management.

M8 Eyelet Battery Connection

Connects directly to the battery via M8 eyelet connectors on a 1.5-metre, AWG12 cable, providing a secure and reliable low-resistance connection to the battery terminals.

30A ATO Fuse Protection

A 30A ATO fuseholder on the positive cable protects the circuit from overcurrent, with a standard blade fuse that is easy to inspect and replace in the field.

IP65 Weather Protection

Rated IP65 for protection against dust ingress and water jets, making the panel suitable for use in demanding environments including marine, recreational vehicle, and outdoor off-grid installations.

Flush Panel Mount Design

Clips neatly into a standard 39 × 22 mm panel cut-out for a clean, professional flush-mounted installation on dashboards, switch panels, and electrical enclosures.

Ultra-Low Current Drain

With a back current drain of just 0.9 mA, the Battery Indicator Panel places negligible load on the battery when not in use, ensuring it does not contribute to self-discharge over time.

Suitable for Flooded, GEL, and AGM Batteries

Compatible with all common 12V lead-acid battery types — flooded, GEL, and AGM — though not recommended for use with lithium (LFP) batteries.
