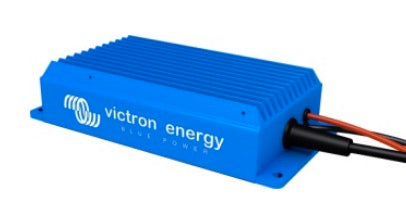

Victron Blue Power IP67 Waterproof 12/24 V Battery Chargers (120VAC)

Victron Blue Power IP67 Waterproof Battery Chargers (90-130VAC, 40-60Hz Input)

Single battery output connection, pre-wired with Fuse and terminated with 3/8' ring crimps for quick and easy installation.

Completely encapsulated: waterproof, shockproof and ignition protected

Water, oil or dirt will not damage the Blue Power Charger. The case is made of cast aluminum and the electronics are molded in resin.

Protected against overheating

Can be used in a hot environment such as a machine room. Output current will reduce as temperature increases up to 140°F, but the Blue Power Charger will not fail.

Automatic three stage charging

Once the absorption voltage has been reached, the Blue Power charger will switch to float charge after the charge current has reduced to a low break point current (see specifications), or after a 20 hour absorption period. The battery is therefore effectively protected against overcharging and can remain permanently connected to the charger. The charger will automatically reset and start a new charge cycle after interruption of the AC supply.

Two LEDs for status indication

Yellow LED: battery being charged

Green LED: float charge, the battery is charged

Victron IP67 Information:
	Datasheet-Blue-Smart-IP67-Charger-120VAC-EN.pdf (victronenergy.com)
