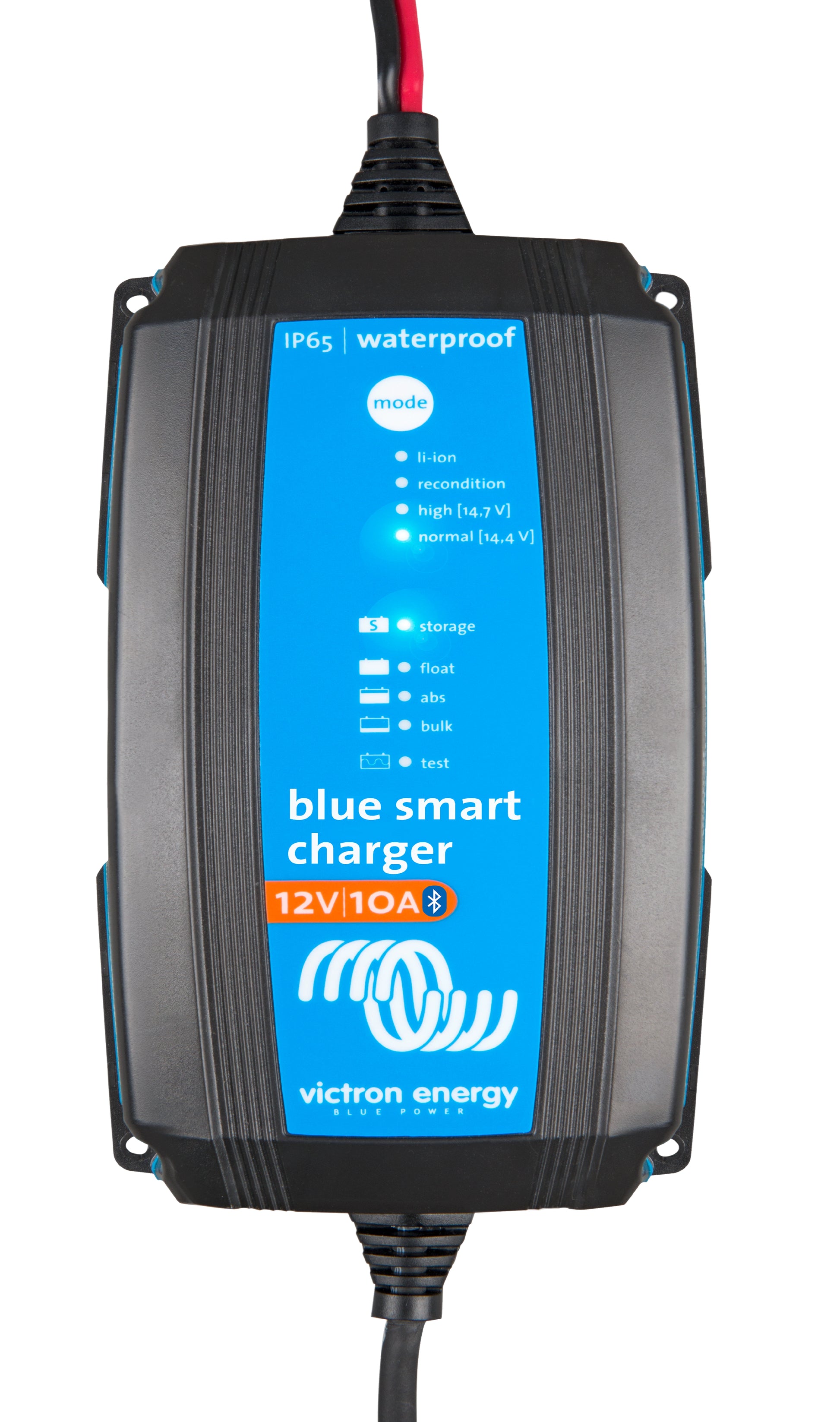

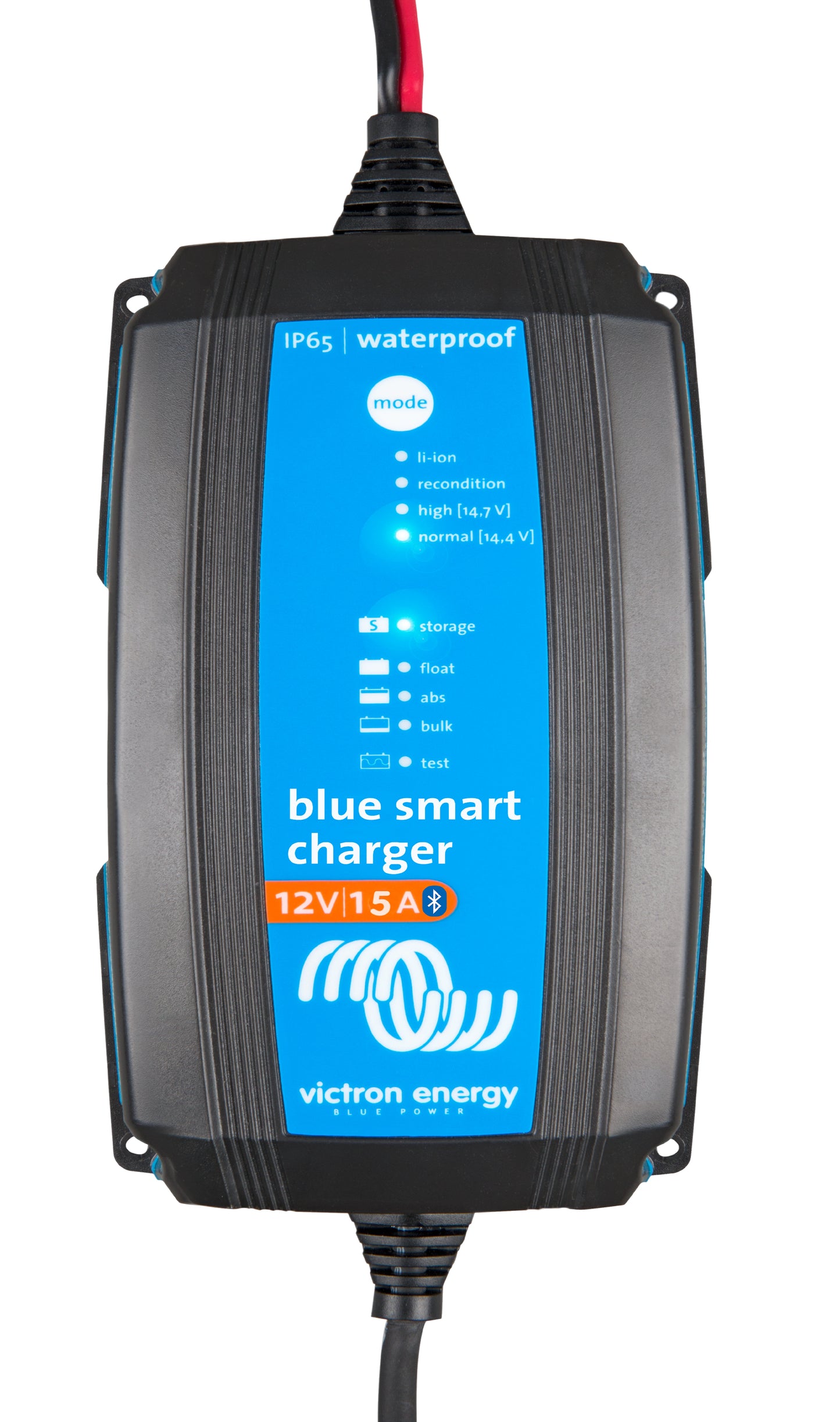

Victron Blue Smart IP65 Battery Charger

The Victron Blue Smart IP65 Battery Charger is a professional-grade, Bluetooth-equipped smart charger designed for 12V and 24V lead-acid and LiFePO₄ battery banks in workshop, automotive, marine, RV, and off-grid applications. Available in three 120VAC variants for the North American market — 12V/10A, 12V/15A, and 24V/8A — all models feature a seven-step adaptive charging algorithm, built-in Bluetooth for monitoring and configuration via the VictronConnect app, and a fully sealed IP65-rated enclosure that is dust-proof, splash-proof, and ignition-protected.

The seven-step charging algorithm — consisting of Test, Bulk, Absorption, Float, Storage, Storage Refresh, and optional Recondition phases — gets the best out of every battery type, automatically adapting the charge process based on battery condition, charge history, and ambient temperature. Temperature-compensated charging (16 mV/°C for 12V models, 32 mV/°C for 24V models) adjusts the charge voltage automatically based on measured ambient temperature — eliminating the need for special settings in hot or cold environments, and ensuring accurate charging down to −40°C and up to +60°C.

A unique recovery function allows the Blue Smart IP65 to recharge deeply discharged batteries that have dropped to 0V — force-feeding a low current to recover cells that most other chargers would fail to recognise. Li-ion (LiFePO₄) mode uses a dedicated algorithm with automatic under-voltage protection reset, and Low Current mode halves the charge current for smaller batteries (3A for the 10A model, 4A for the 15A model, 3A for the 24V/8A model). The charger can also be used as a DC power supply at the absorption voltage level when no battery is connected.

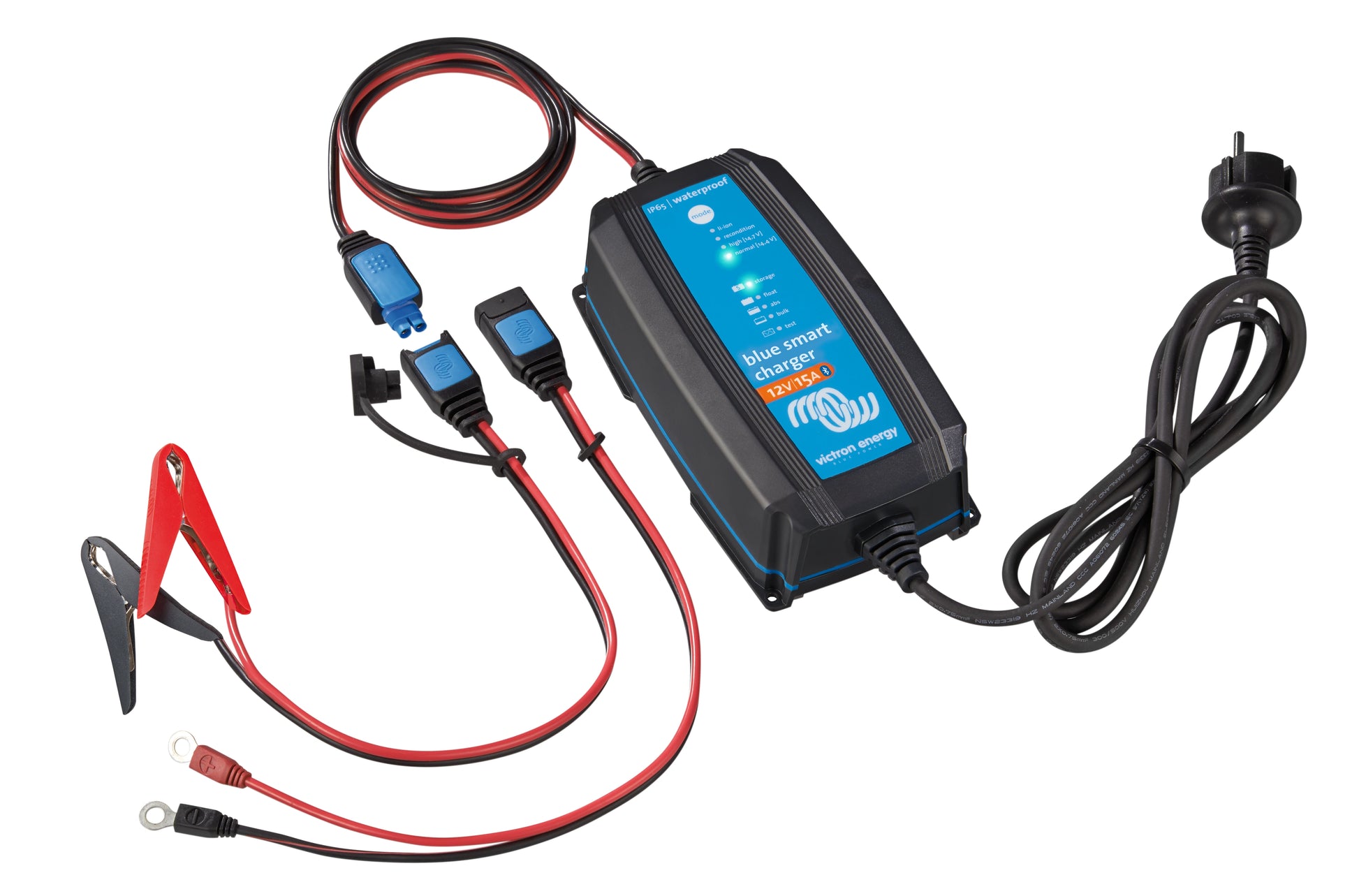

All three models connect to the battery via a 1.5-metre output cable supplied with both M8 eyelet connectors and a Battery Indicator eyelet M8, and to the mains via a 1.8-metre cable with a US NEMA 1-15 plug. M8 eyelets and a 2-metre extension cable are included in the box. Optional accessories include crocodile clamps, fused clamps, fused M6/M8 eyelets, an Autoplug, Battery Indicator Panel, carry case, wall mount, and rubber bumper.

Features

Seven-Step Adaptive Charging Algorithm

The full seven-step algorithm — Test, Bulk, Absorption, Float, Storage, Storage Refresh, and optional Recondition — optimises every charge cycle for maximum battery health and longevity, automatically adapting to battery condition and ambient temperature across all supported battery types.

Bluetooth Smart with VictronConnect App

Built-in Bluetooth Smart pairs wirelessly with the VictronConnect app on iOS and Android, providing real-time readout of charge voltage and current, full charger configuration including battery type, charge algorithm, and expert mode settings, and live charge phase status — all from a smartphone without any additional hardware.

Temperature-Compensated Charging

Ambient temperature is measured during the Test phase and throughout the charge cycle, with charge voltage automatically adjusted at 16 mV/°C (12V) or 32 mV/°C (24V) — ensuring optimal charge voltage in both hot and cold environments without manual intervention. Temperature compensation is available for all lead-acid modes and disabled in Li-ion mode.

Recovery of Fully Discharged 'Dead' Batteries

Unlike most chargers, the Blue Smart IP65 will attempt to recharge a battery that has discharged to 0V by force-feeding a low current — resuming normal charging once sufficient terminal voltage has developed. This is particularly valuable for LiFePO₄ batteries with internal BMS units that require charge current to reactivate the BMS from a fully discharged state.

Li-ion (LiFePO₄) Battery Mode

A dedicated Li-ion charging algorithm with specific absorption, float (disabled), and storage voltages — and automatic under-voltage protection reset — ensures correct and safe charging of LiFePO₄ batteries without overcharging or float voltage stress on lithium cells.

Low Current Mode for Smaller Batteries

Low Current mode reduces the charge current to approximately 30% of the rated output (3A for the 10A model, 4A for the 15A model, 3A for the 24V/8A model), making these chargers suitable for smaller batteries that would be stressed by the full rated charge current — selectable via the VictronConnect app.

Storage Mode — Reduces Battery Corrosion

After 48 hours in Float, the charger automatically transitions to Storage mode — reducing the charge voltage below the float level to minimise grid corrosion on positive plates during prolonged storage. A periodic Storage Refresh cycle ensures the battery remains fully charged throughout the storage period.

IP65 Sealed Enclosure — Dust, Water, and Ignition Protected

The fully sealed IP65 enclosure is protected against dust ingress and water splashing from any direction, and is ignition-protected — making it suitable for installation near fuel vapours in marine engine rooms, fuel lockers, and vehicle installations without risk of ignition from the charger electronics.

Specifications

Datasheets and Manuals

Datasheet

Product Manual
