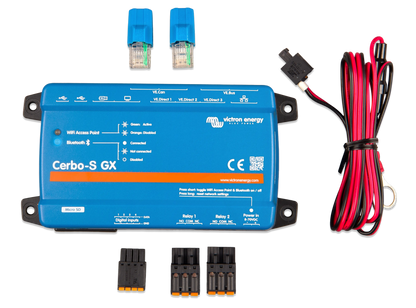

Victron Cerbo-S GX
Discontinued
IVV50239
BPP900450120
This product has been discontinued. We do not expect it to become available again.
Contact us to find a replacement.
Victron Energy Cerbo-S GX has been discontinued and replaced by Victron Energy Cerbo GX MK2.

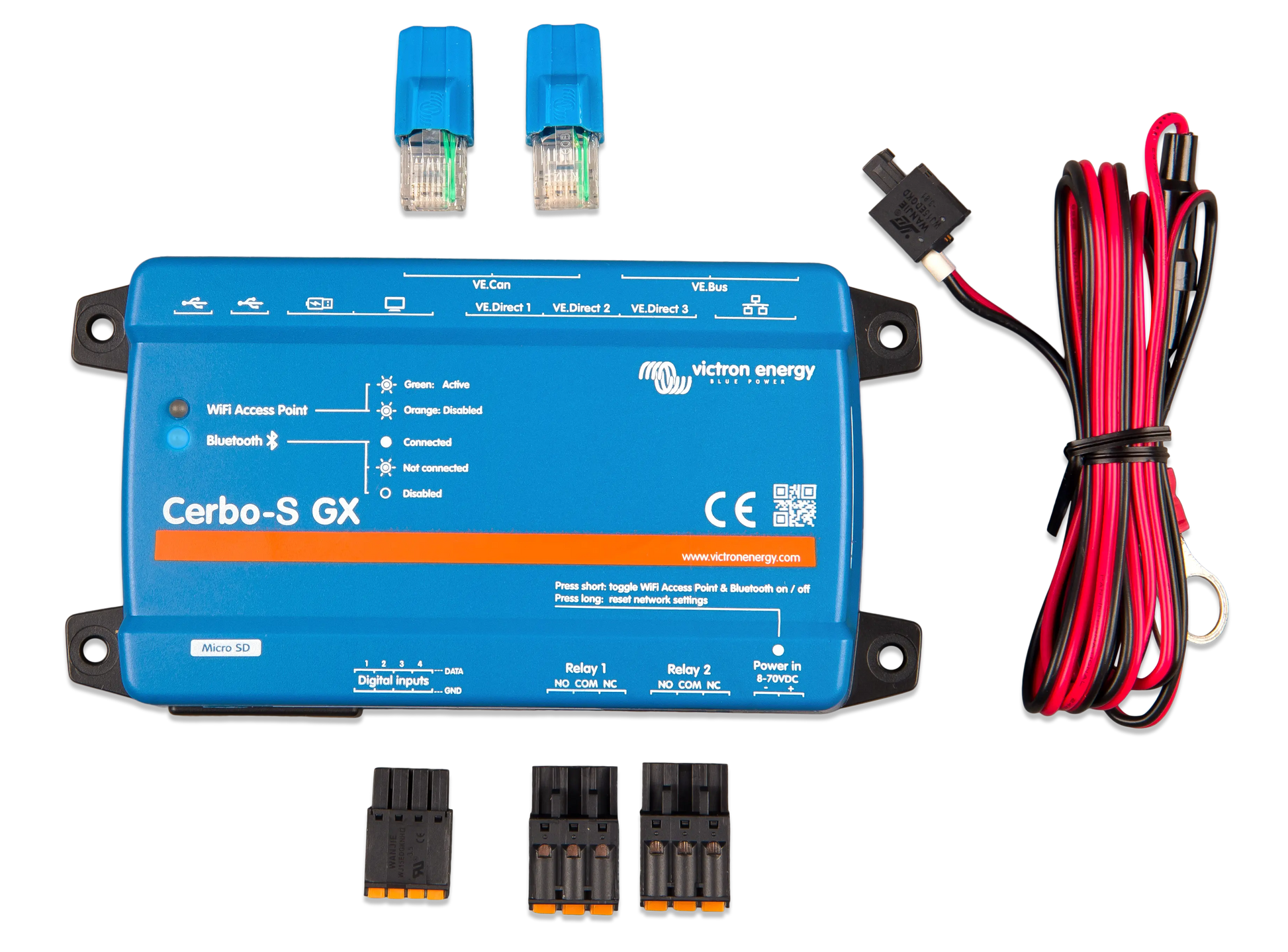

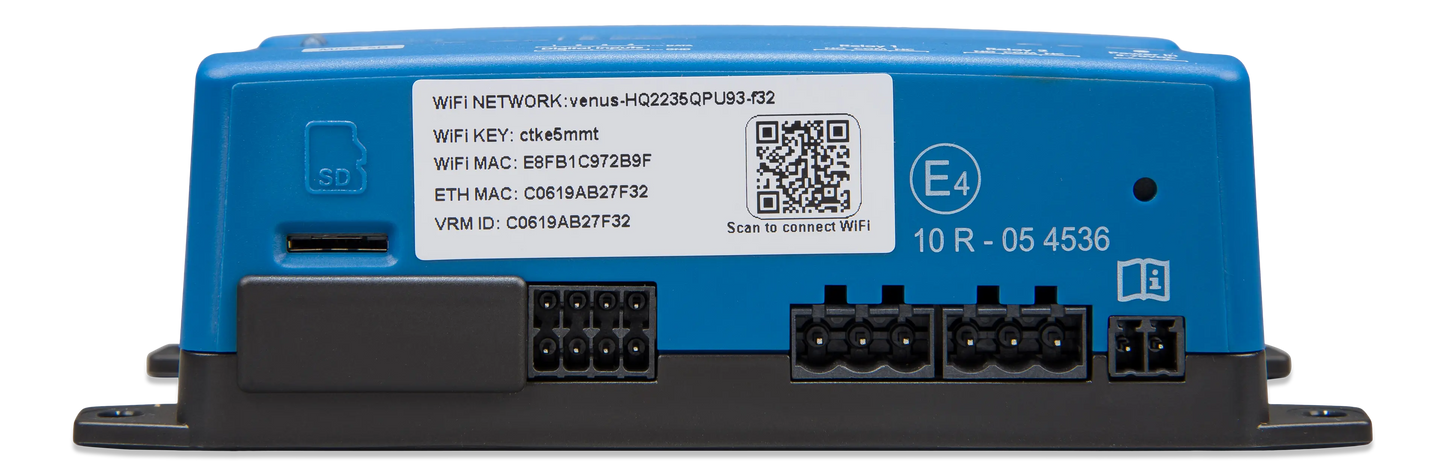

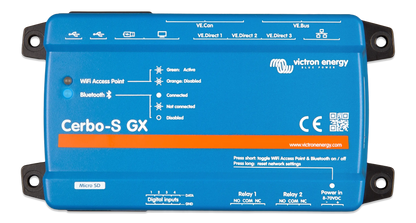

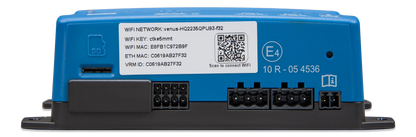

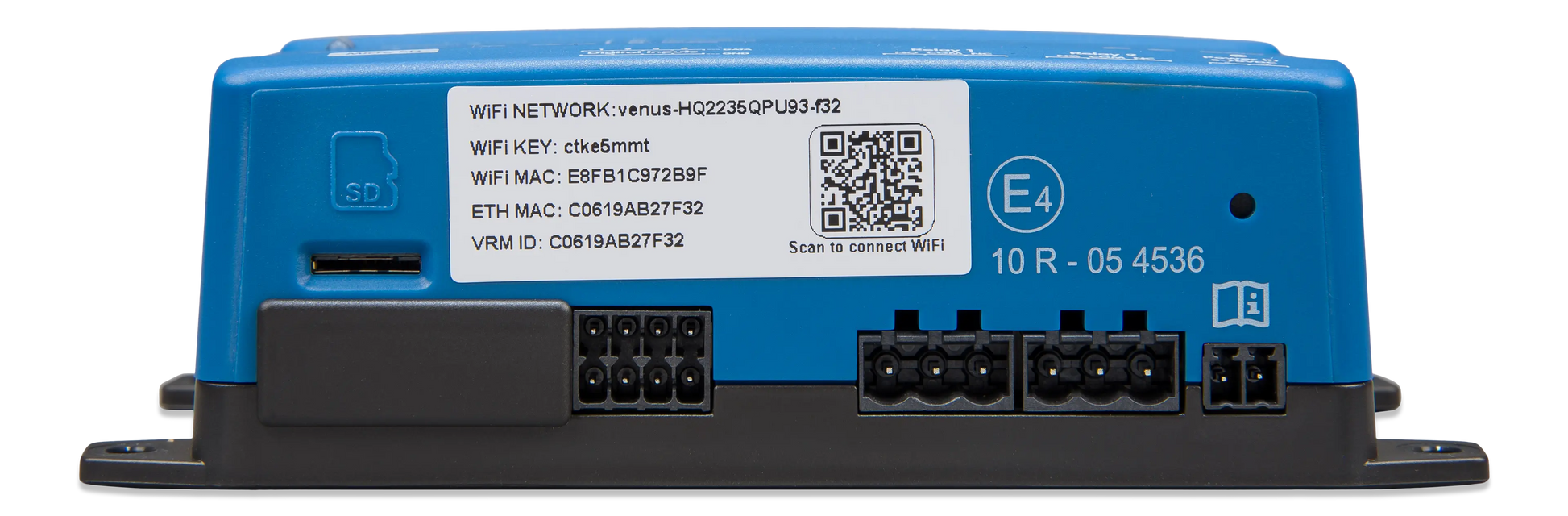

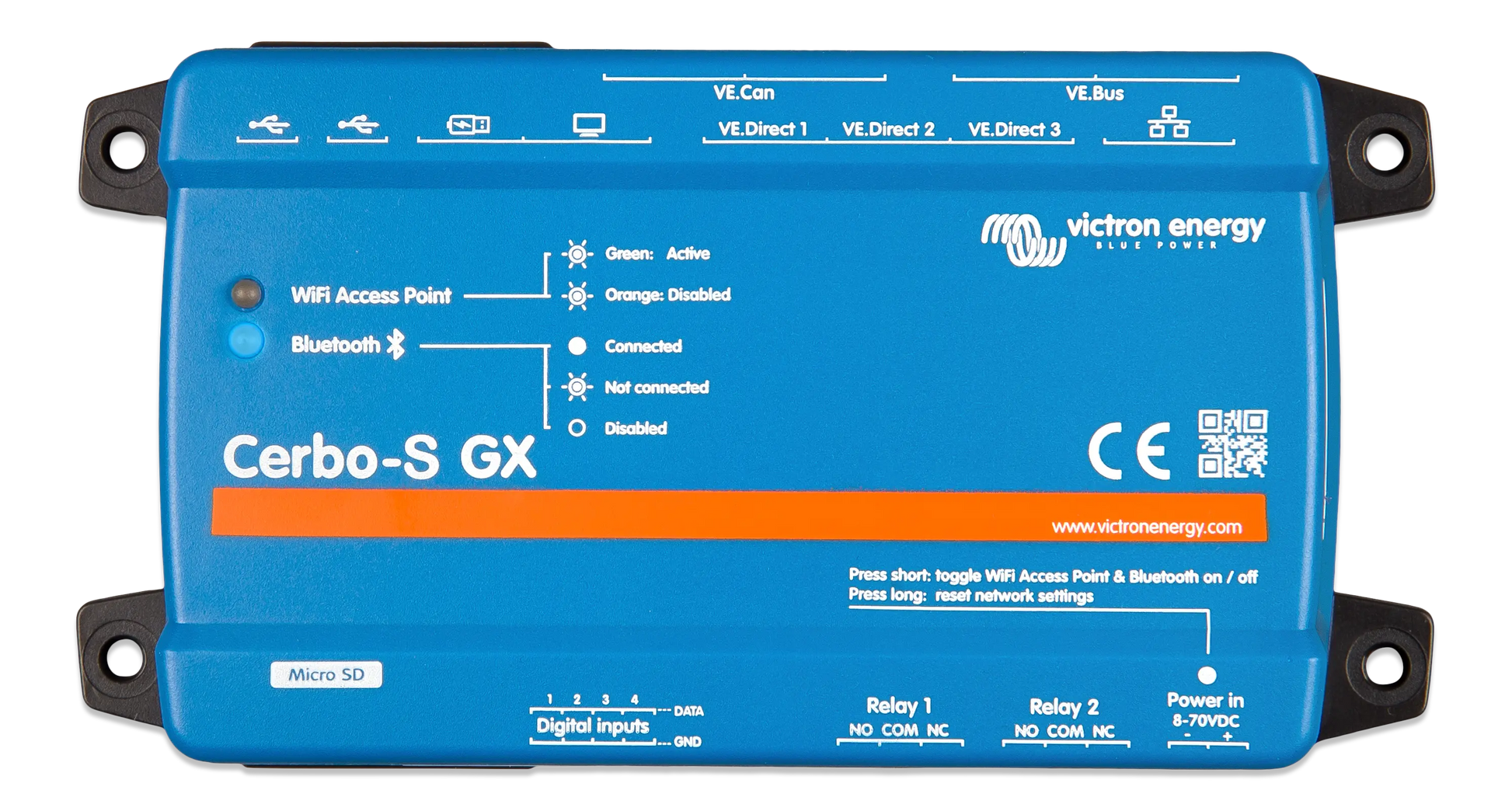

The Victron Cerbo-S GX is a streamlined communication and monitoring device designed to provide centralized control over Victron energy systems. Suitable for marine, RV, and off-grid applications, it connects key system components into a single integrated platform for simple and efficient system management.
The Cerbo-S GX enables real-time monitoring of important system parameters including battery status, power consumption, solar production, and input sources. It also supports essential system control functions, helping users optimize performance and maintain reliable operation across a variety of energy installations.
Designed for dependable integration, the Cerbo-S GX supports a wide range of Victron devices through VE.Direct and VE.Bus connections, along with USB and Ethernet interfaces. Compared to the full Cerbo GX, the Cerbo-S GX offers a more simplified hardware configuration — it does not include BMS-Can port, resistive tank level inputs, or temperature sense inputs.
When paired with the GX Touch 50 or GX Touch 70 displays, the Cerbo-S GX delivers a clean and responsive touchscreen interface for direct system monitoring and control. Remote access and monitoring are available through the Victron Remote Management (VRM) portal and the VictronConnect app.
Compact and efficient, the Cerbo-S GX is a practical solution for users who require reliable system monitoring and control without the expanded connectivity features of the full Cerbo GX.
Features
Real-Time System Monitoring
Clear visibility of key system data including battery levels, power consumption, and solar generation for better energy management decisions.
Remote Access via VRM Portal
Monitor and manage your system remotely through the Victron Remote Management (VRM) portal using any web browser or mobile device.
Essential Connectivity

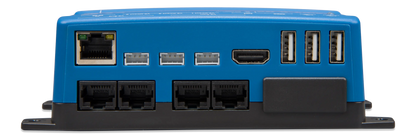

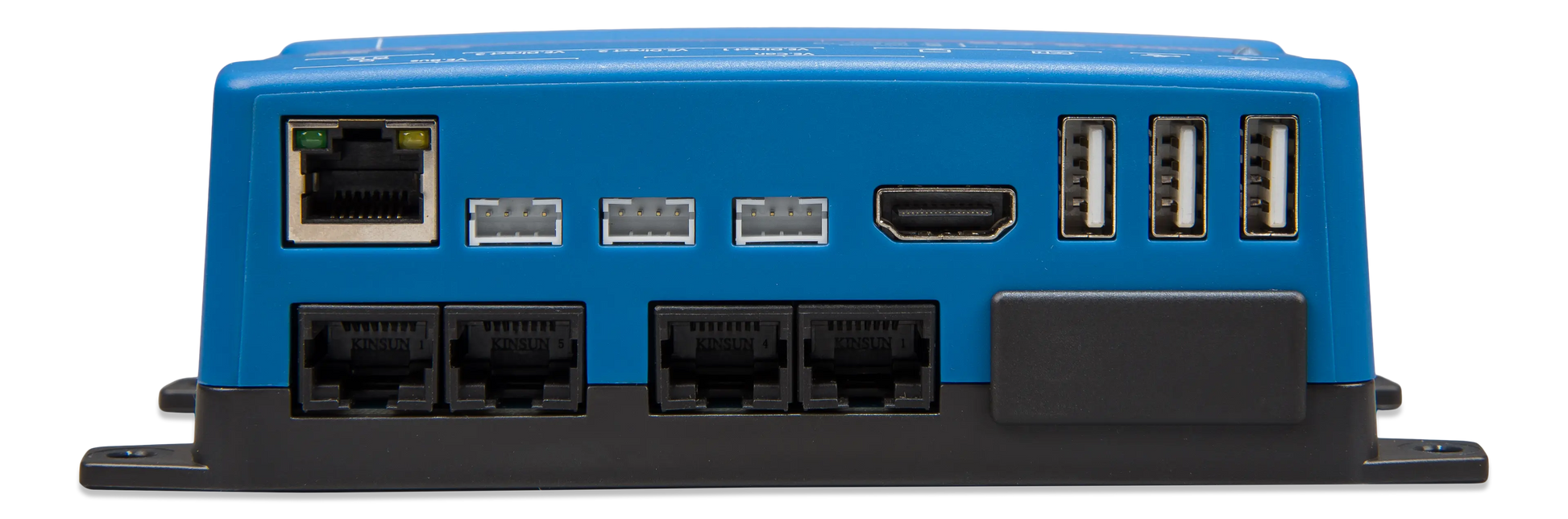

Includes 3x VE.Direct, 1x VE.Bus, 3x USB, Ethernet, WiFi, and Bluetooth connections for stable communication with a wide range of Victron components.
GX Touch Display Compatibility
Compatible with GX Touch 50 and GX Touch 70 displays — offering a user-friendly touchscreen interface with simple single-cable installation.
Generator Auto Start/Stop
Supports programmable generator start and stop functions based on battery levels, load conditions, or time schedules for efficient power management.
Compact and Cost-Effective
A budget-friendly solution for standard energy systems — same core functionality as the Cerbo GX without tank/temperature monitoring inputs.
Easy Installation
Supports wall mounting and DIN rail mounting (with adapter). Designed for quick setup and suitable for marine, RV, and off-grid installations.
VictronConnect App Support
Bluetooth-enabled quick configuration and monitoring via the VictronConnect app — no additional wiring required for initial setup.
Specifications
| Supply voltage | 8–70V DC |
| Power consumption | Approx. 2.5W |
| Mounting | Wall or DIN rail |
| VE.Direct ports | 3 |
| VE.Bus | 2 x RJ45 |
| Ethernet | 1 x RJ45 |
| USB ports | 3 |
| Digital inputs | 4 |
| Relays | 2 |
| Dimensions (h x w x d) | 78 x 154 x 48 mm |
